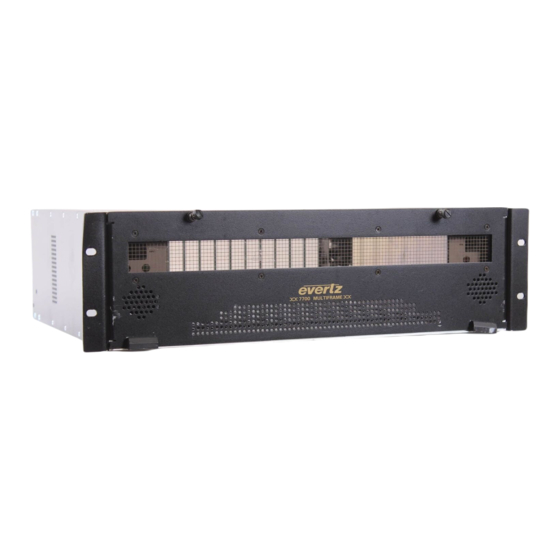

evertz MultiFrame 7700 Manual

Hide thumbs Also See for MultiFrame 7700:

Manual (58 pages)

User manual (32 pages)

Manual (28 pages)

Table of Contents

Quick Links

Download this manual

OVERVIEW ............................................................................................................................1

INSTALLATION .....................................................................................................................2

2.1. VIDEO SIGNAL CONNECTIONS............................................................................................... 2

2.2. AES AUDIO CONNECTIONS (MODEL 7707VAR-3G).............................................................. 3

2.3. AES AUDIO CONNECTIONS (MODEL 7707VAT-U-3G) .......................................................... 3

2.4. OPTICAL SIGNAL CONNECTIONS .......................................................................................... 3

2.5. CARE AND HANDLING OF OPTICAL FIBER........................................................................... 4

SPECIFICATIONS .................................................................................................................5

3.1. OPTICAL INPUT......................................................................................................................... 5

3.2. SERIAL VIDEO OUTPUTS......................................................................................................... 5

3.3. AES AUDIO OUTPUTS .............................................................................................................. 5

3.4. ELECTRICAL ............................................................................................................................. 6

3.6 PHYSICAL (Number of Slots)................................................................................................... 6

STATUS INDICATORS AND DISPLAYS ..............................................................................7

4.1. STATUS INDICATOR LEDS ...................................................................................................... 8

4.2. DOT-MATRIX DISPLAY AND CONTROLS ............................................................................... 8

4.2.1. Display of Warning Status Indications........................................................................... 10

4.2.2. Displaying the Input Video Standard ............................................................................. 10

4.2.3. Displaying the Received Optical Power ........................................................................ 11

4.2.4. Displaying the Status of Input Video Embedded Audio Groups .................................... 11

4.2.5. Displaying the Software Version ................................................................................... 12

4.2.6. Selecting the Output Video Standard ............................................................................ 12

4.2.7. Selecting Output Video Cleaning .................................................................................. 13

3.1.1

Selecting the Output Video when the Signal is Lost ..................................................... 13

4.2.8. Selecting Video Error Detection .................................................................................... 13

4.2.9. Selecting Audio De-embedding Groups ........................................................................ 14

4.2.10. Selecting Balanced or Unbalanced Audio ..................................................................... 14

4.2.11. Setting the Audio Generation on Loss of Signal ........................................................... 15

4.2.12. Selecting the Headphone Monitoring Jack Channel ..................................................... 15

4.2.13. Setting the Orientation of the Display............................................................................ 16

4.2.14. Selecting the Factory Reset Configuration.................................................................... 16

JUMPER CONTROLS .........................................................................................................17

5.1. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED

BY THE GLOBAL FRAME STATUS ....................................................................................... 17

5.2. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES ............................................. 17

7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver

Revision 1.1

7700 MultiFrame Manual

Table of Contents

Need help?

Do you have a question about the MultiFrame 7700 and is the answer not in the manual?

Questions and answers

Summary of Contents for evertz MultiFrame 7700

Page 1: Table Of Contents
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver TABLE OF CONTENTS OVERVIEW ..........................1 INSTALLATION ........................2 2.1. VIDEO SIGNAL CONNECTIONS....................2 2.2. AES AUDIO CONNECTIONS (MODEL 7707VAR-3G).............. 3 2.3. AES AUDIO CONNECTIONS (MODEL 7707VAT-U-3G) ............3 2.4. OPTICAL SIGNAL CONNECTIONS ..................3 2.5.
Page 2 7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver VISTALINK REMOTE MONITORING/CONTROL ............. 18 ® 6.1. WHAT IS V LINK ?......................18 ISTA ® 6.2. V LINK MONITORED PARAMETERS ................18 ISTA ® 6.3. V LINK CONTROLLED PARAMETERS ................19 ISTA ®...
Page 3 Oct 2010 Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of Evertz products are for informational use only and are not warranties of future performance, either expressed or implied.
Page 4 7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver WARNING Never look directly into an optical fiber. Non-reversible damage to the eye can occur in a matter of milliseconds. Do not hook up the 7707VAT-3G DWDM cards and 7707VAR-3G cards directly with a short fiber optic cable.
Page 5: Overview
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver OVERVIEW The 7707VAR-3G is a VistaLINK capable fiber optic receiver for 3G, HDTV or SDTV video and AES ® audio signals. This single card module outputs one 3G, HD-SDI or SD-SDI video plus four AES audio signals that have been transmitted by the companion 7707VAT-3G fiber optic transmitter.
Page 6: Installation
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver INSTALLATION Each 7707VAR-3G module comes with a companion rear plate that has two BNC connectors, multi-pin removable terminal block connections, and an SC/PC (shown), ST/PC or FC/PC optical connector. The 7707VAR-U-3G modules come with a companion rear plate that has six BNC connectors and one SC/PC, SC/PC with cover (shown), ST/PC or FC/PC optical connector.
Page 7: Aes Audio Connections (Model 7707Var-3G)
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver 2.2. AES AUDIO CONNECTIONS (MODEL 7707VAR-3G) AES OUTPUT: AES audio output connections of the removable terminal block. The 7707VAR-3G has four AES audio outputs, designated as A1, A2, A3, and A4. Each of these four channels has a positive and negative terminal associated with it, and is able to output balanced or unbalanced AES.
Page 8: Care And Handling Of Optical Fiber
The transmission characteristics of the fiber are dependent on the shape of the optical core and therefore care must be taken to prevent fiber damage due to heavy objects or abrupt fiber bending. Evertz recommends that the user maintains a minimum bending radius of 5 cm to avoid fiber-bending loss that will decrease the maximum attainable distance of the fiber cable.
Page 9: Specifications
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver SPECIFICATIONS 3.1. OPTICAL INPUT Number of Inputs: Connector: Female SC/PC, ST/PC, FC/PC Return Loss: >25dB Operating Wavelength: 1270nm-1610nm Maximum Input Power: Standard: -1dBm High Sensitivity (-H Version): -7dBm Optical Sensitivity: Standard: -21dBm High Sensitivity (-H Version):...
Page 10: Electrical
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver 3.4. ELECTRICAL Voltage: +12V DC Power: 11 Watts PHYSICAL (Number of Slots) 350FR: 7700FR-C: 7800FR: Page - 6 Revision 1.1...
Page 11: Status Indicators And Displays
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver STATUS INDICATORS AND DISPLAYS The 7707VAR-3G has five LED status indicators and a 4-digit dot-matrix display on the front card-edge for monitoring and control of card status and parameters. The card-edge pushbutton and toggle switch are used to select various indications to the dot-matrix display.
Page 12: Status Indicator Leds
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver 4.1. STATUS INDICATOR LEDS Two large LEDs at the front card-edge indicate operational health of the module as follows: MODULE OK: This green LED indicates good module health. It will be on while a valid optical signal is present at the optical input and the card power is good.
Page 13: Figure 4-2: Card-Edge Menu Quick Reference
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver The most recent user selection will be maintained in non-volatile memory in the event of power loss to the module. Pushbutton Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Indications LINK...ERR (Link Error)
Page 14: Display Of Warning Status Indications
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver 4.2.1. Display of Warning Status Indications Upon entering menu level 1 on power up, or following a configuration selection, the default display selection will indicate the warning status of the 7707VAR-3G. This warning status indication can also be entered while already in menu level 1 by using the toggle switch.
Page 15: Displaying The Received Optical Power
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver 4.2.3. Displaying the Received Optical Power The 7707VAR-3G is equipped with an on-board optical power meter and can report the power to the card edge display in units of dBm. To indicate the input strength of the received signal, select the STAT (Status) menu item in menu level 1 followed by the PWR (Optical Power) menu option.
Page 16: Displaying The Software Version
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver 4.2.5. Displaying the Software Version Software operating on the 7707VAR-3G has a version number associated with it. This version number can be indicated to the display. By this means, it can be verified that the module is operating with the most recent software.
Page 17: Selecting Output Video Cleaning
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver 4.2.7. Selecting Output Video Cleaning The optical video input signal contains embedded audio information from the 7707VAT-3G, and may also contain other information located in horizontal ancillary data space. The user might wish to maintain this information in an unaltered state, or the user could favour cleaning this information.
Page 18: Selecting Audio De-Embedding Groups
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver 4.2.9. Selecting Audio De-embedding Groups This user menu item provides configuration of the de-embedded audio groups. To select the audio de- embedding groups select the CTRL (Control) menu item in menu level 1, followed by the A1+2 (AES 1 and AES 2) or A3+4 (AES 1 and AES 2) menu items.
Page 19: Setting The Audio Generation On Loss Of Signal
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver 4.2.11. Setting the Audio Generation on Loss of Signal The user can set the action to take when the input audio is loss. To configure the generation, select the CTRL (Control) menu item in menu level 1, followed by A1+2 (AES 1 and AES 2) or A3+4 (AES 1 and AES 2) menu items, and then select the GEN menu option.
Page 20: Setting The Orientation Of The Display
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver 4.2.13. Setting the Orientation of the Display The 7707VAR-3G provides the ability to adjust the orientation of the display. When using a 3RU frame it is convenient to have the text read vertical whereas when using a 1RU frame a horizontal display is desirable.
Page 21: Jumper Controls
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver JUMPER CONTROLS 5.1. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED BY THE GLOBAL FRAME STATUS The FRAME STATUS jumper J4 determines whether local faults (as shown by the Local Fault indicator) will be connected to the 7700FR frame's global status bus.
Page 22: Vistalink ® Remote Monitoring/Control
ISTA ® VistaLINK is Evertz’s remote monitoring and configuration platform which operates over an Ethernet ® network using Simple Network Management Protocol (SNMP). SNMP is a standard computer network protocol that enables different devices sharing the same network to communicate with each other.
Page 23: Controlled Parameters
7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver 6.3. LINK CONTROLLED PARAMETERS ISTA ® The following parameters can be remotely controlled via the VistaLINK interface: ® Parameter Description Video Output Standard Sets output video standard Enable/ Disable output video HANC cleaning Cleaning Output Video HANC AES 1 / 2 De-embed Group Sets source for AES 1 and 2...
Page 24 7700 MultiFrame Manual 7707VAR-3G 3G/HD/SD with 4 AES Audio Fiber Receiver This page left intentionally blank Page - 20 Revision 1.1...
