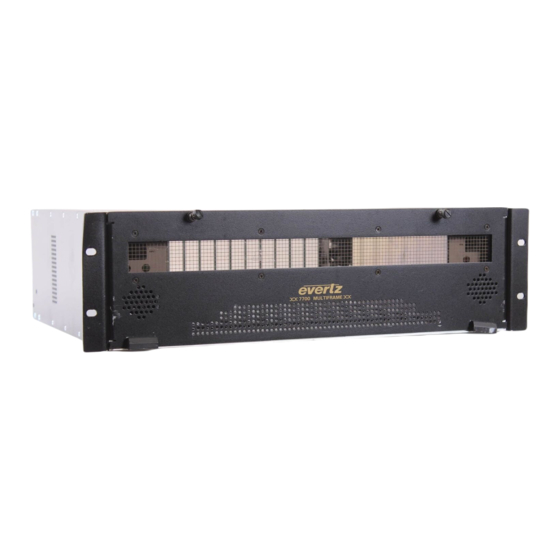

evertz MultiFrame 7700 Manual

Hide thumbs Also See for MultiFrame 7700:

Manual (40 pages)

User manual (32 pages)

Manual (16 pages)

Table of Contents

Quick Links

Download this manual

OVERVIEW ........................................................................................................................... 1

1.1.

FUNCTIONAL DESCRIPTION .................................................................................................... 2

INSTALLATION .................................................................................................................... 5

2.1.

VIDEO IN AND OUT .................................................................................................................... 5

SPECIFICATIONS ................................................................................................................ 6

3.1.

ANALOG VIDEO INPUT.............................................................................................................. 6

3.2.

REFERENCE VIDEO INPUT ....................................................................................................... 6

3.3.

ANALOG VIDEO OUTPUT.......................................................................................................... 6

3.4.

SERIAL VIDEO OUTPUT ............................................................................................................ 6

3.5.

VIDEO PERFORMANCE (SDI OUTPUTS ONLY) ...................................................................... 7

3.6.

ANALOG AUDIO INPUT (-A4 ONLY) ......................................................................................... 7

3.7.

AES AUDIO INPUTS (-AES ONLY) AND OUTPUTS ................................................................. 7

3.8.

ELECTRICAL .............................................................................................................................. 7

3.9.

PHYSICAL................................................................................................................................... 8

STATUS LEDS ..................................................................................................................... 9

4.1.

MODULE STATUS LEDS............................................................................................................ 9

4.2.

AUDIO STATUS LEDS................................................................................................................ 9

RGB VIDEO LEVEL CALIBRATION .................................................................................. 10

AUDIO BUFFER MANAGEMENT (+S OPTION ONLY)..................................................... 11

AUDIO LEVELS, HEADROOM, CLIPPING AND THE BAR GRAPHS (-A4 AND -AES).. 12

7.1.

INPUT AUDIO LEVEL CALIBRATION ..................................................................................... 12

AUDIO ALARM CALIBRATION PROCEDURE (-A4 AND -AES) ..................................... 13

8.1.

CALIBRATE AUDIO SILENCE DETECTION ........................................................................... 13

8.2.

CALIBRATE AUDIO PHASE REVERSAL DETECTION .......................................................... 13

8.3.

CALIBRATE AUDIO MONO DETECTION................................................................................ 14

8.4.

DEFINE THE FAULT CONDITION(S) ....................................................................................... 14

ON SCREEN MENUS ......................................................................................................... 15

9.1.

NAVIGATING THE ON SCREEN MENU SYSTEM................................................................... 15

9.2.

CHANGING TEXT FIELDS........................................................................................................ 15

9.3.

ON SCREEN DISPLAY - MAIN MENU .................................................................................... 16

9.4.

CONFIGURING THE AUDIO CONTROLS (-A4 AND -AES) ................................................... 16

9.4.1.

Selecting the Audio Destination Group .............................................................................. 17

9.4.2.

Audio Freeze Mode............................................................................................................ 17

9.4.3.

Additional Audio Delay ....................................................................................................... 18

9.4.4.

Monitoring the Audio Buffer Tracking................................................................................. 18

Grey background indicate un-implemented or un-tested features

Revision 1.1.1

7700 MultiFrame Manual

7730ADC Component A to D

Table of Contents

Need help?

Do you have a question about the MultiFrame 7700 and is the answer not in the manual?

Questions and answers

Summary of Contents for evertz MultiFrame 7700

Page 1: Table Of Contents
7700 MultiFrame Manual 7730ADC Component A to D TABLE OF CONTENTS OVERVIEW ........................... 1 1.1. FUNCTIONAL DESCRIPTION ....................2 INSTALLATION ........................5 2.1. VIDEO IN AND OUT ........................5 SPECIFICATIONS ........................ 6 3.1. ANALOG VIDEO INPUT......................6 3.2. REFERENCE VIDEO INPUT ....................... 6 3.3.
Page 2 7700 MultiFrame Manual 7730ADC Component A to D 9.4.5. Setting the Analog Levels (-A4 only).................. 18 9.4.6. Audio Channels 1 and 2 Processing .................. 19 9.4.7. Audio Channels 3 and 4 Processing .................. 19 9.4.8. Swapping Channel Pairs....................19 9.5. CONFIGURING THE VIDEO CONTROLS ................
Page 3 7700 MultiFrame Manual 7730ADC Component A to D 9.8.3. Setting the Position of the Bar Graphs................36 9.8.3.1. Setting the Horizontal Position of the Bar Graphs............36 9.8.4. Setting the Vertical Position of the Bar Graphs..............36 9.8.5. Selecting What Bar Graphs And Windows To Display............37 9.8.6.
Page 4 7700 MultiFrame Manual 7730ADC Component A to D 9.12. CLEAR FAULTS AND PEAKS....................49 JUMPERS........................50 10.1. TERMINATION JUMPERS ....................50 10.2. REFERENCE VIDEO SELECTOR JUMPER ................ 51 10.3. OUTPUT 3 SELECTOR JUMPER ..................51 10.4. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED BY THE GLOBAL FRAME STATUS...........................
Page 5 These sections are to be used as information only and are subject to change. Some of these features may seem to work but they have not been completed and have not been verified by Evertz. Revision 1.1.1 Grey background indicate un-implemented or un-tested features...
Page 6 7700 MultiFrame Manual 7730ADC Component A to D This page left intentionally blank Revision 1.1.1 Grey background indicate un-implemented or un-tested features...
Page 7: Overview
A to D frame synchronizer with audio embedder. In addition, Evertz fault monitoring processor will analyze and report video and audio problems via an On- Screen-Display, or remotely via VistaLINK SNMP.
Page 8: Functional Description
7700 MultiFrame Manual 7730ADC Component A to D The Features of "-A4" option are: • 4 balanced analog audio inputs on 2 removable barrier strips. • High impedance inputs (user supplies termination resistors for other impedances) • Analog audio input levels are adjustable. Jumpers set coarse input levels, fine input levels are set by software control.
Page 9: Figure 1-1: 7730Adc Block Diagram
7700 MultiFrame Manual 7730ADC Component A to D Sync Ref In Process 7730ADC(+S) Sync In Sync Process Frame. Colour Outputs Pb/B Sync. Space P / S Formatter Encode (+S only) Converter Mon. Out Pr/R SDI Out Composite Analog VistaLINK Control Monitoring Interface Video...
Page 10: Figure 1-3: 7730Adc-Aes Block Diagram
7700 MultiFrame Manual 7730ADC Component A to D Sync Ref In Process 7730ADC-AES(+S) Sync In Sync Process Frame. Colour Outputs Audio Pb/B Sync. Space P / S Embedder Formatter Encode (+S only) Converter Mon. Out Pr/R SDI Out Composite Analog VistaLINK Control Monitoring...
Page 11: Installation
7700 MultiFrame Manual 7730ADC Component A to D Installation The 7730ADC modules come with a companion rear plate and occupies one or two slots in the 7700FR frame. Figure 2-1 shows a picture of each of the rear panels. For information on mounting the rear plate and inserting the module into the frame see section 3 of the 7700FR chapter.
Page 12: Specifications
7700 MultiFrame Manual 7730ADC Component A to D SPECIFICATIONS 3.1. ANALOG VIDEO INPUT Standards: Y, Pb, Pr or G, B, R : SMPTE/EBU N10, Betacam™, MII, and other NTSC related Number of Inputs: BNC per IEC 169-8 Connector: 1V nominal Signal Level: Frequency Lock Range: ±75ppm from nominal...
Page 13: Video Performance (Sdi Outputs Only)
7700 MultiFrame Manual 7730ADC Component A to D 3.5. VIDEO PERFORMANCE (SDI outputs only) Frequency Response: <±??dB (100kHz to 4.1MHz) < -??dBrms (G, B, R, 15kHz to 5MHz) Noise Floor: < -??dBrms (Y, Pb, Pr, black video, 15kHz to 5MHz) Inter-channel Delay: <±9ns 3 usec...
Page 14: Physical
7700 MultiFrame Manual 7730ADC Component A to D 3.9. PHYSICAL 7700 frame mounting: Number of slots: 1 for non-audio versions 2 for audio versions (-AES, -A4) Stand Alone Enclosure: Dimensions: 14 “ L x 4.5 “ W x 1.9 “ H (355 mm L x 114 mm W x 48 mm H) Weight: approx.
Page 15: Status Leds
7700 MultiFrame Manual 7730ADC Component A to D STATUS LEDs 4.1. MODULE STATUS LEDS MODULE STATUS: This Green LED will be on when the module is operating properly. This Red LED makes it easy to identify one module in a frame that is missing an LOCAL FAULT: essential input or has another fault.
Page 16: Rgb Video Level Calibration
7700 MultiFrame Manual 7730ADC Component A to D RGB VIDEO LEVEL CALIBRATION Calibrating the DC (black) level and gain (video level) of all 3 components can be a challenge when inputting RGB video. When converting RGB to YCbCr, a change in any one of the input components will have an effect in all three of the output components.
Page 17: Audio Buffer Management (+S Option Only)
7700 MultiFrame Manual 7730ADC Component A to D AUDIO BUFFER MANAGEMENT (+S OPTION ONLY) The audio is delayed, through a large memory buffer, by the same time value as experienced by the video through the video frame synchronizer. This is done to maintain a consistent video/audio relationship. Unfortunately, when the video frame buffer drops or repeats frames of video, we can not do the same with the audio.
Page 18: Audio Levels, Headroom, Clipping And The Bar Graphs (-A4 And -Aes)
7700 MultiFrame Manual 7730ADC Component A to D AUDIO LEVELS, HEADROOM, CLIPPING AND THE BAR GRAPHS (-A4 and –AES) This section contains notes to understand how the 7730ADC-A4 relates analog audio levels, digital audio levels, and the displayed bar graph levels. Before you can calibrate the audio analog to digital converter, you must know a couple of system issues specific to your application.
Page 19: Audio Alarm Calibration Procedure (-A4 And -Aes)
7700 MultiFrame Manual 7730ADC Component A to D AUDIO ALARM CALIBRATION PROCEDURE (-A4 and –AES) This section contains a detailed description on setting the various audio warning/error detection parameters. Some of the audio alarm detection algorithms are dependent on the state of other audio alarm detectors. For instance, the mono detection algorithm will not use periods of silence as determined by the silence detection.
Page 20: Calibrate Audio Mono Detection
7700 MultiFrame Manual 7730ADC Component A to D 8.3. CALIBRATE AUDIO MONO DETECTION 1. Supply the card with a stereo signal that originated from mono material and that has a large amount of un-correlated noise added to each channel. This will allow you to set the Mono Threshold to a value that will detect the mono condition in the presence of noise.
Page 21: On Screen Menus
7700 MultiFrame Manual 7730ADC Component A to D ON SCREEN MENUS 9.1. NAVIGATING THE ON SCREEN MENU SYSTEM A toggle switch and pushbutton allow card edge navigation for a set of on-screen menus used to configure the card. To enter the on-screen menu system, press the pushbutton once. This will bring you to the main setup menu where you can use the toggle switch to move up and down the list of available sub-menus.
Page 22: On Screen Display - Main Menu
7700 MultiFrame Manual 7730ADC Component A to D There are two special characters to help you enter the text: a backspace character (left pointing arrow), and an end of line character (stop sign): Left Arrow: If you have accidentally advanced to the next character and want to go back, select the left arrow with the toggle switch.
Page 23: Selecting The Audio Destination Group
7700 MultiFrame Manual 7730ADC Component A to D Audio destination Selects the destination group of audio Audio freeze mode Selects what action to take when the video is gone Audio delay Additional, user desired, delay may be added to the audio Audio buffer The audio buffer management status may be monitored with this item Ch 1 adjust...
Page 24: Additional Audio Delay
The process must be spread out over a period of time so that the action is not audible. This indicator is mainly used at the Evertz factory and may also be useful in monitoring to help in debugging system issues.
Page 25: Audio Channels 1 And 2 Processing
7700 MultiFrame Manual 7730ADC Component A to D Audio The channel input level (-A4 only) is adjusted with this control. It has a range of approximately +/- 10 dB with 1/2dB resolution. ch1 adjust -20 to 20 For more details about setting the input level jumpers, see the section on INPUT AUDIO LEVEL CALIBRATION.
Page 26: Configuring The Video Controls
7700 MultiFrame Manual 7730ADC Component A to D 9.5. CONFIGURING THE VIDEO CONTROLS The Video menus are used to configure parameters associated with the video processing functions and the VBI decoders. The chart below shows the items available in the Video menu. The following sections provide detailed information about each of the parameters.
Page 27: Setting The Video Standard
7700 MultiFrame Manual 7730ADC Component A to D 9.5.1. Setting the Video Standard Video The video line standard and component format is selected with this control. All Video standard of the standard definition interlaced, 4x3, 59.94/50Hz frame rate standards are supported.
Page 28: Genlock Source Selection
7700 MultiFrame Manual 7730ADC Component A to D 9.5.4. Genlock Source Selection Video This control allows you to select the reference video for the frame synchronizer Genlock source output timing. The reference may either be an externally supplied colour black or you may use the input video as a reference.
Page 29: Setting The Horizontal Phase Of The Output Video - Pal-B/625 Video
7700 MultiFrame Manual 7730ADC Component A to D 9.5.9. Setting the Horizontal Phase of the Output Video – PAL-B/625 Video Video With this control, you can set the horizontal timing of the output video with 625 H phase respect to the Genlock reference input when operating in PAL/625 video mode. Setting this control to 0, keeps the monitoring output video in time with the 0 to 1727 Genlock reference.
Page 30: Monitoring The Audio Buffer Tracking
This indicator is mainly used at the Evertz factory and may also be useful to monitor to help in debugging system issues. 9.5.15. Selecting Time Code Type Video Vertical Interval Time Code will be decoded from the input video if set to VITC.
Page 31: Configuring The Input Video Processing Controls
7700 MultiFrame Manual 7730ADC Component A to D 9.6. CONFIGURING THE INPUT VIDEO PROCESSING CONTROLS The Input Video Processing menu is used to configure parameters associated with the component A to D video processing. The chart below shows the items available in the Input Video Processing menu. Black Level Y/G Controls the Y/G channel black level Black Level Pb/B...
Page 32: Video Level Control
7700 MultiFrame Manual 7730ADC Component A to D 9.6.2. Video Level Control Video The video level of the Y/G channel is adjusted with this control. Input Video Processing When in RGB mode, it’s almost impossible to calibrate this control Video Level Y/G without some sort of calibration mode.
Page 33: Selecting The Bar Graph Operating Mode
7700 MultiFrame Manual 7730ADC Component A to D Bar graphs 1 and 2 Setup items for bar graphs 1 and 2 Bar graphs 3 and 4 Setup items for bar graphs 3 and 4 Size Sets bar graph size Sets the background opacity or how much video picture content will be visible Background opacity through the bar graph backgrounds.
Page 34: Setting The Headroom
7700 MultiFrame Manual 7730ADC Component A to D 9.7.2. Setting the Headroom Bar graphs The headroom is the level difference between a maximum amplitude Bar graphs 1 and 2 signal that can be represented in the digital world (this is called 0 dB FS or 0 dB Full Scale) to a nominal, user defined operating level, Headroom represented in Decibels.
Page 35: Setting The Ppm Mode And Ballistics
7700 MultiFrame Manual 7730ADC Component A to D VU with floating PPM: (VU PPM) This mode displays both VU levels and PPM levels on the same bar graph. The VU level is indicated by the solid bar going up and down, while the PPM reading is indicated by a floating white bar. The scale displayed is a decibel scale with 0 corresponding to program reference level (for all modes except AES/EBU).
Page 36: Setting The Vu Display Range
7700 MultiFrame Manual 7730ADC Component A to D 9.7.5. Setting the VU Display Range Bar graphs This parameter selects the VU display range when VU modes are Bar graphs 1 and 2 active. VU range Most VU meters have two possible ranges. These are: Normal Extended Normal range: +3 to –20dB...
Page 37: Setting The Bar Graph Warning Region
7700 MultiFrame Manual 7730ADC Component A to D 9.7.8. Setting the Bar Graph Warning Region Bar graphs The bar graph "warning" region is the area between the "OK" region Bar graphs 1 and 2 and the "error" region. It is intended to indicate when the audio level is approaching the "error"...
Page 38: Setting The Colours Of The Bar Graphs
7700 MultiFrame Manual 7730ADC Component A to D 9.7.12. Setting the Colours of the Bar Graphs Each of the level bar graphs consists of three regions: the OK, warning and error regions. The Colours menu items allow you to select one of a group of standard colours, or choose your own custom colours for each of the regions.
Page 39: Setting The Level Bar Graph Size
7700 MultiFrame Manual 7730ADC Component A to D 9.7.13. Setting The Level Bar Graph Size Bar graphs This control sets the vertical size of the level bar graphs. Size Two sizes of bar graphs are available. The Big size is about ¾ of the screen Small, height while the Small size is about ½...
Page 40: Descriptions Of The On Screen Windows
7700 MultiFrame Manual 7730ADC Component A to D Priority Display Type Level Fault Messages (top) Time Code Source ID Program Rating Status window Phase bar graphs Level bar graphs (bottom) 9.8.1. Descriptions of the On Screen Windows 9.8.1.1. Video/Audio Status The purpose of the Video/Audio status screen is to show as much status information about the video and audio as possible in a small, concise table.
Page 41: Time Code Window
7700 MultiFrame Manual 7730ADC Component A to D Item Value(s) Description Video 525/625/not present Input video standard detected on the input. The wrong standard is applied the (wrong std) is displayed Genlock present/not present/off Genlock presence detected. If genlock is turned on and video of the correct standard is applied, present will be displayed.
Page 42: Setting The Position Of On Screen Windows
7700 MultiFrame Manual 7730ADC Component A to D 9.8.2. Setting the Position of On Screen Windows To set the horizontal and vertical position of the Status, time code, or one of the Fault windows use the WINDOW H and WINDOW V menu items for the respective window. The controls for all of the windows work in the same way so, for simplicity only the menu items for the STATUS WINDOW will be shown.
Page 43: Selecting What Bar Graphs And Windows To Display
7700 MultiFrame Manual 7730ADC Component A to D 9.8.5. Selecting What Bar Graphs And Windows To Display The windows and bar graphs can be turned permanently on or off. The Window enable menu item is used to program the on/off states of the text and bar graph windows. To display the Fault windows use the Fault condition menu item on the Fault definitions menu.
Page 44: Setting The Text Window Background Colours
7700 MultiFrame Manual 7730ADC Component A to D 9.8.6.2. Setting the Text Window Background Colours On-screen display configuration Select the desired background colour around the text in the Text Text windows windows. Text window config Background colour Black Grey Yellow Green 9.8.6.3.
Page 45: Setting The Status Window Mode
7700 MultiFrame Manual 7730ADC Component A to D 9.8.6.6. Setting the Status Window Mode On-screen display configuration This control determines the display properties of the status Text windows window. Text window config When it is set to Normal the status window will use the text Status window mode window properties.
Page 46: Setting The Fault Window Background Opacity
7700 MultiFrame Manual 7730ADC Component A to D 9.8.7.3. Setting the Fault Window Background Opacity On-screen display configuration This control sets the Fault window background opacity or how Text windows much video picture content will be visible through the window background.
Page 47: Gpo Configuration
7700 MultiFrame Manual 7730ADC Component A to D 9.9. GPO CONFIGURATION The 7700 frame has a fault monitoring LED and general-purpose output. The user has the ability to configure which faults the module will assert onto the frame status system. The GPO configuration menu contains the controls used to configure the GPO.
Page 48: Setting Up How A Fault Is Triggered And How It Is Presented
7700 MultiFrame Manual 7730ADC Component A to D Fault condition 1 Controls used to configure the Fault Condition 1 display. Fault condition 2 Controls used to configure the Fault Condition 2 display. Controls used to set the Fault Window text style, background colour and Fault window config opacity.
Page 49: Setting The Message Associated With A Fault
7700 MultiFrame Manual 7730ADC Component A to D 9.10.1.3. Setting the Message Associated with a Fault Fault definitions This control sets the message to display when the fault condition is Fault condition 1 active. The text of the message can be changed. See section 9.2 for information on changing text fields.
Page 50: Setting The Fault Window Attributes
7700 MultiFrame Manual 7730ADC Component A to D Input video error Video absent or wrong standard Genlock error Reference absent or wrong standard DARS error DARS reference absent or not locked to video Loss of audio ½ Audio 1 and 2 absent (only -AES versions) Loss of audio ¾...
Page 51: Setting The Loss Of Audio Duration
7700 MultiFrame Manual 7730ADC Component A to D 9.10.4. Setting the Loss of Audio Duration Fault definitions This control sets the duration, in number of consecutive frames of Audio invalid duration video, that audio needs to disappear before the Audio invalid error fault condition exists.
Page 52: Setting The Audio Silence Duration
7700 MultiFrame Manual 7730ADC Component A to D 9.10.6.2. Setting the Audio Silence Duration Fault definitions This control sets the amount of time the audio is silent in seconds Silence duration before a fault occurs. 0.5 to 127 sec 10 sec 9.10.7.
Page 53: Setting The Audio Mono Threshold Level
7700 MultiFrame Manual 7730ADC Component A to D Mono is detected by comparing the difference of the two channels to the average of the two. If a signal always has no out of phase information (or just a small amount) for a period of time, then the signal may be mono.
Page 54: Utilities
7700 MultiFrame Manual 7730ADC Component A to D 9.11. UTILITIES 9.11.1. Accessing Information About this Module and its Firmware Utilities This menu item list the particulars about this module and the firmware residing within it. It gives quick access to information about revisions About…...
Page 55: Initiating A Software Upgrade
7700 MultiFrame Manual 7730ADC Component A to D 9.11.3. Initiating a Software Upgrade Utilities This menu item is used to initiate an upgrade of the module software. Upgrade In addition to the software upgrade support detailed in this manual (See the Upgrading Firmware section of this manual for more information), you Cancel can initiate an upgrade with this command.
Page 56: Jumpers
(-A4 or –AES) is installed. MODULE STATUS PAL / NTSC 4.0V SYN LVL 0.3V GENLOCK / AUDIO EVERTZ (A) 7730ADC HI-Z GL/LTC TERM FRAME GL SEL OUT3 SEL SDI ANAL +12V...
Page 57: Reference Video Selector Jumper
7700 MultiFrame Manual 7730ADC Component A to D 10.2. REFERENCE VIDEO SELECTOR JUMPER GL SEL The GL SEL jumper J3 located on the rear edge of the 7730ADC board between the bottom two white multi-pin male connectors, selects the source of genlock reference video for the card.
Page 58: Configuring The Module For Firmware Upgrades
7700 MultiFrame Manual 7730ADC Component A to D 10.5. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES The following method can be used to upgrade the firmware in the card. You can also use the UPGRADE menu item located on the UTILITIES menu to upgrade the firmware. UPGRADE The UPGRADE jumper J2, located at the front edge of the 7730ADC board, is used when firmware upgrades are being done to the module.
