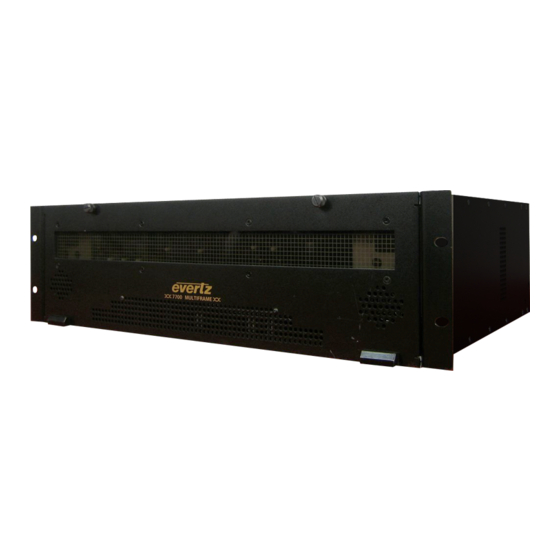

evertz 7700 Multiframe Manual

3g/hd/sdi re-clocking optical to electrical converter
Hide thumbs Also See for 7700 Multiframe:
Table of Contents

Advertisement

Quick Links

Download this manual
1.
OVERVIEW.......................................................................................................................................... 1
2.
INSTALLATION................................................................................................................................... 3
2.1. ELECTRICAL SIGNAL CONNECTIONS.................................................................................... 3
2.2. OPTICAL CONNECTIONS ......................................................................................................... 4
2.3. CARE AND HANDLING OF OPTICAL FIBER............................................................................ 4
3.
SPECIFICATIONS............................................................................................................................... 6
3.1. OPTICAL INPUT......................................................................................................................... 6
3.2. SERIAL VIDEO OUTPUTS ......................................................................................................... 6
3.3. GENERAL PURPOSE OUTPUTS .............................................................................................. 6
3.4. ELECTRICAL ............................................................................................................................. 6
3.5. COMPLIANCE ............................................................................................................................ 7
3.6. PHYSICAL .................................................................................................................................. 7
4.
STATUS INDICATORS AND DISPLAYS ........................................................................................... 8
4.1. STATUS INDICATOR LEDS....................................................................................................... 8
4.2. DOT-MATRIX DISPLAY ............................................................................................................. 9
4.2.1. Displaying the Input Video Rate .................................................................................... 10
4.2.2. Displaying the Optical Power ........................................................................................ 10
4.2.3. Displaying the Software Version ................................................................................... 11
4.2.4. Selecting Reclocking Rate ............................................................................................ 11
4.2.5. Selecting GPO Triggers ................................................................................................ 11
4.2.6. Selecting GPO Polarity.................................................................................................. 12
4.2.7. Selecting Orientation ..................................................................................................... 12
4.2.8. Selecting Factory Reset ................................................................................................ 12
5.
JUMPERS AND LOCAL CONTOLS ................................................................................................. 13
BY THE GLOBAL FRAME STATUS ........................................................................................ 13
5.2. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES .............................................. 13
6.
REMOTE MONITORING/CONTROL ........................................................................... 14
®
7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter

TABLE OF CONTENTS

Revision 1.0
7700 MultiFrame Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7700 Multiframe and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for evertz 7700 Multiframe

Summary of Contents for evertz 7700 Multiframe

  • Page 1: Table Of Contents

    7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter TABLE OF CONTENTS OVERVIEW............................1 INSTALLATION........................... 3 2.1. ELECTRICAL SIGNAL CONNECTIONS..................3 2.2. OPTICAL CONNECTIONS ......................4 2.3. CARE AND HANDLING OF OPTICAL FIBER................4 SPECIFICATIONS..........................6 3.1. OPTICAL INPUT......................... 6 3.2.
  • Page 2 7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter 6.1. WHAT IS VISTALINK ? ......................14 ® 6.2. VISTALINK MONITORED PARAMETERS................15 ® 6.3. VISTALINK CONTROLLED PARAMETERS................15 ® 6.4. V LINK ........................15 ISTA RAPS ® Figures Figure 1-1: 7707OE-3G-1 Block Diagram......................2 Figure 2-1: 7707OE-3G-1 Rear Panel ........................
  • Page 3 Oct 09 Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of Evertz products are for informational use only and are not warranties of future performance, either expressed or implied.
  • Page 4 7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter WARNING Never look directly into an optical fiber. Non-reversible damage to the eye can occur in a matter of milliseconds. Do not hook up the 7707EO-3G-1 DWDM cards and any 7707OE-3G-1 series cards directly with a short fiber optic cable.

  • Page 5: Overview

    7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter OVERVIEW The 7707OE-3G-1 is a VistaLINK enabled, optical to electrical converter for SMPTE 424M (2.970Gb/s), ® SMPTE 292M (1.485Gb/s), SMPTE 259M-C (270Mb/s), SMPTE 305M (SDTi), and DVB-ASI (270Mb/s). Automatic reclocking, data rate selection and data rate indication is provided for rates from 270Mb/s to 2.970Gb/s.

  • Page 6: Figure 1-1: 7707Oe-3G-1 Block Diagram

    7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter OPTICAL CABLE RECEIVER RECLOCKING Serial DRIVERS SMPTE 424M Output SMPTE 292M Optical SMPTE 259M-C Input SMPTE 305M Serial DVB-ASI Output Serial Output VistaLINK ® Interface CONTROL/ LOCAL LOCAL INDICATION CONTROL...

  • Page 7: Installation

    7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter INSTALLATION The 7707OE-3G-1 comes with a companion rear plate that has three BNC connectors and one SC/PC (shown), ST/PC or FC/PC optical connector. For information on mounting the rear plate and inserting the module into the frame see section 3 of the 7700FR chapter.

  • Page 8: Optical Connections

    7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter GPO: The 7707OE-3G-1 provides the user with 1 General Purpose Output. It is dry-contact relay closure. The GPO polarity is user selectable normally open or normally closed, and always open on power loss. Figure 2-2 shows the output circuitry.
  • Page 9 The transmission characteristics of the fiber are dependent on the shape of the optical core and therefore care must be taken to prevent fiber damage due to heavy objects or abrupt fiber bending. Evertz recommends that you maintain a minimum bending radius of 5 cm to avoid fiber-bending loss that will decrease the maximum attainable distance of the fiber cable.

  • Page 10: Specifications

    7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter SPECIFICATIONS 3.1. OPTICAL INPUT Standards: SMPTE 297M Reclocked: SMPTE 424M, SMPTE 292M, SMPTE 259M C, SMPTE 305M, DVB-ASI, M2S Non-Reclocked: Any bi-level signal type at rates of 270Mb/s – 2.970Gb/s...

  • Page 11: Compliance

    7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter 3.5. COMPLIANCE Electrical Safety: CSA Listed to CSA C22.2 No. 60065-03, UL 60065-03 IEC 60065-(2001-12) 7th Edition Complies with CE Low voltage directive 93/68/EEC EMI/RFI: Complies with FCC regulations for class A devices Complies with EU EMC directive 89/336/EEC 3.6.

  • Page 12: Status Indicators And Displays

    7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter STATUS INDICATORS AND DISPLAYS The 7707OE-3G-1 has 3 LED Status indicators and a 4 digit alphanumeric display on the front card edge to show operational status of the card at a glance. The card edge pushbutton is used to select various displays on the alphanumeric display.

  • Page 13: Dot-Matrix Display

    7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter 4.2. DOT-MATRIX DISPLAY Additional monitoring and control functions are implemented via the 4-digit dot-matrix display and controls located at the card-edge. The card-edge pushbutton and toggle-switch are used to navigate through the display menu.

  • Page 14: Displaying The Input Video Rate

    7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter 4.2.1. Displaying the Input Video Rate The card-edge display of the 7707OE-3G-1 can report the video rate present at the optical input. To indicate the input video rate, select the STAT (Status) menu item in menu level 1 followed by RATE (Input Video Rate).

  • Page 15: Displaying The Software Version

    7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter 4.2.3. Displaying the Software Version Software operating on the 7707OE-3G-1 has a version number associated with it. This version number can be indicated to the display. By this means, it can be verified that the module is operating with the most recent software.

  • Page 16: Selecting Gpo Polarity

    7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter 4.2.6. Selecting GPO Polarity The GPO polarity of the 7707OE-3G-1 is user selectable. When set to Normally Open, GPO and GPO Ground are connected only when card fault exists. When set to Normally Closed, GPO and GPO Ground are connected until card fault exists, at which point GPO and GPO Ground become disconnected.

  • Page 17: Jumpers And Local Contols

    7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter JUMPERS AND LOCAL CONTOLS Several jumpers, located at the front of the module, are used to preset various operating modes. Figure 4-1 shows the locations of the jumpers. 5.1. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED...

  • Page 18: Vistalink Remote Monitoring/Control

    1. An SNMP manager, also known as a Network Management System (NMS), is a computer running special software that communicates with the devices in the network. Evertz VL-Fiber demo Manager graphical user interface (GUI), third party or custom manager software may be used to monitor and control Evertz VistaLINK enabled fiber optic products.

  • Page 19: Vistalink

    7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter 6.2. VISTALINK MONITORED PARAMETERS ® The following parameters can be remotely monitored through the VistaLINK interface. ® Parameter Description A range of values describing the detected video signal rate. Signal Standard A range of values describing optical power at the fiber input.
  • Page 20 7700 MultiFrame Manual 7707OE-3G-1 3G/HD/SDI Re-Clocking Optical to Electrical Converter This page left intentionally blank Page-16 Revision 1.0...
