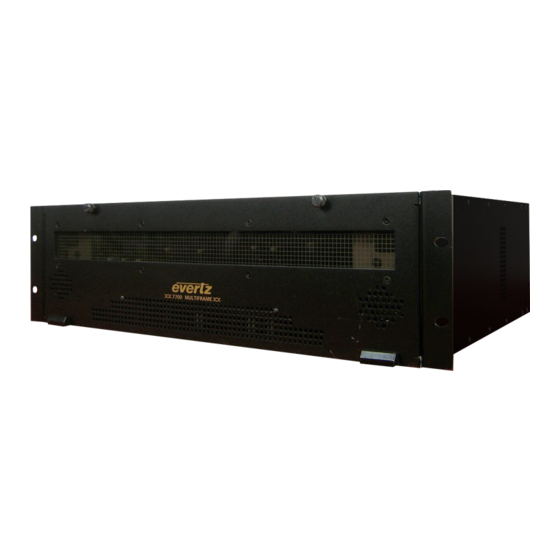

evertz 7700 MultiFrame Manual
  1. Manuals
  2. Brands
  3. evertz Manuals
  4. Receiver
  5. 7700 MultiFrame
  6. Manual

evertz 7700 MultiFrame Manual

8 channel hd/sdi/dvi-asi fiber receiver
Hide thumbs Also See for 7700 MultiFrame:
Table of Contents

Advertisement

Quick Links

Download this manual
1.
OVERVIEW ............................................................................................................................1
2.
INSTALLATION .....................................................................................................................2
2.1. CARE AND HANDLING OF OPTICAL FIBER........................................................................... 3
3.
SPECIFICATIONS .................................................................................................................4
3.1. OPTICAL INPUT......................................................................................................................... 4
3.2. SERIAL VIDEO OUTPUTS......................................................................................................... 4
3.3. SERIAL MONITORING OUTPUT............................................................................................... 4
3.4. ELECTRICAL ............................................................................................................................. 4
3.5. PHYSICAL .................................................................................................................................. 4
4.
STATUS INDICATORS AND DISPLAYS ..............................................................................5
4.1. STATUS INDICATOR LEDS ...................................................................................................... 5
4.2. DOT-MATRIX DISPLAY / CARD STATUS AND CONTROLS .................................................. 6
4.2.1. Display of Warning Status Indications............................................................................. 8
4.2.2. Displaying the Video Standard ........................................................................................ 8
4.2.3. Displaying the Received Power....................................................................................... 9
4.2.4. Displaying the Link Distance Option ............................................................................... 9
4.2.5. Displaying the BER (Bit-Error Rate) ................................................................................ 9
4.2.6. Displaying the 7707VT-8-HS Companion Transmitter Status ....................................... 10
4.2.7. Displaying the Firmware Version................................................................................... 10
4.2.8. Setting Output Type on Loss of Input............................................................................ 10
4.2.9. Controlling Monitoring Video Output ............................................................................. 11
4.2.10. Password Protection for Channel Blocking ................................................................... 11
4.2.12. Resetting Factory Defaults ............................................................................................ 12
5.
JUMPERS AND LOCAL CONTROLS .................................................................................13
BY THE GLOBAL FRAME STATUS ....................................................................................... 13
5.2. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES ............................................. 13
6.
®
®
®
®

TABLE OF CONTENTS

?............................................................................................................. 14
®
MONITORED PARAMETERS .............................................................................. 14
CONTROLLED PARAMETERS ........................................................................... 15
TRAPS.................................................................................................................. 15
7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver
Revision 1.2
7700 MultiFrame Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7700 MultiFrame and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for evertz 7700 MultiFrame

Summary of Contents for evertz 7700 MultiFrame

  • Page 1: Table Of Contents

    7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver TABLE OF CONTENTS OVERVIEW ..........................1 INSTALLATION ........................2 2.1. CARE AND HANDLING OF OPTICAL FIBER................3 SPECIFICATIONS .........................4 3.1. OPTICAL INPUT......................... 4 3.2. SERIAL VIDEO OUTPUTS......................4 3.3. SERIAL MONITORING OUTPUT....................4 3.4.
  • Page 2 7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver Figures Figure 1-1: 7707VR-8-HS Block Diagram......................1 Figure 2-1: 7707VR-8-HS Rear Panel ........................2 Figure 4-1: Location of Status Indicators and Jumpers ..................5 Figure 4-2: Card Edge Menu Structure ......................... 7 Tables Table 6–1: VistaLINK...
  • Page 3 Oct 09 Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of Evertz products are for informational use only and are not warranties of future performance, either expressed or implied.
  • Page 4 7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver WARNING Never look directly into an optical fiber. Non-reversible damage to the eye can occur in a matter of milliseconds. Revision 1.2...

  • Page 5: Overview

    7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver OVERVIEW The 7707VR-8-HS is a VistaLINK enabled fiber receiver for seven HD-SDI signals, eight SDI/DVB-ASI ® signals, or combinations thereof. This module operates with a companion 7707VT-8-HS, to reverse the Time Domain Multiplexing (TDM) process and restore the separate SDI/DVB-ASI and/or HD-SDI feeds.

  • Page 6: Installation

    7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver INSTALLATION The 7707VR-8-HS comes with a companion rear plate that has four BNC connectors and one SC/PC (shown), ST/PC or FC/PC optical connector. For information on mounting the rear plate and inserting the module into the frame, see section 3 of the 7700FR manual chapter.

  • Page 7: Care And Handling Of Optical Fiber

    The transmission characteristics of the fiber are dependent on the shape of the optical core and therefore care must be taken to prevent fiber damage due to heavy objects or abrupt fiber bending. Evertz recommends that you maintain a minimum bending radius of 5 cm to avoid fiber-bending loss that will decrease the maximum attainable distance of the fiber cable.

  • Page 8: Specifications

    7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver SPECIFICATIONS 3.1. OPTICAL INPUT Number of Inputs: Connector: Female LC Duplex Return Loss: >12dB Operating Wavelength: 1310nm to 1550nm Maximum Input Power Standard (+S) Receiver: -1dBm High Sensitivity (+H) Receiver: -7dBm...

  • Page 9: Status Indicators And Displays

    7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver STATUS INDICATORS AND DISPLAYS The 7707VR-8-HS has 8 LED Status indicators and a 4 digit alphanumeric display on the front card edge to show operational status of the card at a glance. The card edge shaft-encoder/pushbutton is used to select various displays on the alphanumeric display.

  • Page 10: Dot-Matrix Display / Card Status And Controls

    7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver Eight multi-coloured LEDs indicate the status of the eight corresponding video signals: VIDEO STATUS: GREEN indicates the presence of a valid signal on the corresponding channel. YELLOW indicates that the corresponding channel has been password-blocked (via CTRL/PSWD men item).

  • Page 11: Figure 4-2: Card Edge Menu Structure

    7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver Pushbutton Fault Status Menu Level 1 Menu Level 2 Menu Level 3 Menu Level 4 Menu Level 5 Indications Selections Selections Indications Standards Per Table VID1 (Video Output 1) LOS (Loss of Signal) IO...ERR (Input/Output Fault)

  • Page 12: Display Of Warning Status Indications

    7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver The most recent user selection will be maintained in non-volatile memory in the event of power loss to the module. 4.2.1. Display of Warning Status Indications The top level, default display indicates overall card status and warnings: Normal operation.

  • Page 13: Displaying The Received Power

    7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver 4.2.3. Displaying the Received Power The 7707VR-8-HS can display the received power from the XFP module in (dBm). To display the input power, select the STAT menu item in level 1, next select LINK in level 2, use the shaft encoder to display...

  • Page 14: Displaying The 7707Vt-8-Hs Companion Transmitter Status

    7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver A Bit-Error Rate (BER) of 10 will cause OVER to be indicated. Since the BER must be calculated over an extended period of time, to produce a timely indication this will return to OK unless a BER of 10 sustained.

  • Page 15: Controlling Monitoring Video Output

    7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver CTRL Valid black output on loss of input. Output muted on loss of input. 4.2.9. Controlling Monitoring Video Output The MON menu item allows the user to control which input video signal (VID 1 through VID7) will be passed through to the Output channel 8 connector on the 7707VR-8-HS.

  • Page 16: Setting The Orientation Of The Text On The Card Edge Display

    7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver 4.2.11. Setting the Orientation of the Text on the Card Edge Display The DISP display option allows the user to set a horizontal or vertical orientation for the card edge display messages.

  • Page 17: Jumpers And Local Controls

    7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver JUMPERS AND LOCAL CONTROLS Several jumpers, located at the front of the module are used to preset various operating modes. Figure 4-1 shows the locations of the jumpers. 5.1. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED...

  • Page 18: Vistalink ® Remote Monitoring/Control

    1. An SNMP manager also known as a Network Management System (NMS) is a computer running special software that communicates with the devices in the network. Evertz VL-Fiber demo Manager graphical user interface (GUI), third party or custom manager software may be used to monitor and control Evertz VistaLINK enabled fiber optic products.

  • Page 19: Vista Link ® Controlled Parameters

    7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver 6.3. LINK CONTROLLED PARAMETERS ISTA ® The following parameters can be remotely controlled through the VistaLINK interface. ® Parameter Description Controls Generated Video on loss. Generated Video on LOS Controls VID8 Monitor Output.
  • Page 20 7700 MultiFrame Manual 7707VR-8-HS 8 Channel HD/SDI/DVI-ASI Fiber Receiver This page left intentionally blank 7707VR-8-HS-16 Revision 1.2...
