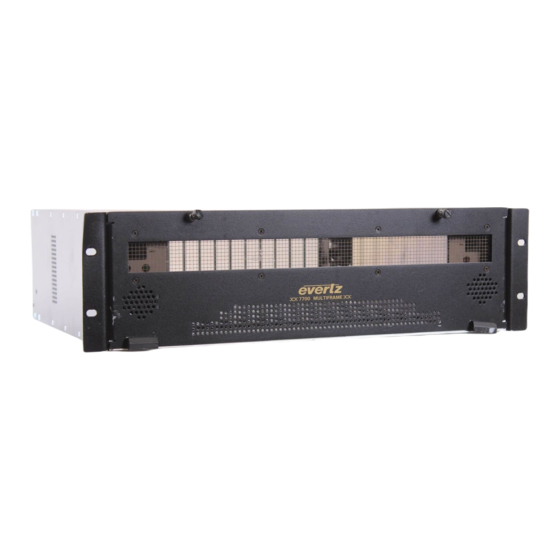

evertz MultiFrame 7700 Manual

Quad sdi/dual hd-sdi fiber receiver7707vr-4-hs
Hide thumbs Also See for MultiFrame 7700:
Table of Contents

Advertisement

Quick Links

Download this manual
1.
OVERVIEW ............................................................................................................................1
2.
INSTALLATION .....................................................................................................................2
2.1. CARE AND HANDLING OF OPTICAL FIBER .......................................................................... 3
3.
SPECIFICATIONS .................................................................................................................4
3.1. OPTICAL INPUT ........................................................................................................................ 4
3.2. SERIAL VIDEO OUTPUTS ........................................................................................................ 4
3.3. SYSTEM PERFORMANCE ........................................................................................................ 4
3.4. ELECTRICAL ............................................................................................................................. 5
3.5. PHYSICAL.................................................................................................................................. 5
4.
STATUS INDICATORS AND DISPLAYS ..............................................................................6
4.1. STATUS INDICATOR LEDS ...................................................................................................... 6
4.2. DOT-MATRIX DISPLAY / CARD STATUS AND CONTROLS .................................................. 7
4.2.1. Display of Warning Status Indications............................................................................. 9
4.2.2. Displaying the Video Standards ...................................................................................... 9
4.2.3. Displaying the Video Output Mode.................................................................................. 9
4.2.4. Displaying the Optical Power ........................................................................................ 10
4.2.5. Displaying the Firmware Version................................................................................... 10
4.2.6. Setting Input Error Detection ......................................................................................... 10
4.2.7. Setting Output Type on Loss of Input............................................................................ 11
4.2.9. Resetting Factory Defaults ............................................................................................ 11
5.
JUMPERS AND LOCAL CONTROLS .................................................................................12
BY THE GLOBAL FRAME STATUS ....................................................................................... 12
5.2. CONFIGURING THE MODULE FOR FIRMWARE UPGRADES ............................................. 12
6.
®
V
V
6.2.
®
V
6.3.
®
6.4.
V
LINK
ISTA
®

TABLE OF CONTENTS

? ............................................................................................................ 13
®
MONITORED PARAMETERS.............................................................................. 13
TRAPS.................................................................................................................. 14
7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver
Revision 1.3
7700 MultiFrame Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MultiFrame 7700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for evertz MultiFrame 7700

Summary of Contents for evertz MultiFrame 7700

  • Page 1: Table Of Contents

    7700 MultiFrame Manual 7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver TABLE OF CONTENTS OVERVIEW ..........................1 INSTALLATION ........................2 2.1. CARE AND HANDLING OF OPTICAL FIBER ................3 SPECIFICATIONS .........................4 3.1. OPTICAL INPUT ........................4 3.2. SERIAL VIDEO OUTPUTS ......................4 3.3. SYSTEM PERFORMANCE ......................4 3.4.
  • Page 2 7700 MultiFrame Manual 7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver Figures Figure 1-1: 7707VR-4-HS Block Diagram......................1 Figure 2-1: 7707VR-4-HS Rear Panel ........................2 Figure 4-1: Location of Status Indicators and Jumpers ..................6 Figure 4-2: Card Edge Menu Structure ......................... 8 Tables Table 6–1: VistaLINK Monitored Parameters....................
  • Page 3 Oct 09 Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of Evertz products are for informational use only and are not warranties of future performance, either expressed or implied.
  • Page 4 7700 MultiFrame Manual 7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver WARNING Never look directly into an optical fiber. Non-reversible damage to the eye can occur in a matter of milliseconds. Do not hook up the 7707VT-4-HS DWDM cards and any 7707VR-4-HS series cards directly with a short fiber optic cable.

  • Page 5: Overview

    7700 MultiFrame Manual 7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver OVERVIEW The 7707VR-4-HS is a VistaLINK –enabled fiber optic receiver for two HD-SDI signals; or one HD-SDI ® signal and three SDI/SDTi signals; or four SDI/SDTi signals. This single card module demultiplexes up to four input signals that have been Time Domain Multiplexed (TDM) by the companion 7707VT-4-HS Quad SDI/Dual HD-SDI Fiber Transmitter module.

  • Page 6: Installation

    7700 MultiFrame Manual 7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver INSTALLATION The 7707VR-4-HS comes with a companion rear plate that has four BNC connectors and one SC/PC (shown), ST/PC or FC/PC optical connector. For information on mounting the rear plate and inserting the module into the frame, see the 7700FR manual chapter, section 3.

  • Page 7: Care And Handling Of Optical Fiber

    The transmission characteristics of the fiber are dependent on the shape of the optical core and therefore care must be taken to prevent fiber damage due to heavy objects or abrupt fiber bending. Evertz recommends that you maintain a minimum bending radius of 5 cm to avoid fiber-bending loss that will decrease the maximum attainable distance of the fiber cable.

  • Page 8: Specifications

    7700 MultiFrame Manual 7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver SPECIFICATIONS 3.1. OPTICAL INPUT Number of Inputs: Connector: Female SC/PC, ST/PC or FC/PC Return Loss: >25dB Operating Wavelength: 1270nm to 1610nm Maximum Input Power Standard Version: -1dBm -H Version: -8dBm Optical Sensitivity Standard Version: -20dBm -H Version:...

  • Page 9: Electrical

    7700 MultiFrame Manual 7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver 3.4. ELECTRICAL Voltage: +12V DC Power: 10 W EMI/RFI: Complies with FCC regulations for class A devices Complies with EU EMC directive 3.5. PHYSICAL 7700 or 7701 frame mounting Number of slots: Page - 5 Revision 1.3...

  • Page 10: Status Indicators And Displays

    7700 MultiFrame Manual 7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver STATUS INDICATORS AND DISPLAYS The 7707VR-4-HS has 7 LED Status indicators and a 4 digit alphanumeric display on the front card edge to show operational status of the card at a glance. The card edge pushbutton is used to select various modes on the alphanumeric display.

  • Page 11: Dot-Matrix Display / Card Status And Controls

    7700 MultiFrame Manual 7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver VIDEO 1 STATUS: Green indicates the presence of a valid signal on channel 1. LED Off indicates signal loss on channel 1. VIDEO 2 STATUS: Green indicates the presence of a valid signal on channel 2. LED Off indicates signal loss on channel 2.

  • Page 12: Figure 4-2: Card Edge Menu Structure

    7700 MultiFrame Manual 7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver Pushbutton Fault Status Menu Level 1 Menu Level 2 Menu Level 3 Indications Selections Selections Indications Standards Per Table VIN1 (Video Input 1) LOS (Loss of Signal) Indications VIN2 (Video Input 2) Standards Per Table LOS (Loss of SIgnal) Indications...

  • Page 13: Display Of Warning Status Indications

    7700 MultiFrame Manual 7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver 4.2.1. Display of Warning Status Indications The 7707VR-4-HS top level, default display shows whether there is a valid optical connection with the companion 7707VT-4-HS. The display will indicate the following: A valid optical connection exists between the 7707VT-4-HS and 7707VR-4-HS No valid optical link established between 7707VT-4-HS and 7707VR-4-HS.

  • Page 14: Displaying The Optical Power

    7700 MultiFrame Manual 7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver STAT HHXX Mode. HHXX MODE HSSS Mode. HSSS HHXX SHSS Mode. SHSS HSSS SHSS 4.2.4. Displaying the Optical Power The 7707VR-4-HS module can measure and display the input optical power over a range of -1dBm to –40dBm at increments of 1dBm for the standard version and -7dBm to –40dBm in 1dBm increments for the –H version.

  • Page 15: Setting Output Type On Loss Of Input

    7700 MultiFrame Manual 7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver 4.2.7. Setting Output Type on Loss of Input The 7707VR-4-HS can provide a valid black or totally muted output signal upon loss of video to any one or more inputs on the companion 7707VT-4-HS. In the case where there is loss of optical input, all of the outputs will be either valid black or muted.

  • Page 16: Jumpers And Local Controls

    7700 MultiFrame Manual 7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver JUMPERS AND LOCAL CONTROLS Several jumpers, located at the front of the module are used to preset various operating modes. Figure 4-1 shows the locations of the jumpers. 5.1. SELECTING WHETHER LOCAL FAULTS WILL BE MONITORED BY THE GLOBAL FRAME STATUS The FRAME STATUS jumper determines whether local faults (as shown by the Local Fault indicator) will be connected to the 7700FR frame's global status bus.

  • Page 17: Vistalink ® Remote Monitoring/Control

    1. An SNMP manager, also known as a Network Management System (NMS), is a computer running special software that communicates with the devices in the network. Evertz VL-Fiber demo Manager graphical user interface (GUI), third party or custom manager software may be used to monitor and control Evertz VistaLINK enabled fiber optic products.

  • Page 18: Vista Link ® Controlled Parameters

    7700 MultiFrame Manual 7707VR-4-HS Quad SDI/Dual HD-SDI Fiber Receiver 6.3. LINK CONTROLLED PARAMETERS ISTA ® The following parameters can be remotely controlled through the VistaLINK interface. ® Parameter Description Enable or disable bit error detection on the input optical signal (see section Input Error Detection 4.2.6).
