Hardware layout

The STM32F411 Discovery board has been designed around the STM32F411VET6
microcontroller in a 100-pin LQFP package.
Figure 2
LINK/V2, pushbutton, LED, Audio DAC, USB, ST MEMS gyroscope, ST MEMS
accelerometer + magnetometer, ST MEMS microphone, and connectors).
Figure 3
board.
illustrates the connections between the STM32F411VET6 and its peripherals (ST-
and help you to locate these features on the STM32F411 Discovery
Figure 4

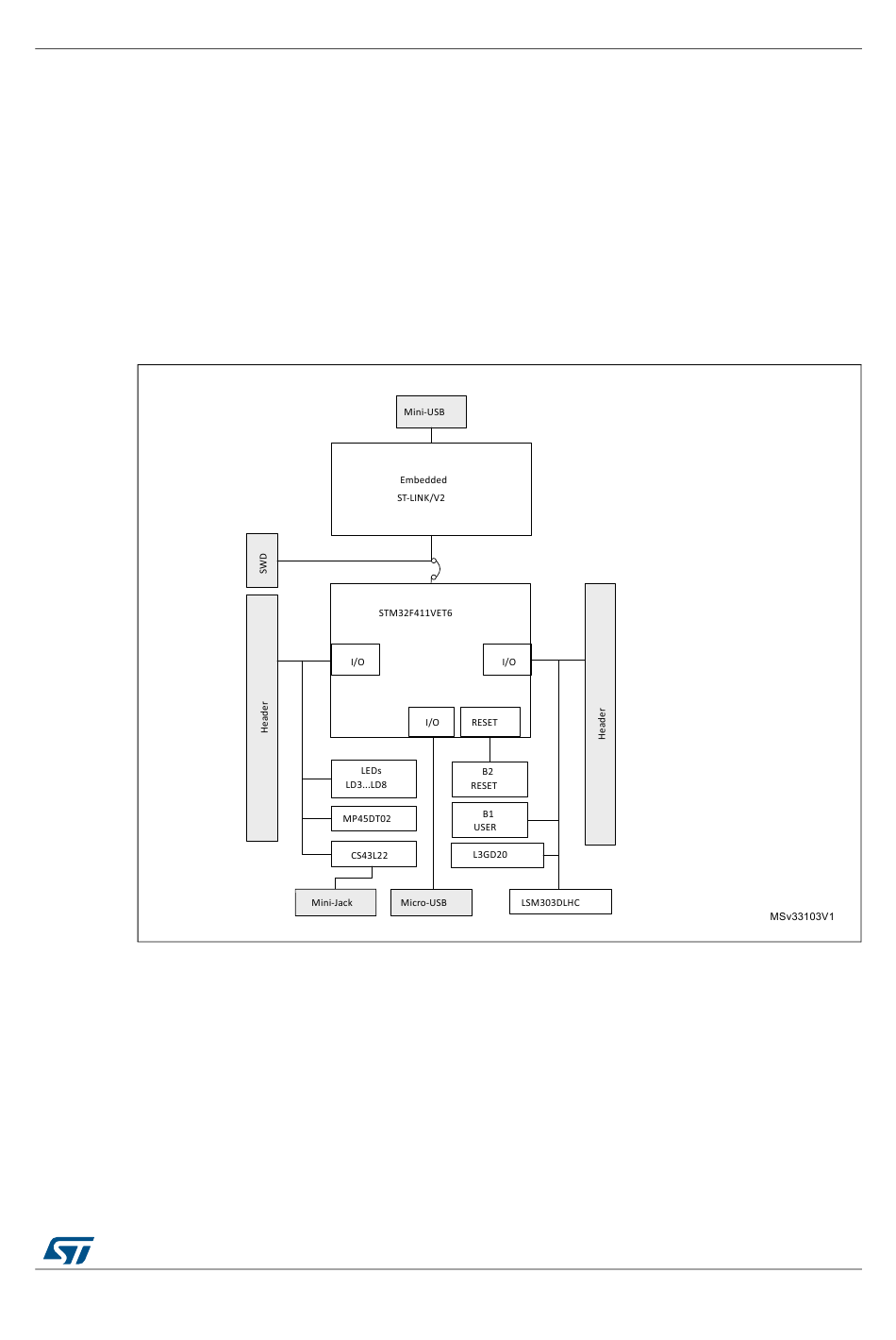

Figure 2. Hardware block diagram
