Using ST-LINK/V2 to program/debug the STM32F411 on board

To program the STM32F411 on board, simply plug in the two jumpers on CN3, as shown in
Figure 6
the STM32F411VET6 of the STM32F411 Discovery board.
in red, but do not use the CN2 connector as that could disturb communication with

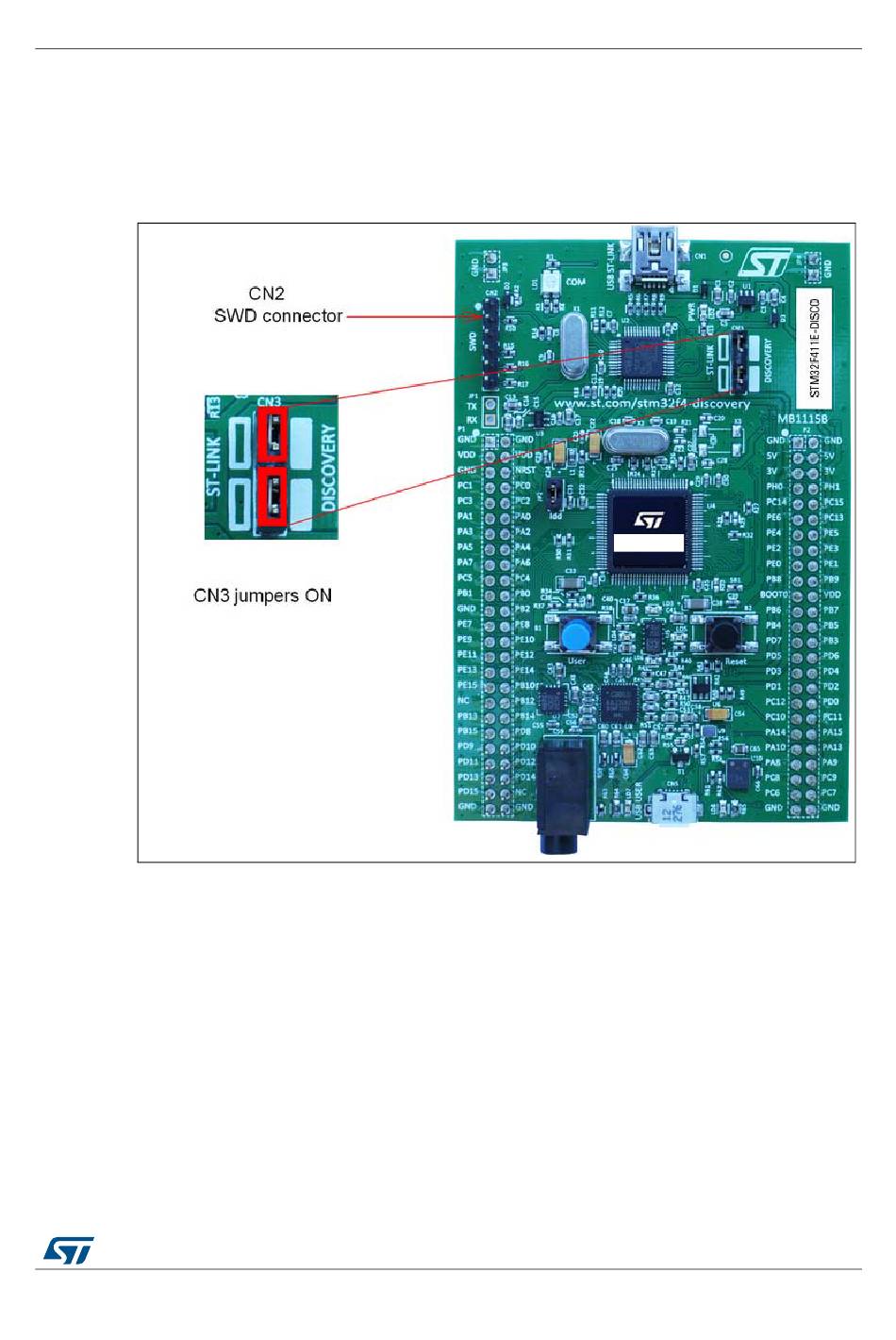

Figure 6. STM32F411 Discovery board connections image
