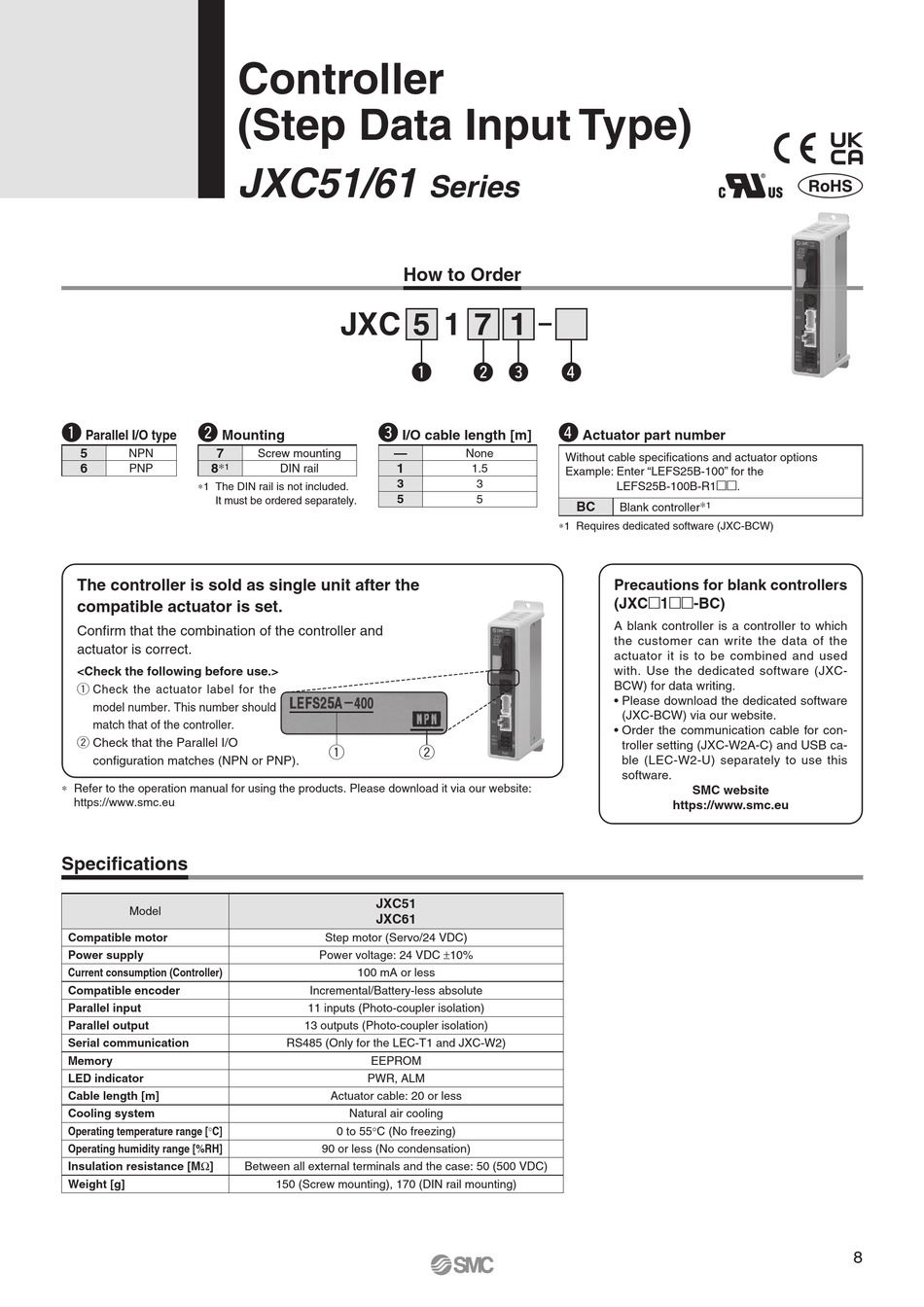

Controller (Step Data Input Type) Jxc51/61; Series; How To Order; Specifications - SMC Networks JXC Series Manual

q w
Parallel I/O type Mounting
5 7
NPN
∗
6 PNP 8 1
∗1 The DIN rail is not included.
It must be ordered separately.
The controller is sold as single unit after the
compatible actuator is set.
Confi rm that the combination of the controller and
actuator is correct.
<Check the following before use.>
q Check the actuator label for the
model number. This number should
match that of the controller.
w Check that the Parallel I/O
confi guration matches (NPN or PNP).
∗ Refer to the operation manual for using the products. Please download it via our website:
https://www.smc.eu
Specifi cations
Model
Compatible motor
Power supply
Current consumption (Controller)
Compatible encoder
Parallel input
Parallel output
Serial communication
Memory
LED indicator
Cable length [m]
Cooling system
Operating temperature range [°C]
Operating humidity range [%RH]
Insulation resistance [MΩ]
Weight [g]
Controller
(Step Data Input Type)
JXC51/61

How to Order

JXC 5 1 7 1
q
e
I/O cable length [m]
—
Screw mounting
DIN rail 1
3
5
q
JXC51
JXC61
Step motor (Servo/24 VDC)
Power voltage: 24 VDC ±10%
100 mA or less
Incremental/Battery-less absolute
11 inputs (Photo-coupler isolation)
13 outputs (Photo-coupler isolation)
RS485 (Only for the LEC-T1 and JXC-W2)
EEPROM
PWR, ALM
Actuator cable: 20 or less
Natural air cooling
0 to 55°C (No freezing)
90 or less (No condensation)
Between all external terminals and the case: 50 (500 VDC)
150 (Screw mounting), 170 (DIN rail mounting)

Series

w e r
r
Actuator part number
None
Without cable specifi cations and actuator options
1.5
Example: Enter "LEFS25B-100" for the
3
5
BC
∗1 Requires dedicated software (JXC-BCW)
w
LEFS25B-100B-R1 .
∗
Blank controller 1
Precautions for blank controllers
(JXC 1 -BC)
A blank controller is a controller to which
the customer can write the data of the
actuator it is to be combined and used
with. Use the dedicated software (JXC-
BCW) for data writing.
• Please download the dedicated software
(JXC-BCW) via our website.
• Order the communication cable for con-
troller setting (JXC-W2A-C) and USB ca-
ble (LEC-W2-U) separately to use this
software.
SMC website
https://www.smc.eu
