Wiring Example - SMC Networks JXC Series Manual

JXC51/61

Wiring Example

Parallel I/O Connector

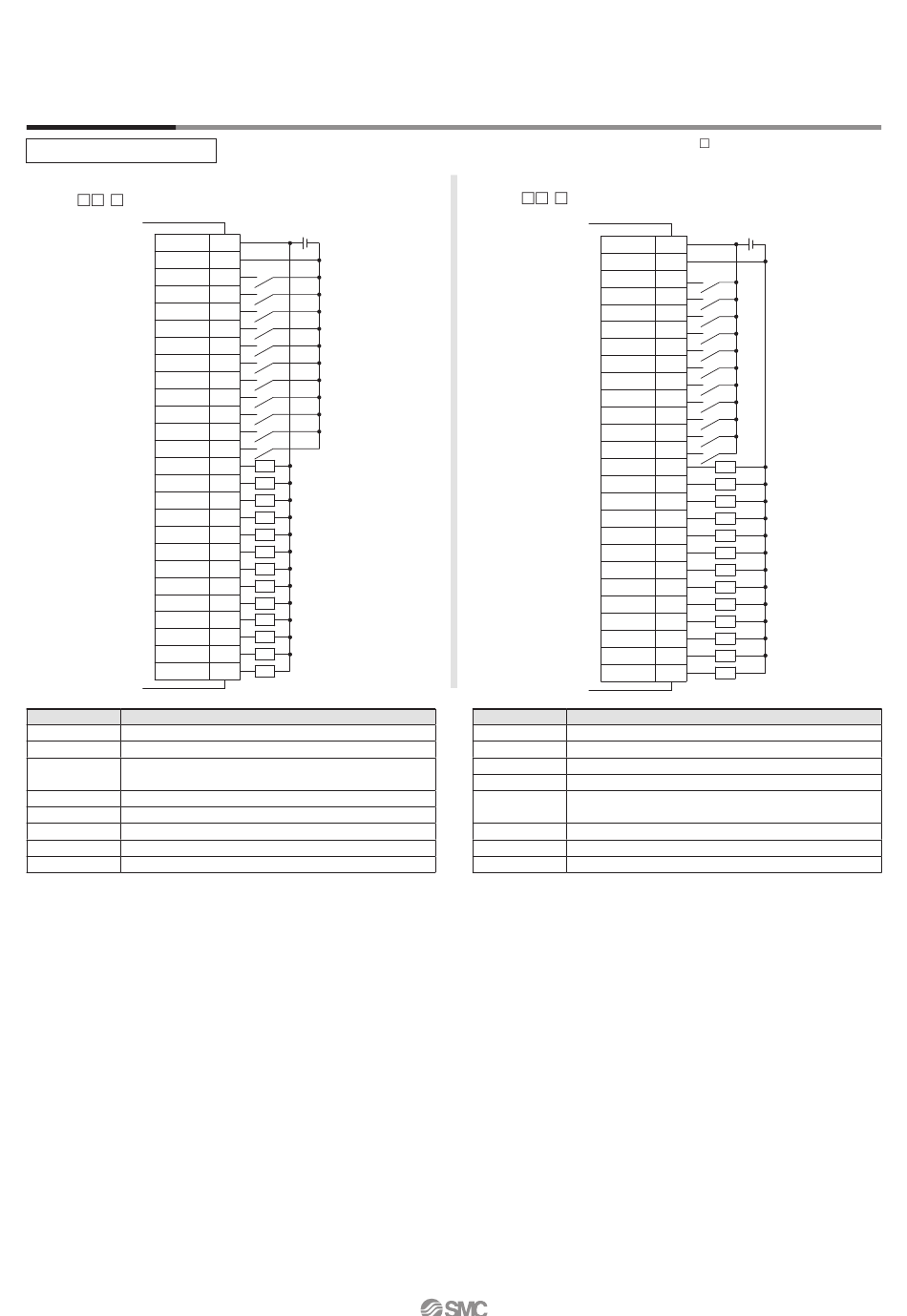

Wiring diagram
JXC51 - (NPN)
CN5
COM+
COM−
IN0
IN1
IN2
IN3
IN4
IN5
SETUP
HOLD
DRIVE
RESET
SVON
OUT0
OUT1
OUT2
OUT3
OUT4
OUT5
BUSY
AREA
SETON
INP
SVRE
∗ESTOP
∗ALARM
Input Signal
Name
COM+ Connects the power supply 24 V for input/output signal
COM− Connects the power supply 0 V for input/output signal
IN0 to IN5
(Input is instructed by combining IN0 to 5.)
SETUP
HOLD
DRIVE
RESET Resets alarm and interrupts operation
SVON
11
Series
∗ When you connect a PLC to the parallel I/O connector, use the I/O cable (LEC-CN5- ).
∗ The wiring changes depending on the type of parallel I/O (NPN or PNP).
Power supply 24 VDC
for I/O signal
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
B1
Load
B2
Load
B3
Load
B4
Load
B5
Load
B6 Load
B7 Load
B8
Load
B9 Load
Load
B10
B11
Load
B12
Load
B13 Load
Details
Step data specified bit no.
Instruction to return to origin
Temporarily stops operation
Instruction to drive
Servo ON instruction
JXC61 - (PNP)
CN5
COM+
COM−
IN0
IN1
IN2
IN3
IN4
IN5
SETUP
HOLD
DRIVE
RESET
SVON
OUT0
OUT1
OUT2
OUT3
OUT4
OUT5
BUSY
AREA
SETON
INP
SVRE
∗ESTOP
∗ALARM
Output Signal
Name
OUT0 to OUT5 Outputs the step data no. during operation
BUSY Outputs when the actuator is moving
AREA Outputs within the step data area output setting range
SETON Outputs when returning to origin
Outputs when target position or target force is reached
INP
(Turns on when the positioning or pushing is completed.)
SVRE
∗ESTOP ∗
1
OFF when EMG stop is instructed
∗ALARM ∗
1
∗1 Signal of negative-logic circuit (N.C.)
Power supply 24 VDC
for I/O signal
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
B1 Load
B2
Load
B3 Load
B4 Load
B5
Load
B6 Load
B7 Load
B8
Load
B9 Load
Load
B10
B11 Load
B12 Load
Load
B13
Details
Outputs when servo is on
OFF when alarm is generated
