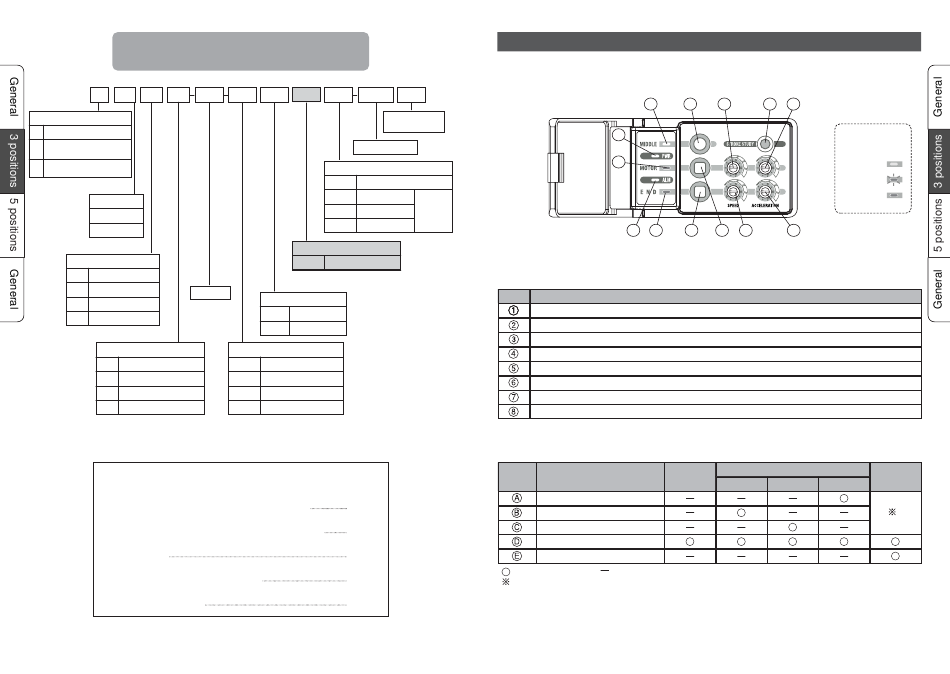

Positions; Names And Functions Of Controller; Example Of Internal Circuit And Wiring - SMC Networks e-Rodless E-MY2 Series Operation Manual

3 positions

E-MY2 C 16
100
Guide Type
C Cam follower guide type
Linear guide
H
single axis type
Linear guide
HT
double axis type
Nominal size
16
25
Speed type
L Low speed
M Medium speed
Stroke
Nil Standard speed
H High speed
Load type
Q Heavy load
Nil Standard load
E Medium load
D Light load
Note) Refter to the catalog for Stroke, Auto switch and Number of auto switches.
3 positions

Names and Functions of Controller

Example of Internal Circuit and Wiring

Setting
Operation Characteristics
Specifications
10
TA N M M9B
Number of
auto switches
Auto switch
Cable length
Nil Controller integrated type
M 1m
L 3m
Z 5m
Positioning stop number
Nil 3 positions
Output type
N NPN
P PNP
Motor placement
TA On the top, (left)
DA On the bottom, (left)
TB On the top, (right)
DB On the bottom, (right)
11
12
15
20
21
Names and Functions of Controller (3 positions)
Controller detail
Controller
separated
type
Switch
No.
Stroke learning switch
The switch to move the actuator to intermediate position and set the intermediate position
The switch to move the work to motor end
The switch to move the work to the other end
The rotary switch to set moving speed to motor end
The rotary switch to set moving speed to the other end
The rotary switch to set moving acceleration to motor end
The rotary switch to set moving acceleration to the other end
Display of the indicator lamp and basic operation
Symbol Description
MIDDLE indicator lamp(Green)
MOTOR indicator lamp(Green)
END indicator lamp(Green)
PWR indicator lamp(Green)
ALM indicator lamp(Red)
" " indicates light is on, "
1 See page 36, 37 and after for ALM display in case of error.
A 2 5 1
D
B
E C 4 3 6
Content/Function
When positioning completed
Power is
turn on
Motor side End side
" indicates light is off.
7
State of
indicator light
light
goes out
blink
lighting
8
In case of
error
Intermediate
1
11
