Normal Appearance of Operator Interface Panel

The FACP operator interface panel shows the following under normal conditions.
• The green power LED is ON - indicating the panel is receiving AC power.
• All other LEDs are off, with the exception of facility specific control keys and the customizable LEDs.
• The multi-line LCD shows either a text screen indicating normal operation (see Figure 3) or a sitemap (see Figure 4).
Note: If the appearance of the operator interface panel is not as shown above, refer to the information in
Conditions
and
Supervisory Conditions
page 7

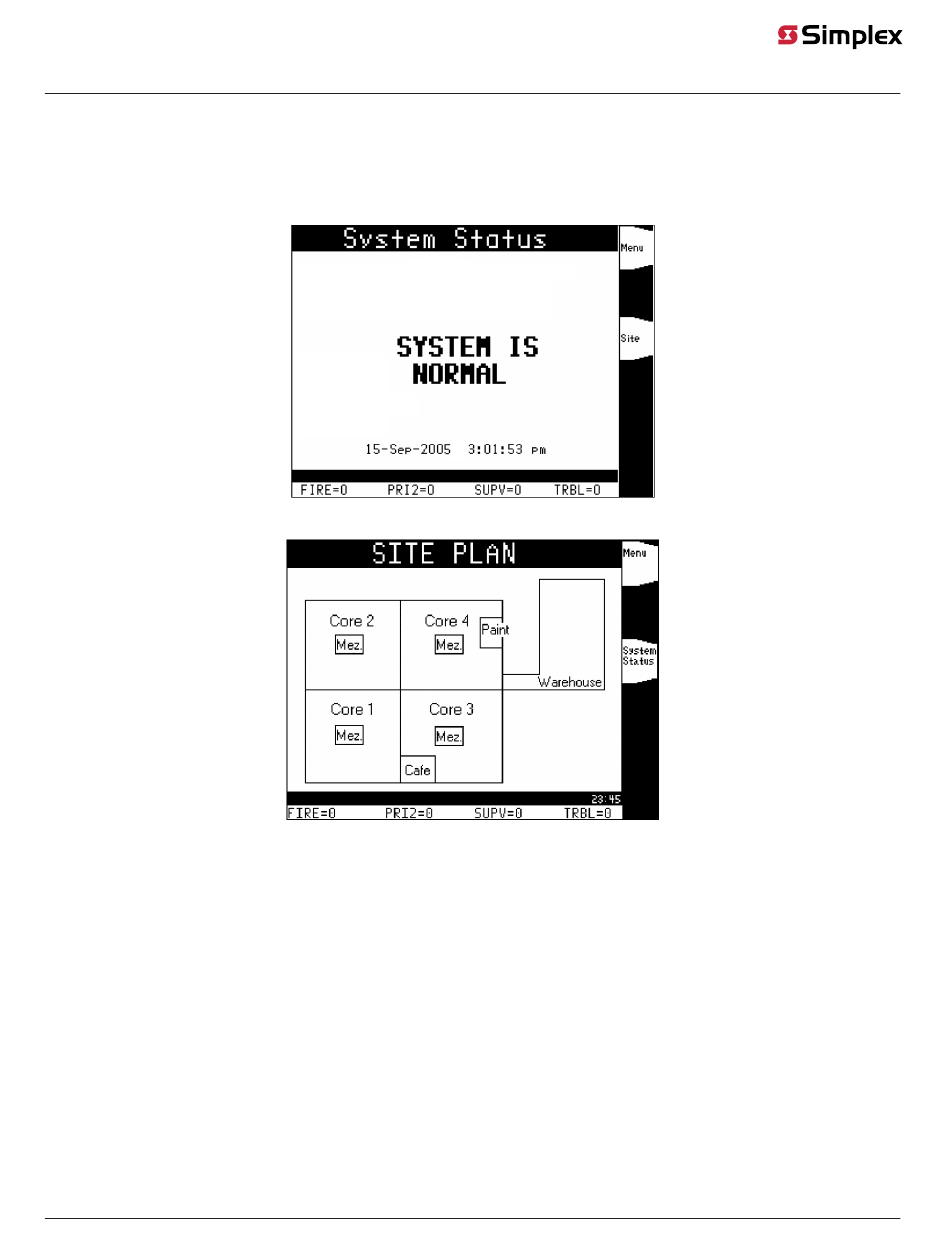

Figure 3: Normal Operation Text Screen
Figure 4: Normal Operation Sitemap Screen
for instructions on managing the alarm, supervisory, or trouble condition.
InfoAlarm Operator's Manual 4100U, 4100ES, 4010ES
Alarm
Conditions,
Trouble
579-685 Rev. D
