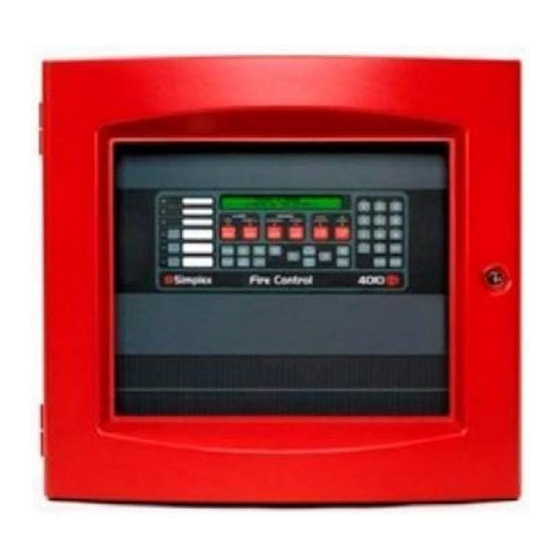

Simplex 4010ES Series Installation Instructions Manual

Class a/class b zone modules
Hide thumbs Also See for 4010ES Series:

Advertisement

Quick Links

Download this manual
4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions
Cautions, Warnings, and Regulatory Information
READ AND SAVE THESE INSTRUCTIONS Follow the instructions in this installation manual. These instructions must be followed to avoid damage to
this product and associated equipment. Product operation and reliability depend upon proper installation.
DO NOT INSTALL ANY SIMPLEX™ PRODUCT THAT APPEARS DAMAGED Upon unpacking your Simplex product, inspect the contents
of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify an authorized Simplex
product supplier.
ELECTRICAL HAZARD Disconnect electrical field power when making any internal adjustments or repairs. All repairs should be
performed by a representative or an authorized agent of your local Simplex product supplier.
STATIC HAZARD Static electricity can damage components. Handle as follows:
• Ground yourself before opening or installing components.
• Prior to installation, keep components wrapped in anti-static material at all times.
FCC RULES AND REGULATIONS – PART 15. This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
SYSTEM REACCEPTANCE TEST AFTER SOFTWARE CHANGES To ensure proper system operation, this product must be tested in accordance with
NFPA72® after any programming operation or change in site-specific software. Reacceptance testing is required after any change, addition or deletion
of system components, or after any modification, repair or adjustment to system hardware or wiring.
All components, circuits, system operations, or software functions known to be affected by a change must be 100% tested. In addition, to ensure that
other operations are not inadvertently affected, at least 10% of initiating devices that are not directly affected by the change, up to a maximum of 50
devices, must also be tested and proper system operation verified.
Introduction
This publication describes the installation procedure for the following modules.
Model
4100-5001
4100-5004/
4120-5004
4100-5005
4010-9920
4100-5011/
4100-5012
4100-5014/
4120-5014
4100-5015
4010-9921
Related Documentation
• Field Wiring Diagram for 4100 Power Limited (842-438) or,
• Field Wiring Diagram for 4100 Non Power Limited (842-437)
• 4100ES Fire Alarm System Installation Guide (574-848)
• 4010ES Fire Alarm System Installation Guide (579-989)
Setting the Card Address Switch
Switches
Switch SW1 on the monitor daughter cards is a bank of eight dip switches. From left to right (see figure below) these switches are designated as SW1-1
through SW1-8. The function of these switches is as follows:
• SW1-1. This switch sets the baud rate for the serial communication line running between the card and the CPU. Set this switch to ON.
Description
8 Zone Class B – Connects Fire Initiating Devices
Only
8 Zone Class B – Connects either Fire Initiating
Devices or Security Devices
8 Zone Class B – Connects either Fire Initiating
Devices or Security Devices
8 Zone Class B – Connects Fire Initiating Devices
Only
8 Zone Class A – Connects Fire Initiating Devices
Only
8 Zone Class A – Connects either Fire Initiating
Devices or Security Devices
8 Zone Class A – Connects either Fire Initiating
Devices or Security Devices
8 Zone Class A – Connects Fire Initiating Devices
Only
Required Back Box
2975-91xx Back Box (4100)
2975-91xx Back Box (4100)
2975-94xx Back Box (4100U/4100ES)
4010ES Back Boxes
2975-91xx Back Box (4100)
2975-91xx Back Box (4100)
2975-94xx Back Box (4100U/4100ES)
4010ES Back Boxes
*0579205H*
579-205 Rev. H

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4010ES Series and is the answer not in the manual?

Questions and answers

Related Manuals for Simplex 4010ES Series

Summary of Contents for Simplex 4010ES Series

  • Page 1 DO NOT INSTALL ANY SIMPLEX™ PRODUCT THAT APPEARS DAMAGED Upon unpacking your Simplex product, inspect the contents of the carton for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify an authorized Simplex product supplier.
  • Page 2 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions • SW1-2 through SW1-8. These switches set the card's address within the FACP. (These switches must be set to the value assigned to the card by the Programmer.) Refer to Figure 2 for a complete list of the switch settings for all of the possible card addresses. Move a switch to the down position to turn it ON or to the up position to turn it OFF.
  • Page 3 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Figure 2: Card Addresses Installing Motherboards into 2975-91xx Back Boxes (4100) The zone modules can be mounted to 4100 Back Boxes (PID series 2975-91xx), 4100U/ 4100ES Back Boxes (PID series 2975-94xx), or 4010ES Back Boxes.
  • Page 4 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions • If used, the Class B motherboard (575-275) must be installed to the left of the relay cards. If a physical bridge is used with the Class B motherboard, it must be to the right of any motherboards using NICs. This allows for earth ground detection via the physical bridge. Install the motherboard as described below.
  • Page 5 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Installing into a 2975-91xx Expansion Bay Review the following guidelines before mounting the motherboard into a 2975-91xx Expansion Bay. • If a power supply is installed in the bay, it must be installed on the far right of the bay and any relay modules must be installed in the slots immediately to its left.
  • Page 6 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Figure 5: Power and Communication Wiring for Motherboards (4100) Installing Motherboards into 2975-94xx Back Boxes (4100U/4100ES) The zone modules can be mounted to 4100 Back Boxes (PID series 2975-91xx), 4100U/4100ES Back Boxes (PID series 2975-94xx), or 4010ES Back Boxes.
  • Page 7 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Attach four lockwashers and metal standoffs to the chassis, and secure the motherboard to the chassis using four #6 screws. Figure 6: Installing the Motherboard into a 4100ES CPU bay Figure 7: Installing the Motherboard into a 4100U/4100ES CPU Bay page 7 579-205 Rev.
  • Page 8 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Installing into a 2975-94xx Expansion Bay When installing 2 x 11 ½-inch motherboards in a 4100U/4100ES expansion bay, adhere to the following guidelines: • Each expansion bay assembly includes a chassis, two end supports, one LED/switch frame, and a power distribution interface (PDI) board. •...
  • Page 9 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Use the following procedure when installing motherboards in an expansion bay. Start with the second slot from the left and fill to the right. Orient the motherboard with the connector labeled J1 on the right and the header labeled P1 on the left. Attach four metal threaded standoffs and lockwashers into the screw holes on the chassis.
  • Page 10 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Insert the harness connector with the white wire into the P3 connector. Note that the P3 connector has eight pins. Insert the harness connector on either the top four pins or the bottom four pins, not in the middle. Figure 10: Power and Communication Wiring for Motherboard (4100U/4100ES) Installing Motherboards into 4010ES Back Boxes The zone modules can be mounted to 4100 Back Boxes (PID series 2975-91xx), 4100U/4100ES Back Boxes (PID series 2975-94xx) or 4010ES back...
  • Page 11 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Figure 11: Class A 8 Zone Card Assembly page 11 579-205 Rev. H...
  • Page 12 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Figure 12: Class B 8 Zone Card Assembly page 12 579-205 Rev. H...
  • Page 13 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Figure 13: One-Bay Zone Card Mounting Area Use the following directions to mount the Class A and B assemblies inside the 4010ES panel. Attach the 8V DC Converter and the Zone Card Motherboard in the area indicated by Figure 13. Use the pre-drilled holes in the bay pan, as well as stand-offs and metal screws as shown in Figure 10 and Figure 11.

  • Page 14: Installing The Daughter Card

    4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Figure 14: Zone Card Wiring Attach the stripped end on harness 734-244 to connectors "24C" and "24+" on the 8V DC Converter. Slide the Zone Card into its slot on the Motherboard (Figure 10 or Figure 11). Connect the Zone Card to the Motherboard with zip ties.

  • Page 15: Wiring Guidelines

    • All wiring is supervised. • Conductors must test free of all grounds. • Power must come from a Simplex-approved power supply. • All wiring must be done using copper conductors only, unless noted otherwise. • If shielded wire is used, the metallic continuity of the shield must be maintained throughout the entire cable length.
  • Page 16 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions • A system ground must be provided for earth detection and lightning protection devices. This connection must comply with approved earth detection per NFPA780. • Only system wiring can be run together in the same conduit. •...

  • Page 17: Power-Limited Guidelines

    4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Power-Limited Guidelines Make sure these guidelines are accounted for before wiring for power-limited systems: • Non-power limited field wiring (AC power, batteries, City connection) must be installed and routed in the shaded areas shown in Figure 16. •...
  • Page 18 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Figure 17: The 2098-9739 EOL relay Class A Monitor Zone Wiring Class A Wiring This section shows typical wiring for a Class A monitor or security device circuit. Devices connect in the same manner to any of the following monitor zone modules.
  • Page 19 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Specific Wiring Guidelines for Class A Zone Modules • If a zone is not used, connect a 3.3 K, 1 W resistor (378-017) across zone terminals as shown in the figure. •...
  • Page 20 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Specific Guidelines for Wiring a Waterflow Switch to a Class A Zone Module • Circuit is supervised. Supervisory power is 7.3 mA @ 24 VDC. • Rating: 20.4 to 32.0 VDC 60 mA @ 24 VDC •...
  • Page 21 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Specific Wiring Guidelines for Class B Zone Modules • If a zone is not used, connect a 3.3 K, 1 W resistor (378-017) across zone terminals as shown in the figure. •...
  • Page 22 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Specific Guidelines for Wiring a Waterflow Switch to a Class B Zone Module • If a zone is not used, connect a 3.3 K, 1 W resistor (378-017) across zone terminals.
  • Page 23 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Wiring for One Zone Figure 22 shows a waterflow and tamper switch, both of which are normally open devices, wired to a single Class B monitor zone ( 4100-5001, 4100-5004, 4100-5005 or 4010-9920).
  • Page 24 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Specific Guidelines for Wiring a Normally Closed Tamper Switch to a Class B Zone Module • If a zone is not used, connect a 3.3 K, 1 W resistor (378-017) across zone terminals.
  • Page 25 4010ES and 4100 4120-Series Class A/Class B Zone Modules Installation Instructions Figure 24: 4100-5004 / 4120-5004 or 4100-5005 Security Wiring (1) • Wiring is 18 AWG minimum, or to local code. • Conductors must test free of all grounds. • If a zone is not used, connect an 8.2 K, 1/2 W resistor (378-090) across zone terminals. •...
  • Page 26 Figure 25: 4100-5004 / 4120-5004 or 4100-5005 Security Wiring (2) • Wiring is 18 AWG minimum, or to local code. • Conductors must test free of all grounds. • If a zone is not used, connect an 8.2 K, 1/2 W resistor (378-090) across zone terminals. •...
