Direct Point Call-Up Screen Options

Figure 23 shows an example of the Direct Point Call-Up screen. The options available in the Direct Point Call-Up screen are listed in the
table below:
Action
Full Label
Enable
Disable
Select Item
Delete
CLR/Exit
page 23

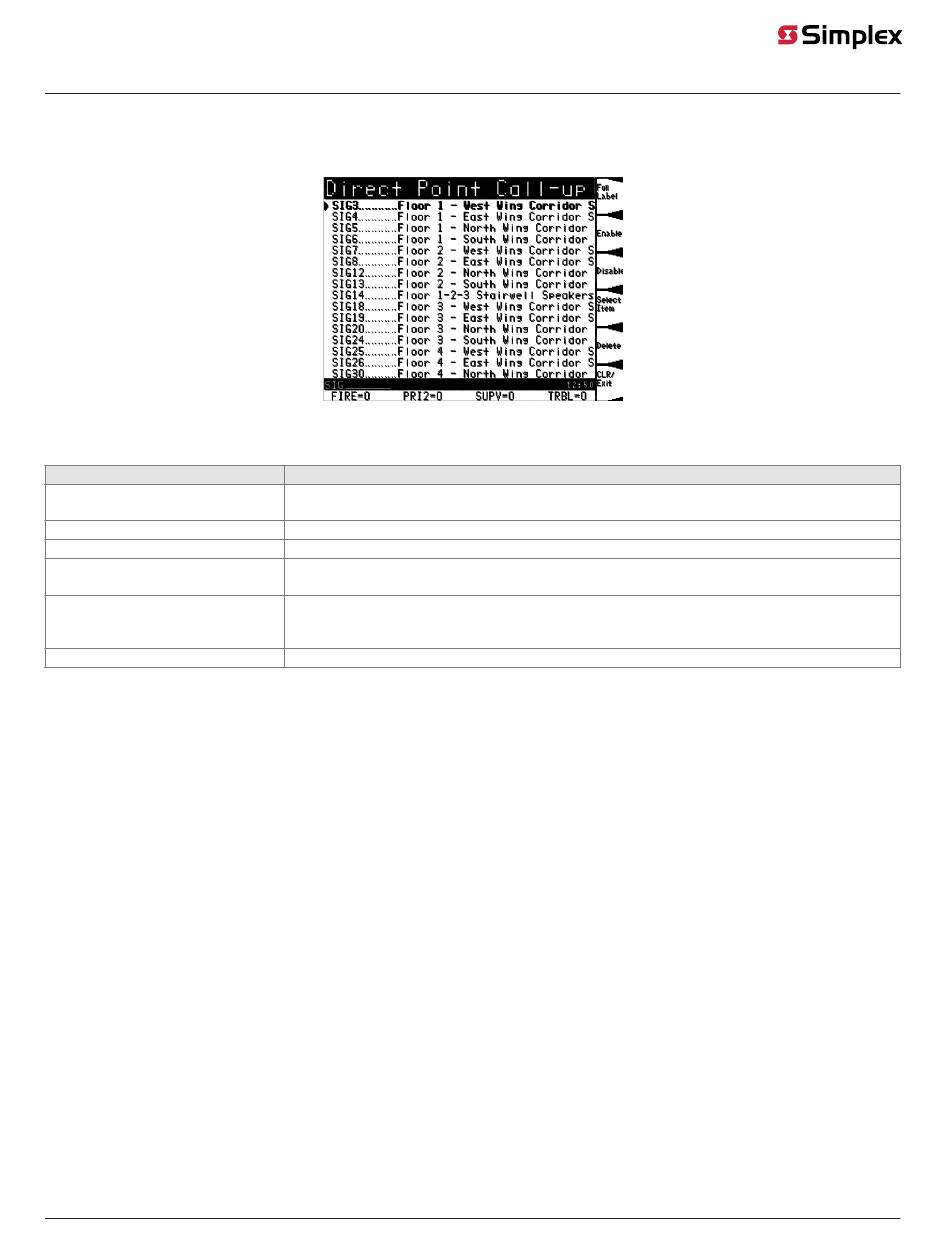

Figure 23: Direct Point Call-up Screen
Table 4: Screen options
Shows the entire custom label on the line. Release the button to revert back to the standard
format.
Enables the selected point.
Disables the selected point.
Displays point information on screen. "Enter" can also be pressed to display the point info to the
display.
Deletes a character from the prompt. When searching for a point, the screen will attempt to match
the point based on the keys pressed. Deleting a character will force an additional match attempt
based on the remaining characters.
Exits the screen. The CLR/Exit button on the entry keypad can also be used to exit the screen.
