• Display First-8: The "First-8" selection displays the first eight alarm conditions. Each alarm report shows the order in which the
alarms were received, followed by the custom label and the point type. The alarm time will not display in the First-8 screen.
• Sitemap: The sitemap can be selected as the default display in the FACP Programmer, or switched to at any time by pressing
the "Site" softkey. Points for a FACP system can be placed on the sitemap in the FACP Programmer. In an alarm mode, the icon
representing the point reporting the alarm flashes. The icon flashes as long as it goes unacknowledged. Once the point has been
acknowledged, the icon ceases to flash and remains steady. If a point close to an unacknowledged point reports an alarm condition
the icon for the new unacknowledged alarm appears over the neighboring icon. Refer to 579-849 ES Panel Programmer's Manual for
instructions on allocating site point coordinates.
• Direct to Alarm List: The alarm list displays all devices that have reported an abnormal condition since the last system reset. Each
entry in the list displays the custom label followed by the point type and its condition. Detailed device information is selected by
pressing and holding the "More info" softkey. The time of the alarm occurrence is displayed by pressing and holding the "Event Time"
softkey. All unac- knowledged alarms entries flash until acknowledged.
• General Status Message: A general status message display appears in a text box. In the centre of the screen, a message indicates
the alarm status. Upon acknowledgement of the alarm, the screen will displays the alarm list.
page 9

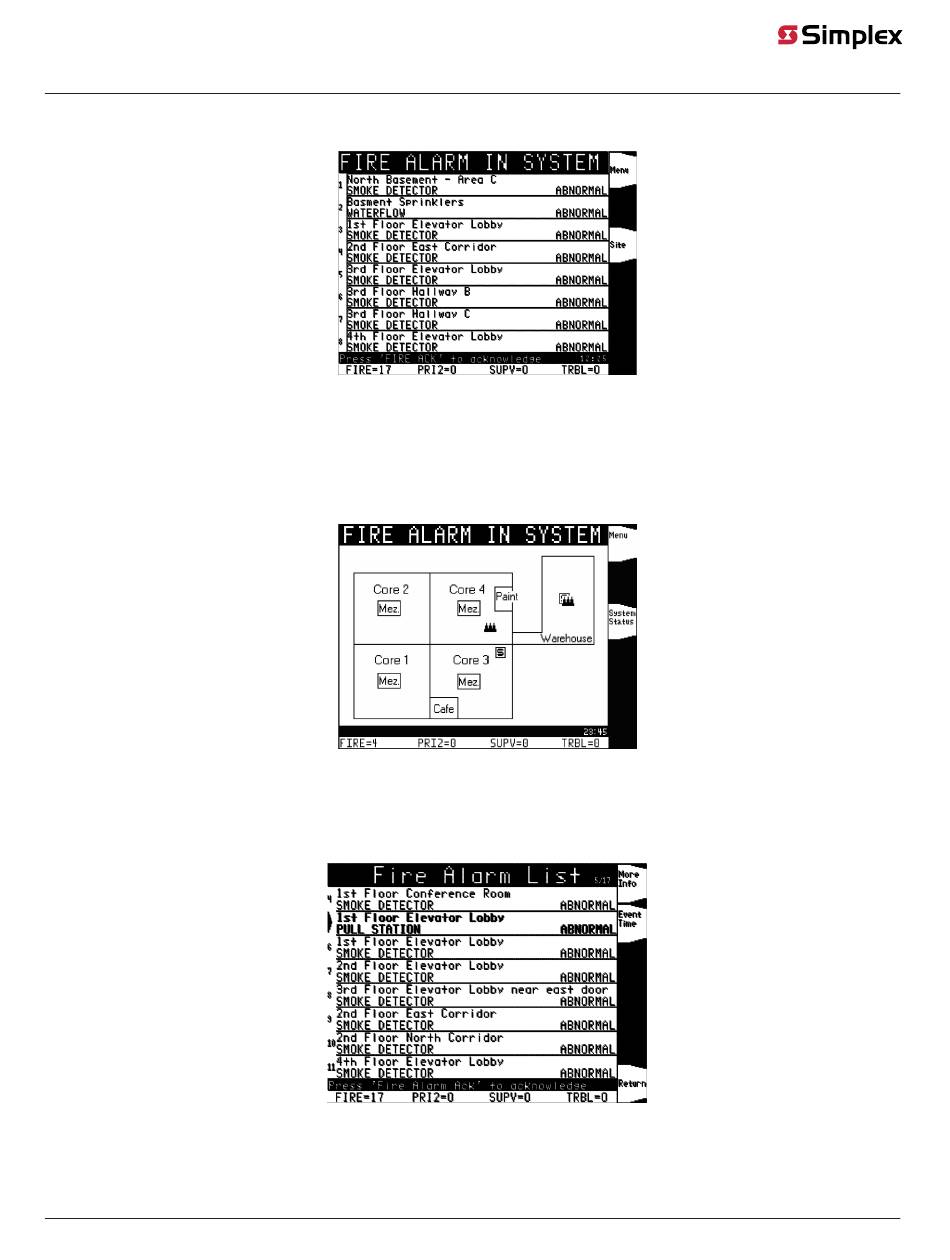

Figure 7: First-8 Display
Figure 8: Sitemap Display
Figure 9: Direct to Alarm List Display
InfoAlarm Operator's Manual 4100U, 4100ES, 4010ES
579-685 Rev. D
