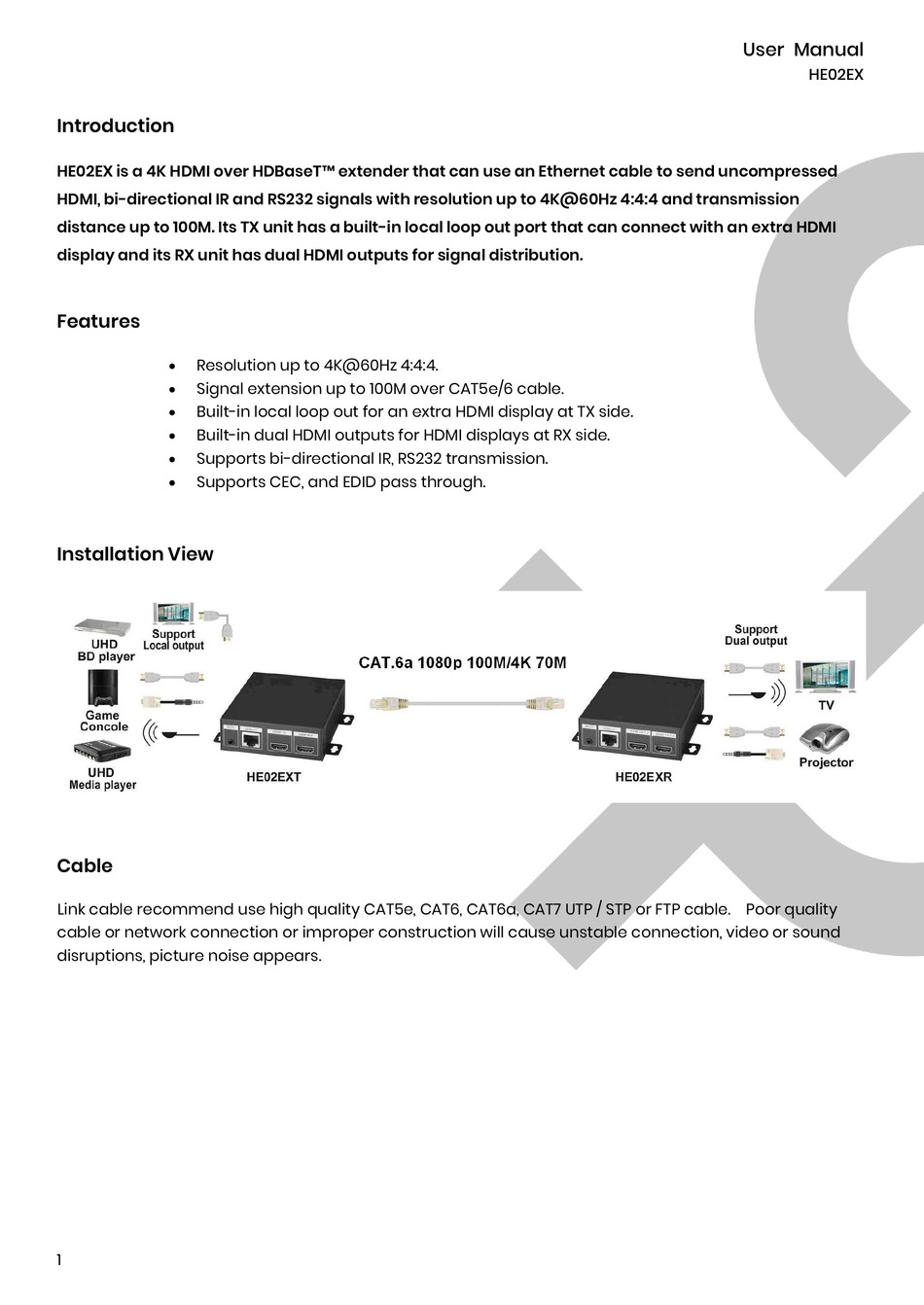

Installation View - SC&T HE02EX User Manual

Introduction
HE02EX is a 4K HDMI over HDBaseT™ extender that can use an Ethernet cable to send uncompressed
HDMI, bi-directional IR and RS232 signals with resolution up to 4K@60Hz 4:4:4 and transmission
distance up to 100M. Its TX unit has a built-in local loop out port that can connect with an extra HDMI
display and its RX unit has dual HDMI outputs for signal distribution.
Features
Resolution up to 4K@60Hz 4:4:4.

Signal extension up to 100M over CAT5e/6 cable.

Built-in local loop out for an extra HDMI display at TX side.

Built-in dual HDMI outputs for HDMI displays at RX side.

Supports bi-directional IR, RS232 transmission.

Supports CEC, and EDID pass through.


Installation View

Cable
Link cable recommend use high quality CAT5e, CAT6, CAT6a, CAT7 UTP / STP or FTP cable. Poor quality
cable or network connection or improper construction will cause unstable connection, video or sound
disruptions, picture noise appears.
