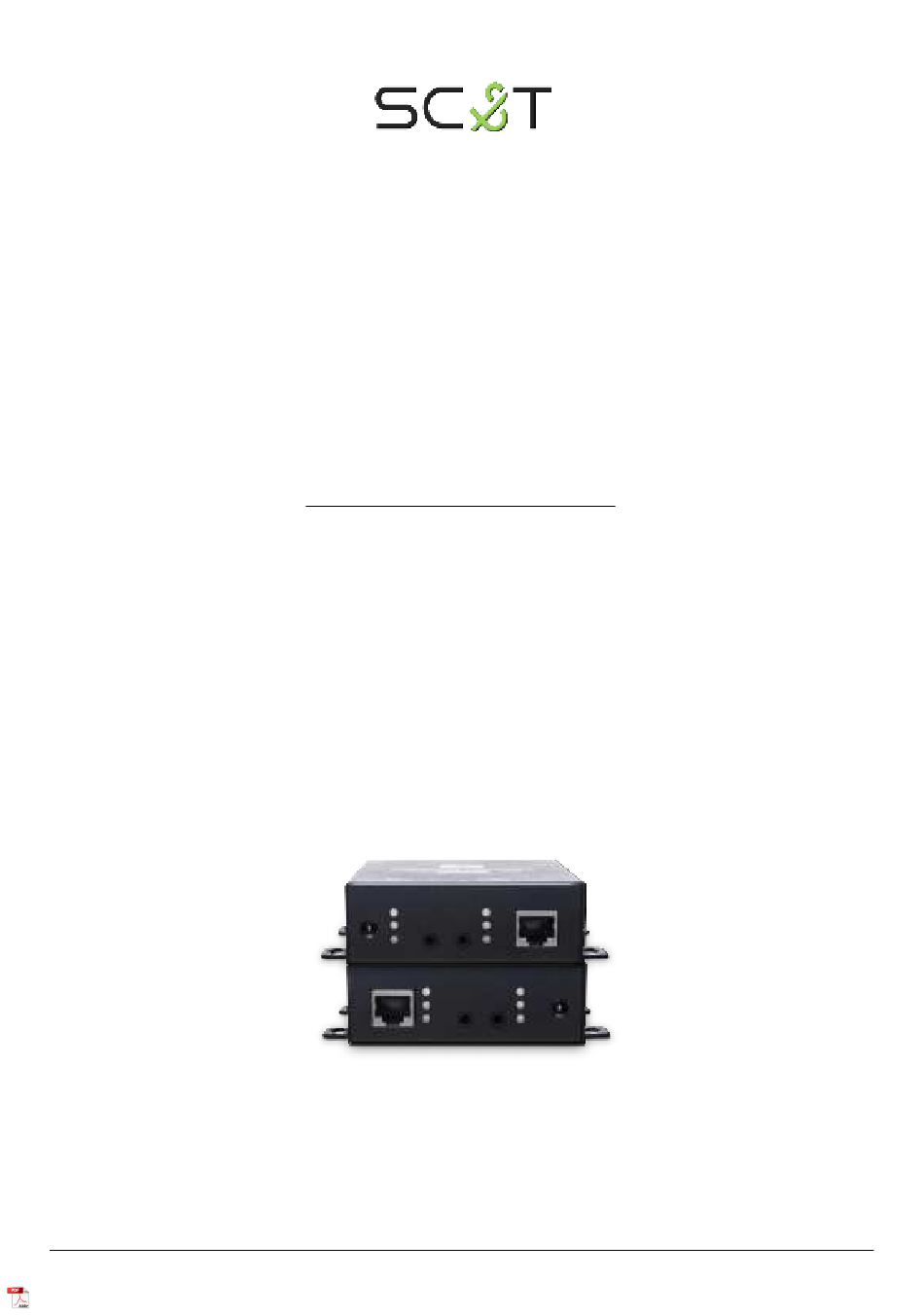

- Page 1 HDMI over HDBaseT Extender User Manual Model : HE02EIX 4K 60Hz 4:4:4 HDMI & IR/R232 CAT5e Extender 70M Smart Cabling & Transmission Corp.
-
Page 2: Installation View
HE02EI Introduction HE02EIX is a 4K HDMI over HDBaseT™ extender that can use an Ethernet cable to send uncompressed HDMI, bi-directional IR and RS232 signals with resolution up to 4K@60Hz 4:4:4 and transmission distance up to 70M. Its TX unit has a built-in local loop out port that can connect with an extra HDMI display and its RX unit has dual HDMI outputs for signal distribution. - Page 3 User Manual HE02EI HDBaseT Distance Chart by Different Cable Cable Type Range Supported Video CAT5e / CAT6 Up to 1080p 60Hz 12bit CAT6e / CAT7 CAT5e / CAT6 Up to 4096x2160@60Hz 4:4:4 CAT6a / CAT7 If connection through the wall socket, the cable length must less 5 meters between HDMI extender and wall jack, as below drawing MAX 70M Wall Jack...
- Page 4 User Manual HE02EI Panel View HE02EIXT HE02EIXR LED Indication Color Status HE02EIXT HE02EIXR GREEN LINK ON: HDBaseT Linking BLUE VIDEO ON: Input signal 4K@60Hz 4:4:4 FW UP ON: Firmware Update Color Status HE02EIXT HE02EIXR GREEN ON: Power normal BLUE IR RX ON: Receiving IR signal IR TX ON: Sending IR signal...
-
Page 5: Package Include
User Manual HE02EI Firmware updated Switch 1 2 3 4 RS232 ON: Firmware Update, OFF: RS232 Extender 2. Reserve Must Keep Off 3. Low Power Mode ON: Turn off power saving mode, OFF: Turn on power saving mode 4. Reserve Must Keep Off RS232 Define DB9 (F)/3.5mm STEREO PHONE JACK... -
Page 6: Troubleshooting
User Manual HE02EI Trouble Shooting The wiring must away from any equipment with electromagnetic wave, i.e.: mobile phone, microwave, radio equipment, fluorescent lamp, high voltage power lines. Under HDMI 2.0 mode, must use Premium certified HDMI cable. 3. EDID pass through for HE02EXT transmitter input and HE02EXR receiver output 1 only. 4. -
Page 7: Specification
User Manual HE02EI Specification ITEM NO. HE02EIXT HE02EIXR Support Compliance HDMI 2.0, HDCP 2.2, 1.4, DVI Max. DisplayPort Resolution 4K@60Hz 4:4:4 Max. Transmission Distance 70M at 1080p@60Hz, 40M at 4K@60Hz Video Bandwidth 10.2 Gbps Audio Format 7.1 LPCM 192KHz, Dolby TrueHD, DTS-HD MA 30-60Khz, ±...
