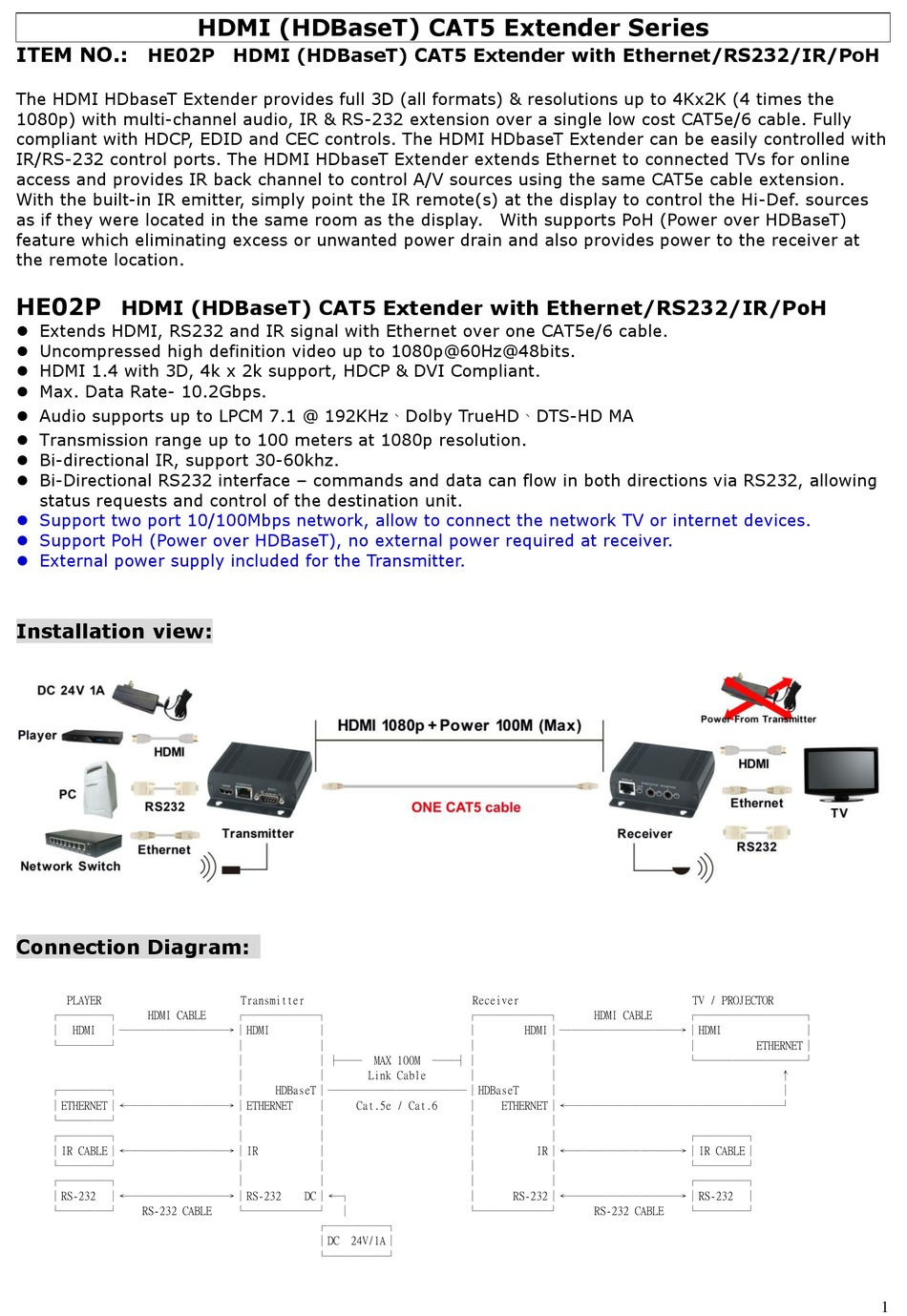

ITEM NO.:
HE02P HDMI (HDBaseT) CAT5 Extender with Ethernet/RS232/IR/PoH
The HDMI HDbaseT Extender provides full 3D (all formats) & resolutions up to 4Kx2K (4 times the
1080p) with multi-channel audio, IR & RS-232 extension over a single low cost CAT5e/6 cable. Fully
compliant with HDCP, EDID and CEC controls. The HDMI HDbaseT Extender can be easily controlled with
IR/RS-232 control ports. The HDMI HDbaseT Extender extends Ethernet to connected TVs for online
access and provides IR back channel to control A/V sources using the same CAT5e cable extension.
With the built-in IR emitter, simply point the IR remote(s) at the display to control the Hi-Def. sources
as if they were located in the same room as the display. With supports PoH (Power over HDBaseT)
feature which eliminating excess or unwanted power drain and also provides power to the receiver at
the remote location.

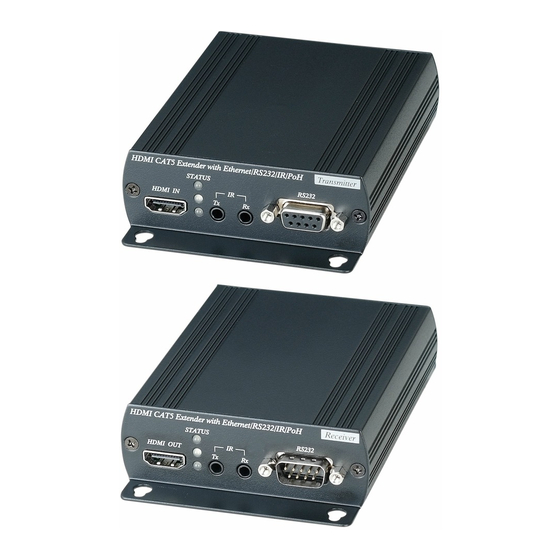

HE02P
HDMI (HDBaseT) CAT5 Extender with Ethernet/RS232/IR/PoH
 Extends HDMI, RS232 and IR signal with Ethernet over one CAT5e/6 cable.
 Uncompressed high definition video up to 1080p@60Hz@48bits.
 HDMI 1.4 with 3D, 4k x 2k support, HDCP & DVI Compliant.
 Max. Data Rate- 10.2Gbps.
 Audio supports up to LPCM 7.1 @ 192KHz、Dolby TrueHD、DTS-HD MA
 Transmission range up to 100 meters at 1080p resolution.
 Bi-directional IR, support 30-60khz.
 Bi-Directional RS232 interface – commands and data can flow in both directions via RS232, allowing
status requests and control of the destination unit.
 Support two port 10/100Mbps network, allow to connect the network TV or internet devices.
 Support PoH (Power over HDBaseT), no external power required at receiver.
 External power supply included for the Transmitter.
Installation view:
Connection Diagram:
PLAYER
┌────┐
HDMI CABLE
│ HDMI │─────────→│HDMI
└────┘
┌────┐
│ETHERNET│←────────→│ETHERNET
└────┘
┌────┐
│IR CABLE│←────────→│IR
└────┘
┌────┐
│RS-232 │←────────→│RS-232
└────┘
RS-232 CABLE
HDMI (HDBaseT) CAT5 Extender Series
Transmitter
┌──────┐
│├── MAX 100M ──┤│
Link Cable
HDBaseT│────────────│HDBaseT
Cat.5e / Cat.6
DC│←┐
└──────┘ │
┌─────┐
│DC 24V/1A│
└─────┘
Receiver
┌──────┐
HDMI CABLE
HDMI│──────────→│HDMI
ETHERNET│←──────────────────┘
IR│←─────────→│IR CABLE│
RS-232│←─────────→│RS-232 │
└──────┘
RS-232 CABLE
TV / PROJECTOR
┌─────────┐
ETHERNET│
└─────────┘
┌────┐
└────┘
┌────┐
└────┘
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HE02P and is the answer not in the manual?

Questions and answers

Summary of Contents for SC&T HE02P

  • Page 1 HDMI (HDBaseT) CAT5 Extender Series ITEM NO.: HE02P HDMI (HDBaseT) CAT5 Extender with Ethernet/RS232/IR/PoH The HDMI HDbaseT Extender provides full 3D (all formats) & resolutions up to 4Kx2K (4 times the 1080p) with multi-channel audio, IR & RS-232 extension over a single low cost CAT5e/6 cable. Fully compliant with HDCP, EDID and CEC controls.
  • Page 2 Cable: Link cable recommend use high quality Cat.5e 、 Cat.6 、 Cat.6a 、 Cat.7 UTP / STP or FTP cable. Poor quality cable or network connection or improper construction will cause unstable connection, video or sound disruptions, picture noise appears. Transmission Distance: The maximum transmission distance up to 100meters, use lower resolution won’t extend longer distance...
  • Page 3 HDBaseT Port Status LED : Color LED Function HE02PT HE02PR Green HDBaseT Linking On: HDBaseT Linking , Flash: Low Power Mode Blue Reserve No Function HDMI On: With HDCP , Flash: Without HDCP , Off: HDMI Unlink 10/100 Ethernet Port : Color LED Function HE02PT...
  • Page 4 ITEM NO HE02PT HE02PR HDMI Connector HDMI Type A x 1 HDMI Video Up to 1080p@60Hz@48bits、3D、4K x 2K HDMI Audio Up to LPCM 7.1 192Khz、Dolby TrueHD、DTS-HD MA HDBaseT Connector RJ45 x 1 HDBaseT Distance 100M (Max) Ethernet Connector RJ45 x 2 (with 2 LED) Ethernet Data Rate 10 / 100Mbps Ethernet Distance...
