HDMI (HDBaseT) CAT5 Extender Series

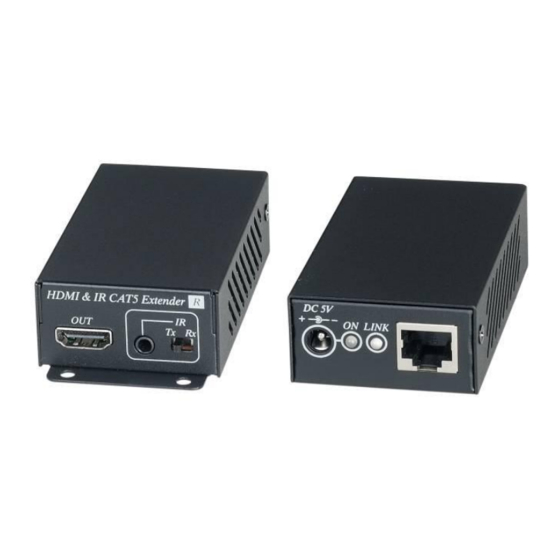

ITEM NO.: HE02EI HDMI & IR CAT5 Extender over Single CAT5 Cable
HE02EI HDMI (HDBaseT) CAT5 Extender is using only one cost effective CAT5e/6 cable to
extend your HDTV display up to 60 meters at 1080p, 70 meters by CAT6a cable. With IR
function to
delivers significant value to the entire home and commercial entertainment
system.
Features:
Extends HDMI and IR signal over one CAT5/5e/6 cable.
Uncompressed high definition video up to 1080p@60Hz@48bits and 3D and 4K*2K capable.
Built in IR control, IR signal could be selectable at either TX/RX side.
Max. Data Rate- 10.2Gbps.
HDMI 1.4 and HDCP compliance.
Transmission range up to 60M by CAT5e/6, 70M by CAT6a cable at 1080p@60Hz@24bit.
Audio support up to LPCM7.1, Dolby TrueHD, DTS-HD MA.

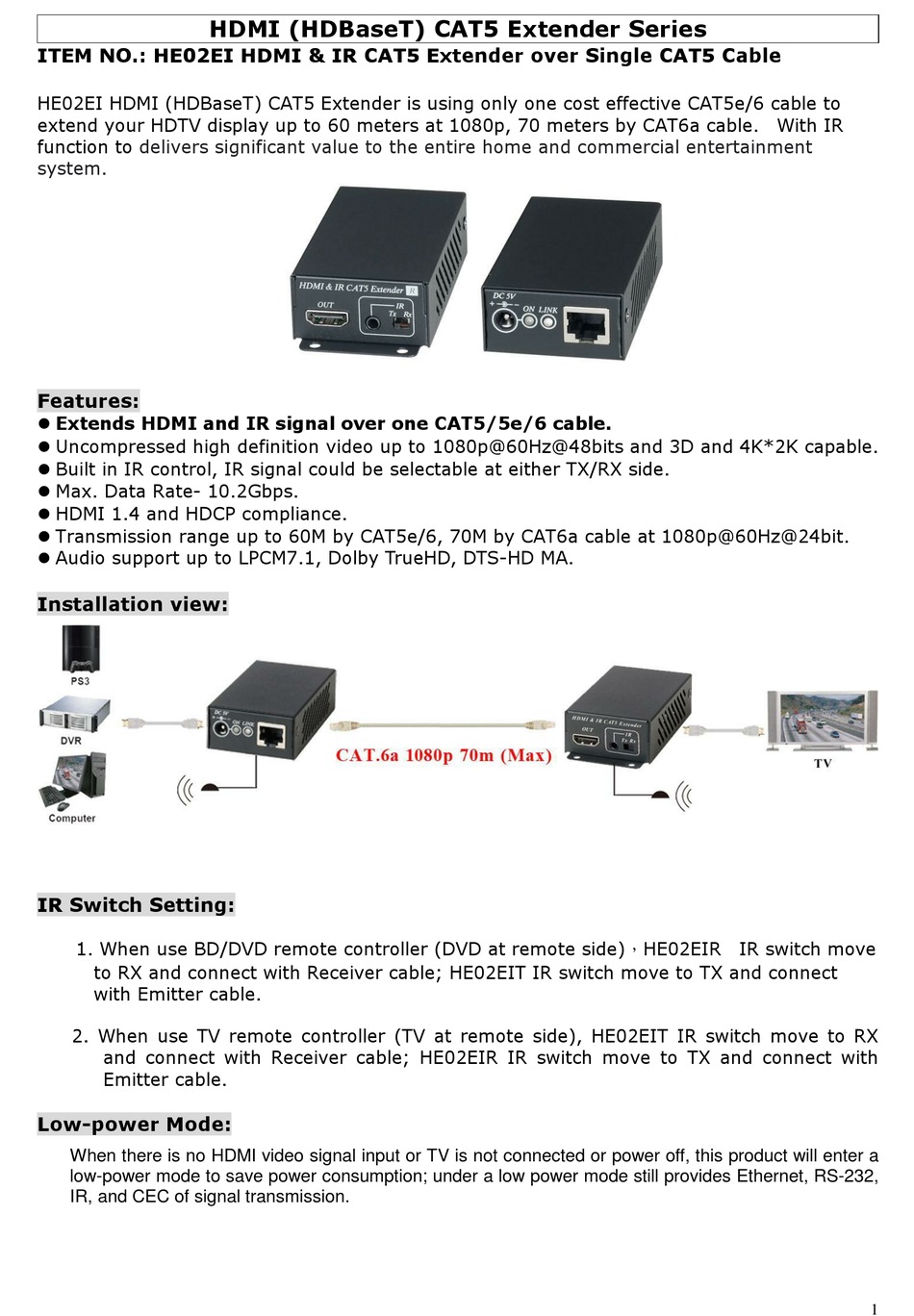

Installation view:
IR Switch Setting:
1. When use BD/DVD remote controller (DVD at remote side),HE02EIR IR switch move
to RX and connect with Receiver cable; HE02EIT IR switch move to TX and connect
with Emitter cable.
2. When use TV remote controller (TV at remote side), HE02EIT IR switch move to RX
and connect with Receiver cable; HE02EIR IR switch move to TX and connect with
Emitter cable.
Low-power Mode:
When there is no HDMI video signal input or TV is not connected or power off, this product will enter a
low-power mode to save power consumption; under a low power mode still provides Ethernet, RS-232,
IR, and CEC of signal transmission.
