- Page 1 HDMI over HDBaseT Extender User Manual Model : HE02E 4K HDMI CAT5e Extender 100M Smart Cabling & Transmission Corp. V1.0_1507301...

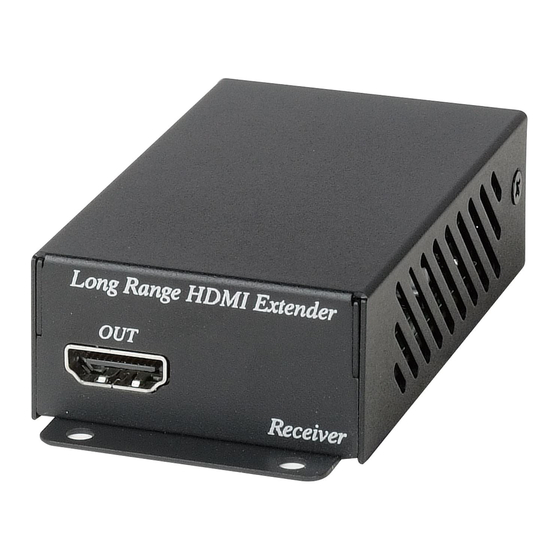

- Page 2 User Manual HE02E Introduction HE02E is a 4K HDMI over HDBaseT™ extender that can use an Ethernet cable to send uncompressed HDMI signal with resolution up to 4K@60Hz 4:2:0 and transmission distance up to 70M. Features Resolution up to 4K@60Hz 4:2:0.
- Page 3 User Manual HE02E Low-power Mode When there is no HDMI video signal input, or TV is not connected or power off, this product will enter a low-power mode to save power consumption. Video Link (TIA/EIA-568-B) 1. Orange-white DATA0 + 2. Orange DATA0 - 3.
- Page 4 User Manual HE02E Package Include HE02ET HDMI Transmitter x 1 pcs HE02ER HDMI Receiver x 1 pcs Mounting Screw pack x 2 bags Power Adapter x 2 pcs Specification ITEM NO. HE02ET HE02ER Support Compliance HDMI 1.4, HDCP, 3D Max. Video Resolution 4K@30Hz Max.
