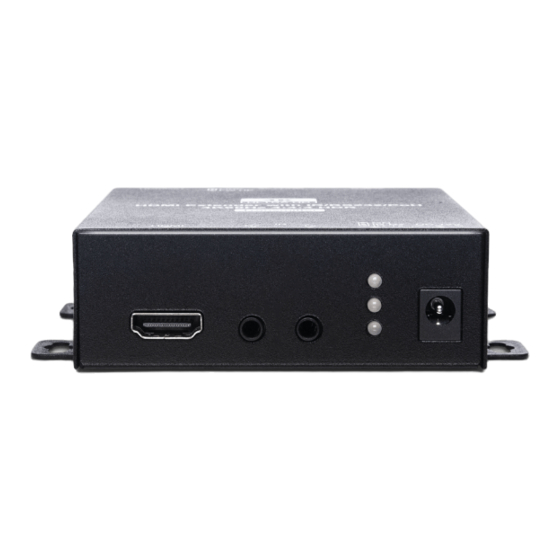

SC&T HE02EXP User Manual

Hdmi over hdbaset extender
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

HDMI over HDBaseT Extender
User Manual
Model :
HE02EXP
4K 60Hz 4:4:4 HDMI & IR/R232/POH CAT5e Extender 100M
Smart Cabling & Transmission Corp.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE02EXP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SC&T HE02EXP

Summary of Contents for SC&T HE02EXP

  • Page 1 HDMI over HDBaseT Extender User Manual Model : HE02EXP 4K 60Hz 4:4:4 HDMI & IR/R232/POH CAT5e Extender 100M Smart Cabling & Transmission Corp.

  • Page 2: Installation View

    HE02EXP Introduction HE02EXP is a 4K HDMI over HDBaseT™ extender that can use an Ethernet cable to transfer uncompressed video & audio signals with resolution up to 4K@60Hz 4:4:4 and transmission distance up to 100M. The extender also supports PoH (Power over HDBaseT™) to provide power from one side (Tx/ Rx) to another.

  • Page 3: Panel View

    User Manual HE02EXP MAX 100M Wall Jack HE02EXPR HE02EXPT Wall Jack 5M MAX 5M MAX RJ45 Define Video Link (TIA/EIA-568-B) 1. Orange-white DATA0 + 2. Orange DATA0 - 3. Green-white DATA1 + 4. Blue DATA2 + 5. Blue-white DATA2 - 6.

  • Page 4: Package Include

    User Manual HE02EXP LED Instruction Color Status HE02EXPT HE02EXPR GREEN LINK ON: HDBaseT Linking BLUE Reserved FW UP ON: Firmware Update Color Status HE02EXPT HE02EXPR GREEN ON: Power normal BLUE IR RX ON: Receiving IR signal IR TX ON: Sending IR signal Firmware updated Switch 1.

  • Page 5: Troubleshooting

    User Manual HE02EXP Trouble Shooting 1. The wiring must away from any equipment with electromagnetic wave, i.e.: mobile phone, microwave, radio equipment, fluorescent lamp, high voltage power lines. 2 Under HDMI 2.0 mode, must use Premium certified HDMI cable. 3. Under HDCP 2.2 mode: any one monitor HDCP authorization failed will cause no video status, other connecting monitors will be also failed.

  • Page 6: Specification

    User Manual HE02EXP Specification: ITEM NO. HE02EXPT HE02EXPR Support Compliance HDMI 2.0, HDCP 2.2, 1.4, DVI Max. Video Resolution 4K@60Hz 4:4:4 Max. Transmission Distance 90M over CAT6 or greater cable Video Bandwidth 18 Gbps RS232 Baud Rate 115200 bps/ Full Duplex Audio Format 7.1 LPCM 192KHz, Dolby TrueHD, DTS-HD MA...
  • Page 7 User Manual HE02EXP...
