ITEM NO.:

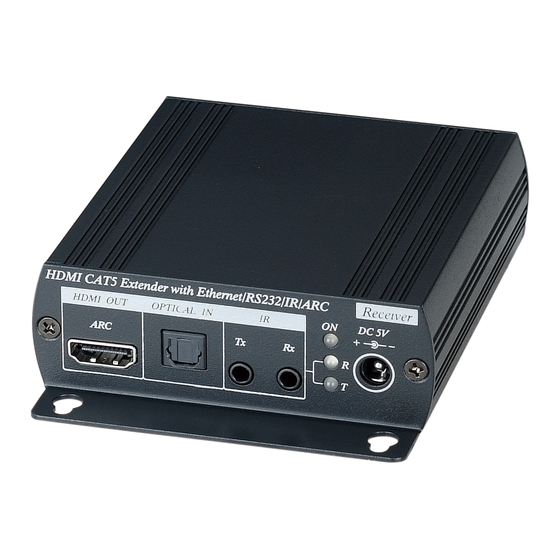

HE02N HDMI (HDBaseT) CAT5 Extender with Ethernet/ARC/IR/RS232
Extend high-resolution HDMI and IR up to 100M with this HDMI over single cat5e/cat6 extender. This
extender uses HDBaseT technology to extend uncompressed high-definition video/audio with a data
transfer rate of 10.2Gbps. This product also meets all HDMI v1.4 standards including full 3D support,
HDMI Ethernet Channel, audio return channel and 4Kx2K Resolution. Additional Ethernet ports on both
the Sender and Receiver are connected to standard network devices such as 100Base-T routers, hubs
and computers. HDMI and Ethernet signal can be transmitted simultaneously without affecting each
other. This product offers the ideal solution for extending high-definition video and audio over long
distances.
HE02N
HDMI (HDBaseT) CAT5 Extender with Ethernet/ARC/RS232/IR
Extends HDMI, Ethernet, ARC, RS232 and IR signal over one CAT5e/6 cable.
Uncompressed high definition video up to 1080p@60Hz@48bits.
HDMI 1.4 with 3D, 4k x 2k support, HDCP & DVI Compliant.
Max. Data Rate- 10.2Gbps.
Audio supports up to LPCM 7.1 @ 192KHz、Dolby TrueHD、DTS-HD MA
Transmission range up to 100 meters at 1080p resolution.
Support one port 10/100Mbps network, allow to connect the network TV or devices.
ARC or optical digital audio mode auto selection, send TV digital audio back to the amplifier.
Bi-directional IR, IR carrier support 30-60khz.
Bi-Directional RS232 interface – commands and data can flow in both directions via RS232, allowing
status requests and control of the destination unit.
Installation view:
Cable:
Link cable recommend use high quality Cat.5e 、 Cat.6 、 Cat.6a 、 Cat.7 UTP / STP or FTP cable.
Poor quality cable or network connection or improper construction will cause unstable
connection, video or sound disruptions, picture noise appears.
HDBaseT Distance chart by different cable:
Cable Type
CAT5e / CAT6
CAT6a / CAT7
HDMI (HDBaseT) CAT5 Extender Series
Transmitter
Range
Pixel Clock Rate
100m
<=225Mhz
70m
>225Mhz
100m
Receiver
Video Data Rate
<=5.3Gbps
(HD Video)
>5.3Gbps
(Ultra HD Video)
Supported Video
Up to
1080p 60Hz 36 bits
1080p 60Hz 48bits
1080p 60Hz 3D,
4K x 2K 30Hz
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SC&T HE02N
Summary of Contents for SC&T HE02N

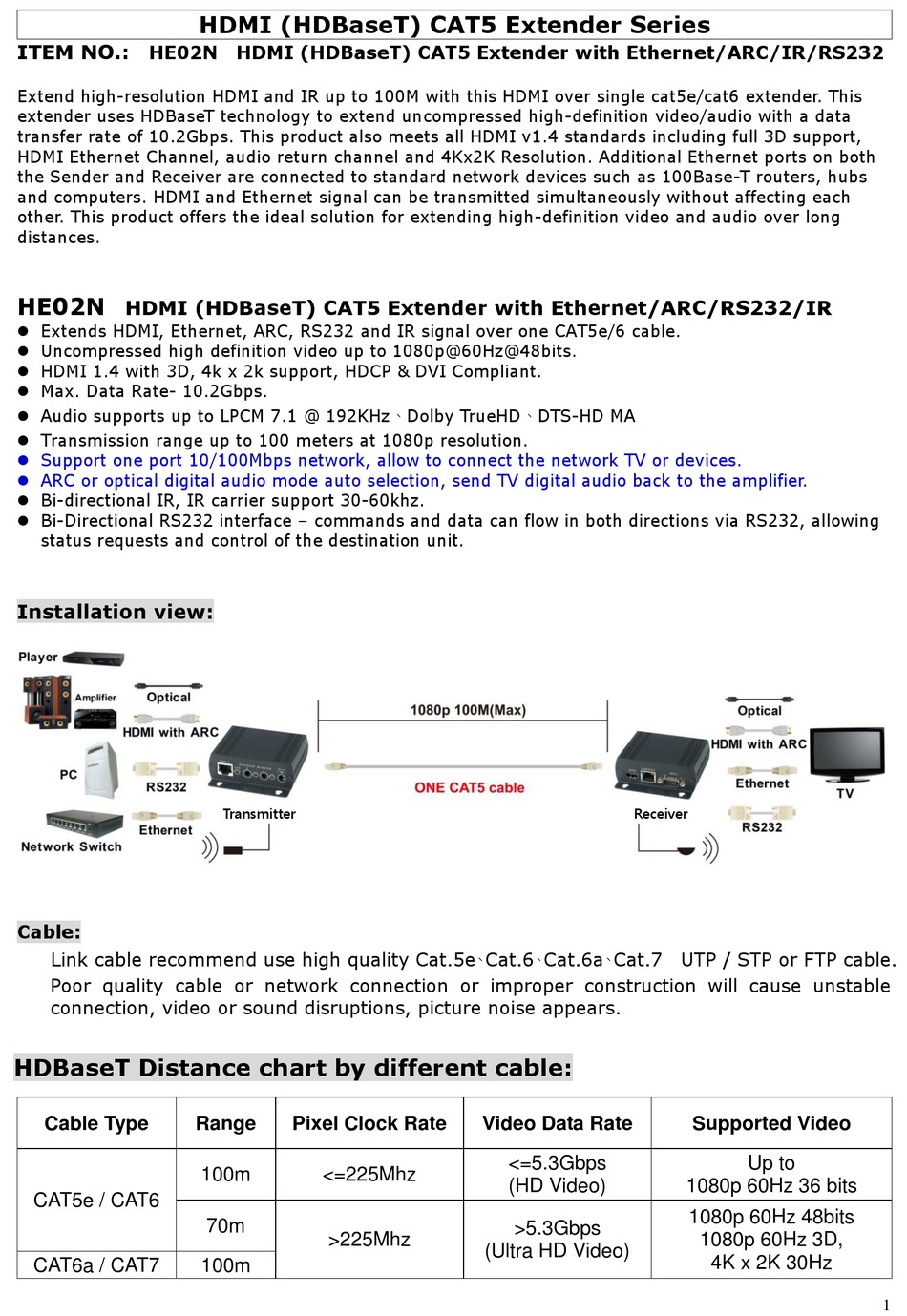

- Page 1 HDMI (HDBaseT) CAT5 Extender Series ITEM NO.: HE02N HDMI (HDBaseT) CAT5 Extender with Ethernet/ARC/IR/RS232 Extend high-resolution HDMI and IR up to 100M with this HDMI over single cat5e/cat6 extender. This extender uses HDBaseT technology to extend uncompressed high-definition video/audio with a data transfer rate of 10.2Gbps.
-
Page 2: Led Indication
If connection through the wall socket, the cable length must less 5 meters between HDMI extender and wall jack, as below drawing: MAX 100M Transmitter Wall Jack Wall Jack Receiver < 5M < 5M 10/100Mbps network connection using general CAT5e cable and working distance up to 100M. RJ45 Define: LED Indication: DC JACK Port:... -
Page 3: Panel View
Low-power Mode: If there is no any HDMI video input, the product will enter a low-power mode to save power. Under low power mode, it still provides Ethernet, RS-232 , IR, CEC, the digital optical (Max. 9600bps) audio transmission. Digital Audio Return: This product supports the TV audio sent from HDMI ARC (Audio Return Channel) or Digital optical audio mode, from the receiver back to the transmitter end. - Page 4 Specification: ITEM NO. HE02NT HE02NR HDMI Connector HDMI Type A x 1 HDMI Video Support Up to 1080p@60Hz@48bits、3D、4K x 2K HDMI Audio Support Up to LPCM 7.1 192KHz、Dolby TrueHD、DTS-HD MA HDBaseT Connector RJ45 x 1 HDBaseT Distance 100M (Max) Ethernet Connector RJ45 x 1 (with 2 LED) Ethernet Data Rate 10 / 100Mbps...
