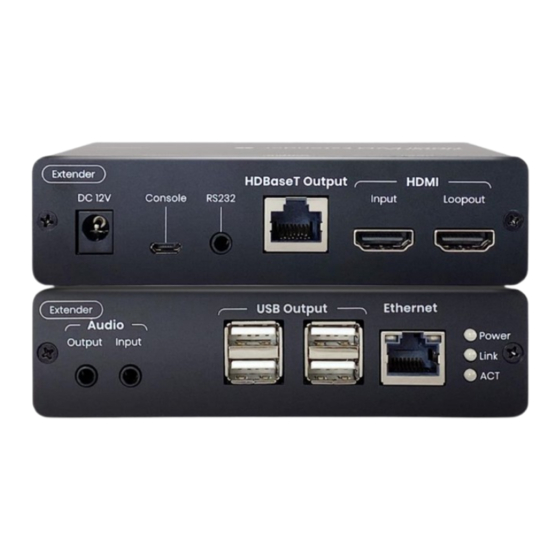

SC&T HE02U-4K6G User Manual

SC&T HE02U-4K6G User Manual

4k 60hz hdmi kvm extender with usb 2.0

Advertisement

HDMI Extender Series
User Manual
Model
:
HE02U-4K6G
4K 60Hz HDMI KVM Extender with USB 2.0
Smart Cabling & Transmission Corp.
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE02U-4K6G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SC&T HE02U-4K6G

  • Page 1 HDMI Extender Series User Manual Model HE02U-4K6G 4K 60Hz HDMI KVM Extender with USB 2.0 Smart Cabling & Transmission Corp. V1.0...
  • Page 2: Installation View

    HE02U-4K6G Overview HE02U-4K6G is an HDMI over HDBaseT Extender which is able to send uncompressed video, digital & analog audio, RS232 signals, with resolution up to 4K@60Hz 4:4:4 and transmission distance up to 100M. It uses the Valens Stello VS3000 chipset, which is the only solution for long-range distribution of uncompressed video, with zero latency.
  • Page 3 User Manual HE02U-4K6G HDMI KVM extension with Audio Input from Rx unit to Audio Output in Tx unit HDMI KVM extension with audio transmission from HDMI signal. PS: Ethernet can be connected to PC, Router, Switch Hub, etc. and can be bidirectional...
  • Page 4 User Manual HE02U-4K6G HE02UR-4K6G could also use with DP02UT-4K6G to extend DP source to HDMI display.
  • Page 5: Panel View

    User Manual HE02U-4K6G Panel View HE02UT-4K6G Interface Description Power Input To input 12V 1.5A power USB Micro-B Firmware Upgrade 3.5mm Jack RS232 RS232 for control signals extension HDBaseT Output To connect a CAT6A for transmission up to 100M HDMI Input...
  • Page 6 User Manual HE02U-4K6G HE02UR-4K6G Interface Description Power Input To input 12V 1.5A power USB Micro-B Firmware Upgrade 3.5mm Jack RS232 RS232 for control signals extension HDBaseT Input To connect a CAT6a for transmission up to 100M HDMI Output Video Output up to 4K@60Hz 3.5mm Jack Audio Output/Input...
  • Page 7: Led Indication

    Resolution and Distance Resolution HE02U-4K6G transmits HDMI and USB2.0 signals, to achieve KVM transmission, at up to 4096/ 3840 x2160@60Hz resolution and can extend the distance for a maximum of 100m at a lower resolution. For the detailed transmission distances, see the next chapter.
  • Page 8 HE02U-4K6G Setting up Wall socket If the Ethernet cable passes through the wall socket, the length of the cable between HE02U-4K6G and Wall Jack must be fewer than 3 meters as connection diagram shown below: Cable used We recommend using high-quality CAT6a, CAT7 UTP/STP, or FTP cables to connect HE02UT-4K6G and HE02UR-4K6G.
  • Page 9: Audio Transmission

    Nienyi A0120J2311 CAT 6A 90+5+5 Nienyi A0120J2311 CAT 6A 90+5+5 23AWG / Panduit Patch Structured Cable 10GBASE-T 600MHZ U/FTP Products 23AWG EN50575 Audio Transmission HDMI Audio HE02U-4K6G transmits HDMI audio. HDMI audio input can only be played from HDMI output.
  • Page 10 HE02U-4K6G Sound Channel HE02U-4K6G has an independent 3.5mm sound channel at the transmitter and receiver, which can be connected to a microphone or speaker. Tx 3.5mm audio input can only be played at Rx output. Rx 3.5mm audio input can only be played at Tx output.
  • Page 11 User Manual HE02U-4K6G RS232 Definition HE02U-4K6G has 3.5mm for RS232 transmission. See the pictures and tables below for detailed connections. RS232(DB9 Female) 3.5 mm Phone Jack Definition Definition Pin 2 Pin 1 Pin 3 Pin 2 Pin 5 Pin 3 RS232(DB9 Male) 3.5 mm Phone Jack...
  • Page 12: Package Includes

    User Manual HE02U-4K6G o The temperature is too high. o The product has been damaged by an external force. o The product does not operate normally as this manual indicates.  Please contact us for further repair if the above conditions happen.
  • Page 13: Specification

    User Manual HE02U-4K6G Specification ITEM No. HE02UT-4K6G HE02UR-4K6G HDMI 2.0 Compliance HDCP 1.4/ 2.2 USB 2.0 Video Resolution 4K@60Hz 4:4:4 Max Transmission Distance 100M (HDBaseT3 certified CAT6a U/FTP cable) RS232 Baud Rate 115200 bps/Full Duplex Ports & Interfaces Video Input...
  • Page 14 User Manual HE02U-4K6G Installation Guide Accessory Machine Screw Self-drilling Screw Screw Plug Angle Bracket Accessory set 1U Rack Installed on a Platform Step 1 Use machine screws to fix angle brackets on both sides of your product...
  • Page 15 User Manual HE02U-4K6G Step 2 Use self-drilling screws to fix the product on a platform Step 3 Move the product to get fixed and then lock the screws...
  • Page 16 User Manual HE02U-4K6G Step 4 Install the rack in the cabinet...
  • Page 17 User Manual HE02U-4K6G Installed on Wall Same way as “Installed on a Platform”, but need to put screw plugs into the pilot hole before inserting the screws (leave 2mm space from the platform)
  • Page 18 User Manual HE02U-4K6G Installed on a Rack Step 1 Lock machine screws in the rack Step 2 Put your products on the rack...
  • Page 19 User Manual HE02U-4K6G Step 3 Push the products to the other side of the rack Step 4 Install the rack in a cabinet...
  • Page 20 User Manual HE02U-4K6G...

This manual is also suitable for:

He02ut-4k6gHe02ur-4k6g
