1. Diagnostics. Run the "PER. MOD. - SYSTEM"
Diagnostic Module with LOOP! NG ENABLED for at least
five seconds for each of the eight individual tests using the
following procedure:
E3
Always be certain to turn off the mainframe
(logic analyzer) power before connecting
or disconnecting any Personality Module.
a. Turn off the mainframe power and insert the ribbon
cable connector "PERSONALITY MODULE - PM 100
SERIES" into the receptacle labeled "PERSONALITY
MODULE - PM 100 SERI ES" on the front of the Logic
Analyzer.
5-4

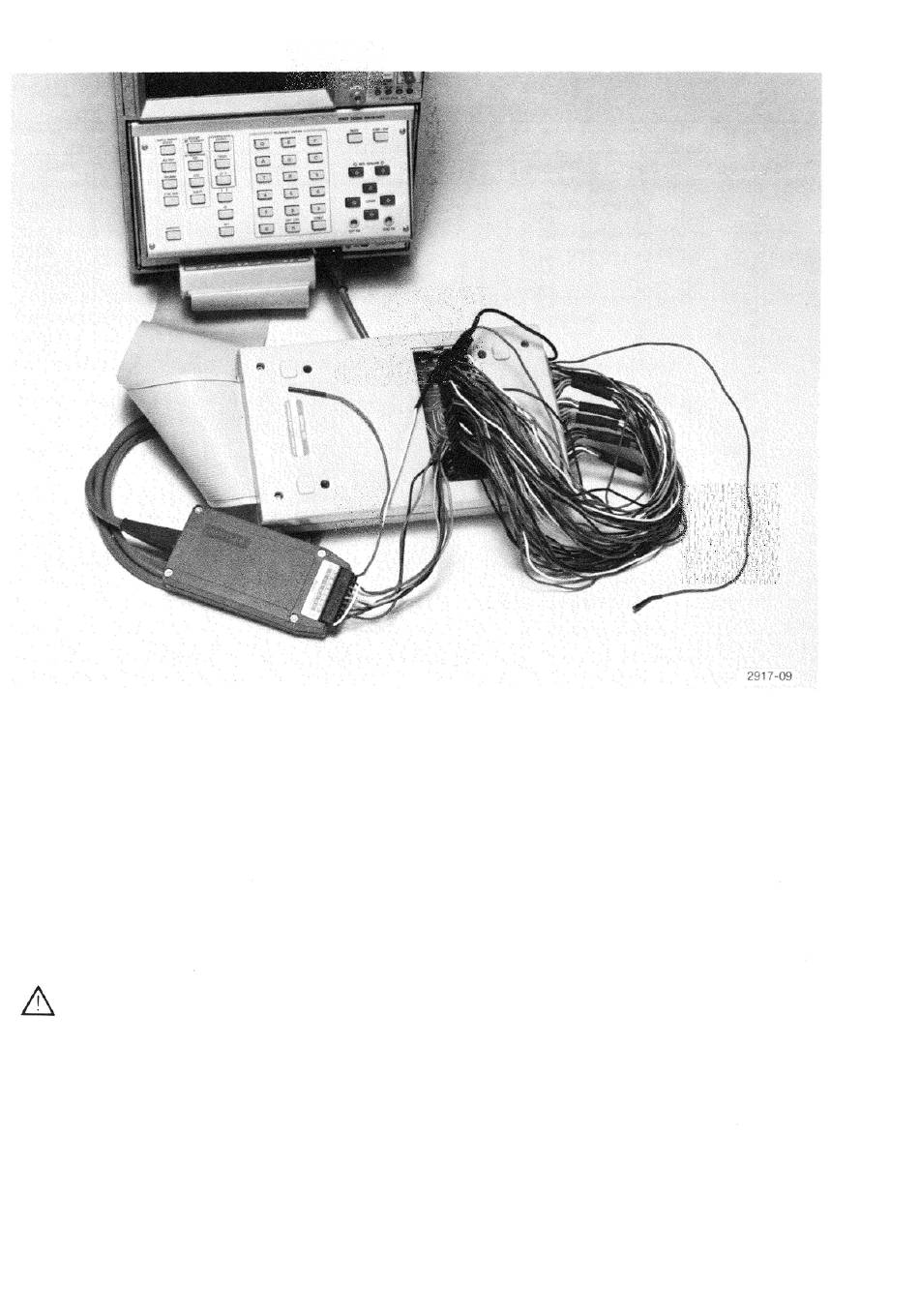

Fig. 5-3. Self Test Stimulus Connection.
b. Turn on the mainframe power and depress any front
panel key within two seconds. Keep the key depressed for
at least five seconds to simulate a keyboard failure, bring
up the POWER-UP VERIFICATION display and allow
entry into the DIAGNOSTIC MONITOR.
c. Press "X" to get a menu of the Diagnostic Monitor.
d. Press "9" to run the "PER. MOD. - SYSTEM"
Diagnostic Monitor.
e. Press "E" to ENABLE LOOPING. (The Self-Test
Stimulus was connected in an earlier procedure.)
@
