c. Connect all of the individual test leads to the Self
Test Stimulus connectors as indicated in Table 6-1 and
shown in Fig. 6-2.
d. Move the Self Test Circuitry power strap, A2J5050,
from its power-off position (2-3) to its power-on position
(1-2) as shown in Fig. 6-3.
@

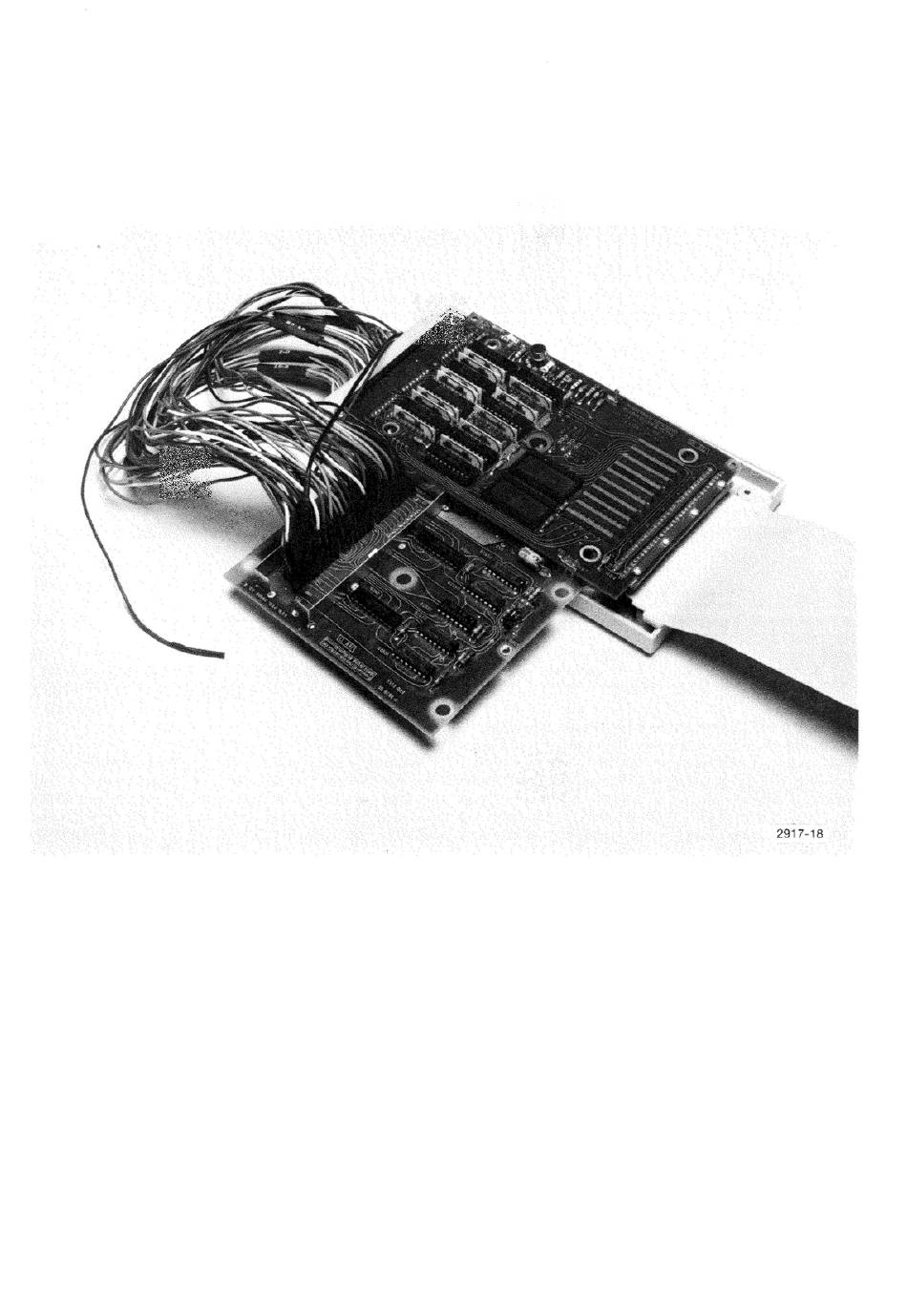

Fig. 6-2. Accessible Position-Self Test Stimulus Connected.
Maintenance and Troubleshooting-PM 101
e. Apply power to the Logic Analyzer and Personality
Module by turning on the mainframe power switch.
f. To disconnect the Self Test Stimulus, perform steps
a, c (in reverse), d (in reverse), b (in reverse), and e.
6-3
