Introduction

This section provides a procedure for verifying that the
PM 101 General Purpose Personality Module is operating
correctly. It is assumed that the Logic Analyzer has
already passed its performance check. If it has not, it
should be checked first; refer to Section 3 of the 7D02
Service manual.
A technician familiar with running this test will probably
be able to run it in about two hours. Someone using this
procedure for the first time should expect it to take
approximately twice that long. When a module passes this
check, it is meeting all of the electrical performance
specifications listed in Section 3 of this manual.

Test Equipment Required

The test equipment listed in Table 5-1 is required for a
complete performance check of the PM 101. Detailed
operating instructions for use of the test equipment are
not included in the Performance Check Procedure. Refer
to the appropriate test equipment manuals for more
information.
@
PERFORMANCE CHECK

Test Fixtures

Refer to Fig. 5-1 and assemble two test fixtures as
follows: loosen the binding post screws on a BNC to
binding post adapter, insert a separate piece of 22-gauge
wire through each post, tighten the screws, and bend the
wires in opposite directions. ( For most effective use, insert
the wires so that all of the excess length is to one side.)

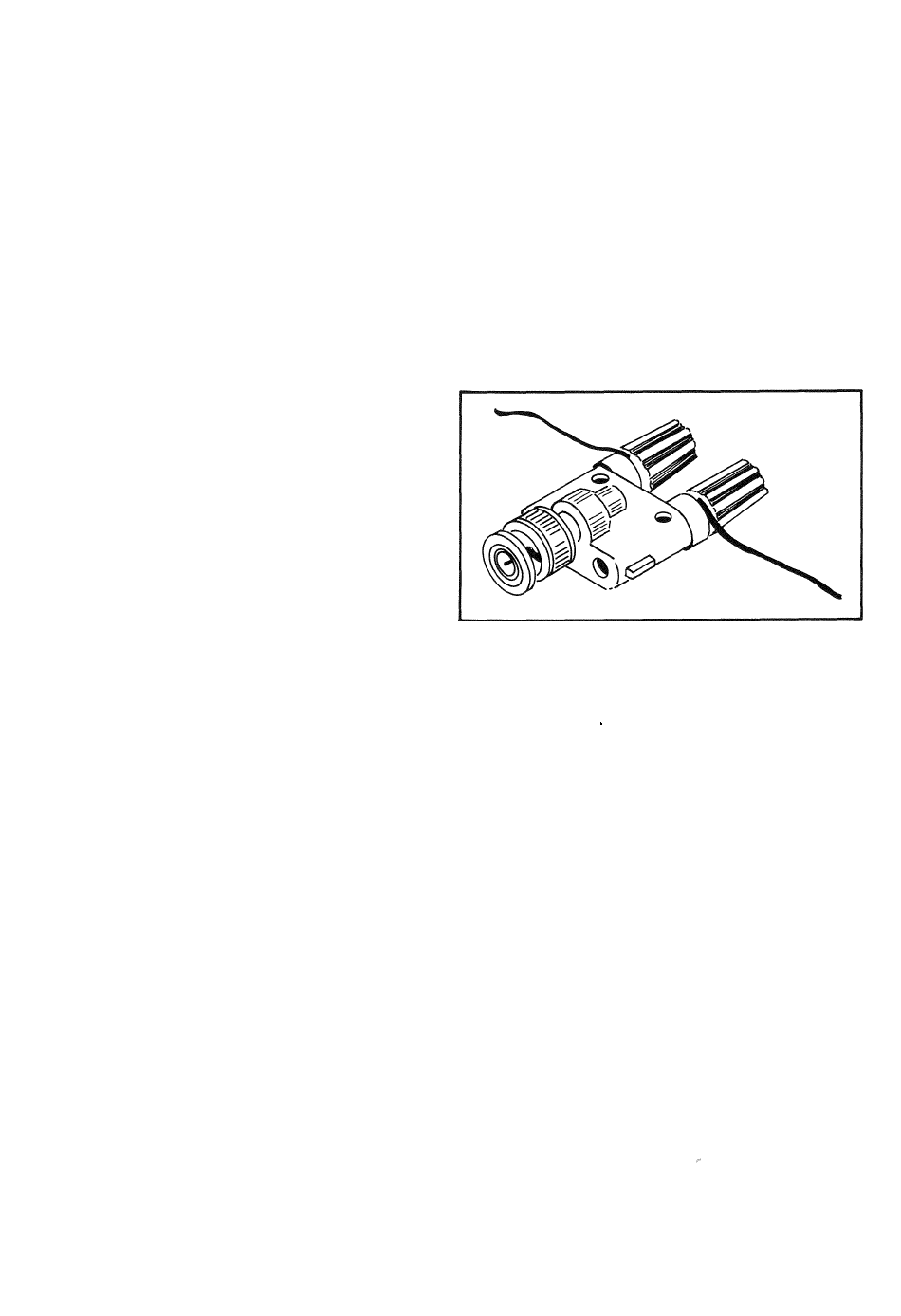

Fig. 5-1. An Assembled Test Fixture.
