Pm 101 Start-2 - Tektronix PM 101 Instruction Manual

@
"CLOCK CIRCUITS"
PERFORM PM101
TEST NOTE 1
CHECK A1U4032. A1U4036. A1U3031. A1U5031.
A1 U2033. A1 U1032. AND ASSOCIATED CIRCUITS
AND CONNECTIONS
CHECK A1U2041, A1U2043. A1U1041, A1U3034,
A1U3042, A1U3041, A1U4041, A1U3044, A1U3040
AND ASSOCIATED CIRCUITS AND CONNEC­
TIONS
CHECK A1U5045, A1U4045. A1U5041 AND
ASSOCIATED CIRCUITS AND CONNECTIONS.
PERFORM PM101
TEST NOTE 2
CHECK THE CIRCUITRY ASSOCIATED WITH
THE CHANNEL WHICH ACTED ABNORMALLY
GO TO PM101
"CLOCK CIRCUITS"
FIG. 6-7

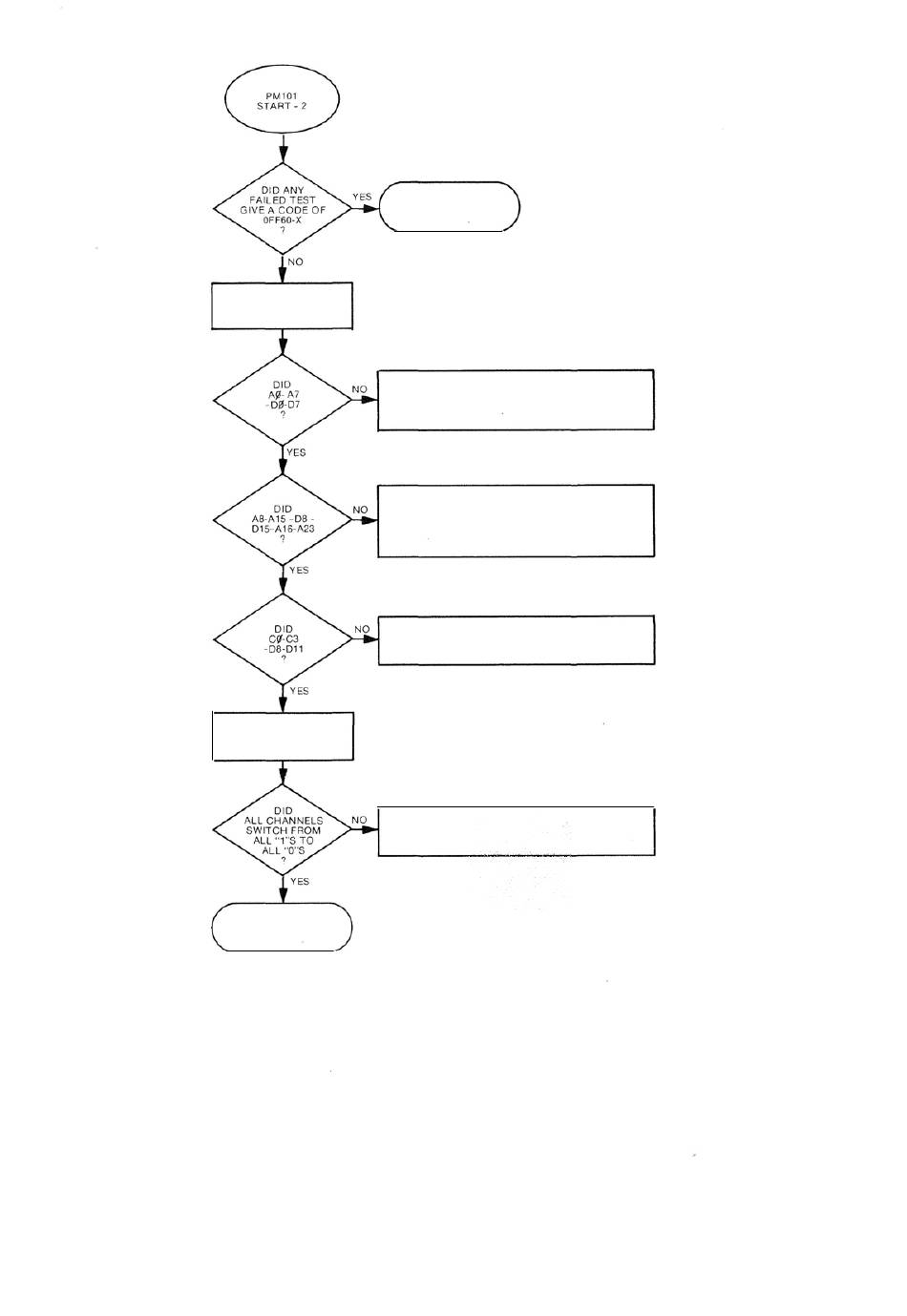

Fig. 6-5. PM 101 Start-2.
Maintenance and Troubleshooting-PM 101
GO TO PM101
FIG. 6-7
2917-20
6-7
