Maintenance and Troubleshooting-PM 101
CONNECT THE
SELF TEST STIMULUS
AND 7D02
RUN THE
7D02 DIAGNOSTIC
MONITOR-AL L
(TEST 0)
GO TO PM101
"START 2"
FIG. 6-5
6-6
GO TO 7D02
"PER.MOD.-SYS."
GO TO PM101
"C6-C9"
FIG. 6-6
C H E C K A L L S E L F T E S T S T I M U L U S
CONNECTIONS AND GROUND
GO TO 7D02
"PER.MOD.-SYS."
CHECK ALL THE TIMING OPTION SELF TEST
STIMULUS CONNECTORS
CHECK A1U1031. A1U1021. /SEL P, LOOK. AND
ASSOCIATED CIRCUITRY AND CONNECTORS

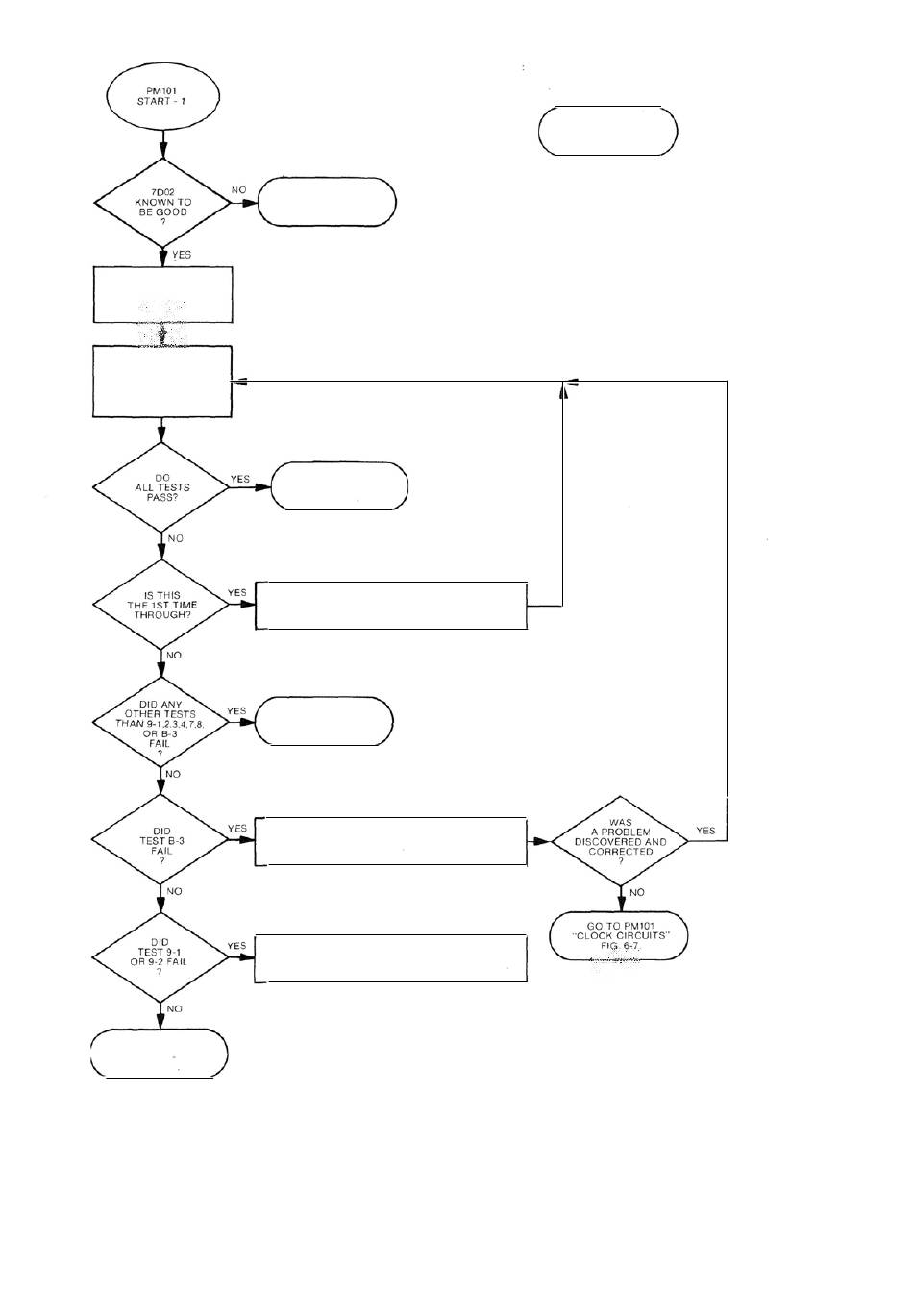

Fig. 6-4. PM 101 Start-1.
NOTE "GO TO" SYMBOLS WITH QUOTES
INSIDE REFER TO OTHER DIAGNOSTIC FLOW
CHARTS. E G ..
GO TO INSTRUMENT
"DIAG. FLOWCHART"
2917-19
@
