Control Cable Adjustment

A. See Figure 26. Check that the positions of the

FREESPOOL lever (Item 1) are the same as the position

indicators on the control housing. Loosen the U-Bolt

(Item 4) that holds the FREESPOOL control cable (Item

3) in the housing to adjust the control lever. The linkage

and cable must be adjusted so that the FREESPOOL

shifter mechanism will slide the drum pinion gear to both

positions. Both positions have a detent. Install the cover

when the adjustments are complete.

Appendix A - FREESPOOL

1. Freespool Control Lever

2. Power Control Lever

3. Freespool Control Cable

4. U-Bolt

5. Power Control Cable

6. Lock Nut

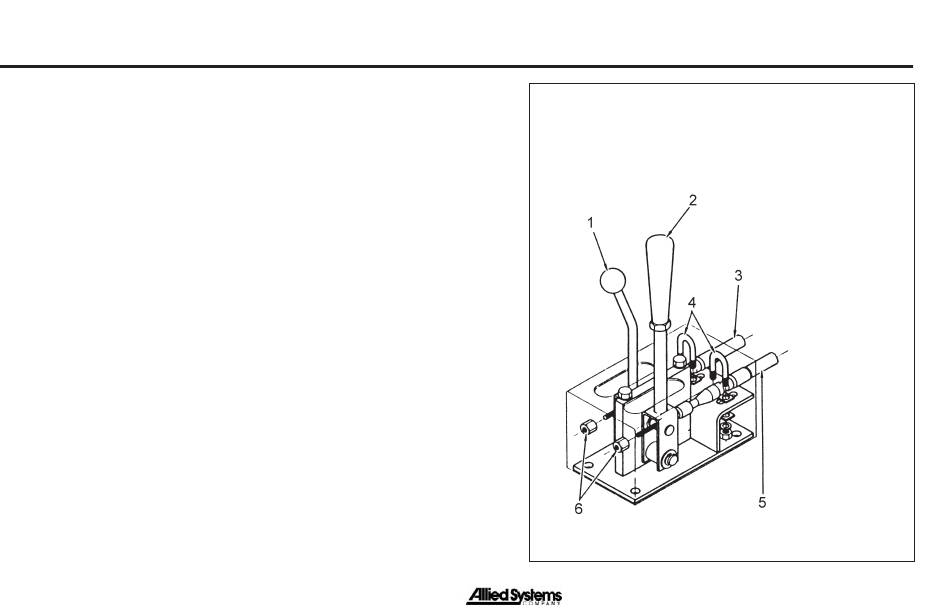

Figure 26 - Control Cable Adjustments
