Power Operation

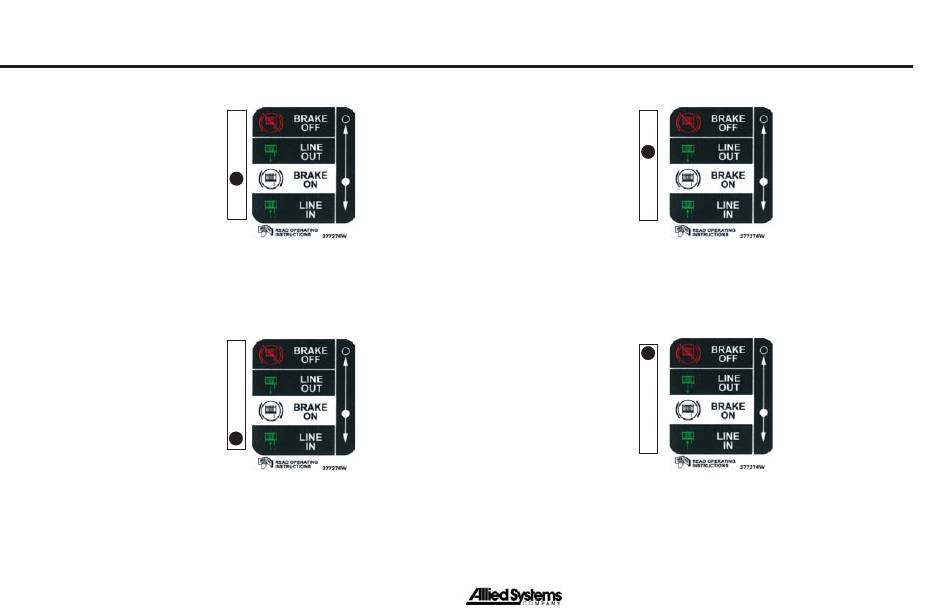

BRAKE-ON position is a neutral position. Neither clutch
is applied. The brake is fully applied.
LINE-IN position applies the LINE-IN clutch and releases
the brake. The winch will wind the wire rope at a speed
controlled by the PTO speed of the tractor.
Operation, Power Controls
C
LINE-OUT position applies the LINE-OUT clutch and
releases the brake. The winch will unwind the wire rope
at a speed controlled by the PTO speed of the tractor and
the weight of the load.
C
BRAKE-OFF position is a detented position. The clutches
are released and the oil pressure has released the brake.
This position will permit the wire rope to unwind from the
winch against the friction of the clutches, the brake, and
the gear train as the tractor moves away from the load.
C
C
