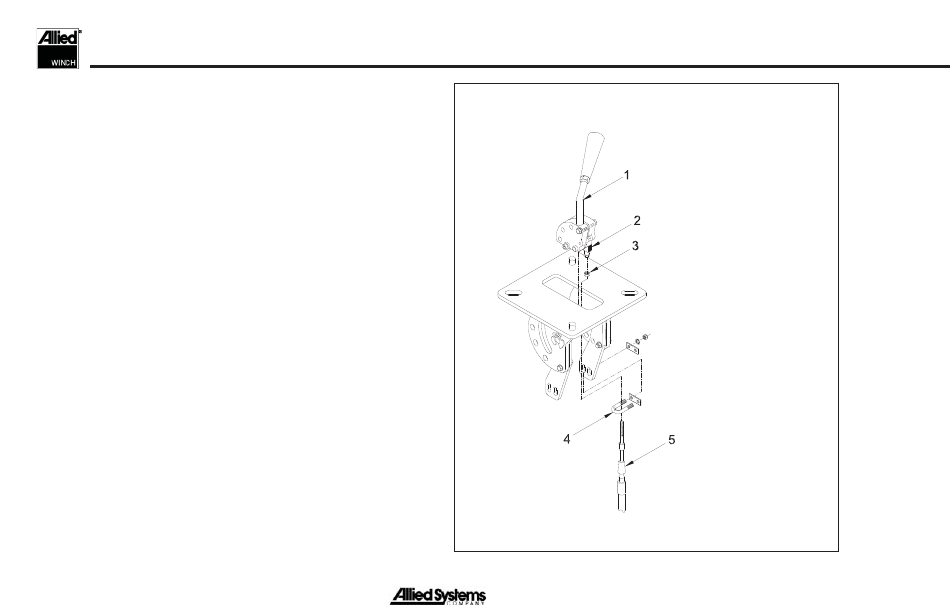

C. See Figure 18. Make sure the positions of the power

control lever (Item 1) are the same as the position

indicators on the decal. Loosen the U-bolt (Item 4) that

holds the power control cable (Item 5) in place. Turn the

jam nut (Item 3) to adjust the power control cable.

1. Power Control Lever

2. Clevis

3. Jam Nut

4. U-Bolt

5. Power Control Cable

Figure 18 - Control Cable Adjustments
