RT765E-2 OPERATOR MANUAL
SET-UP AND INSTALLATION
Upper Boom
Nose Sheaves
To Main Hoist
Bottom Boom
Nose Sheaves
Boom Nose
Dead End
Hookblock
Sheaves

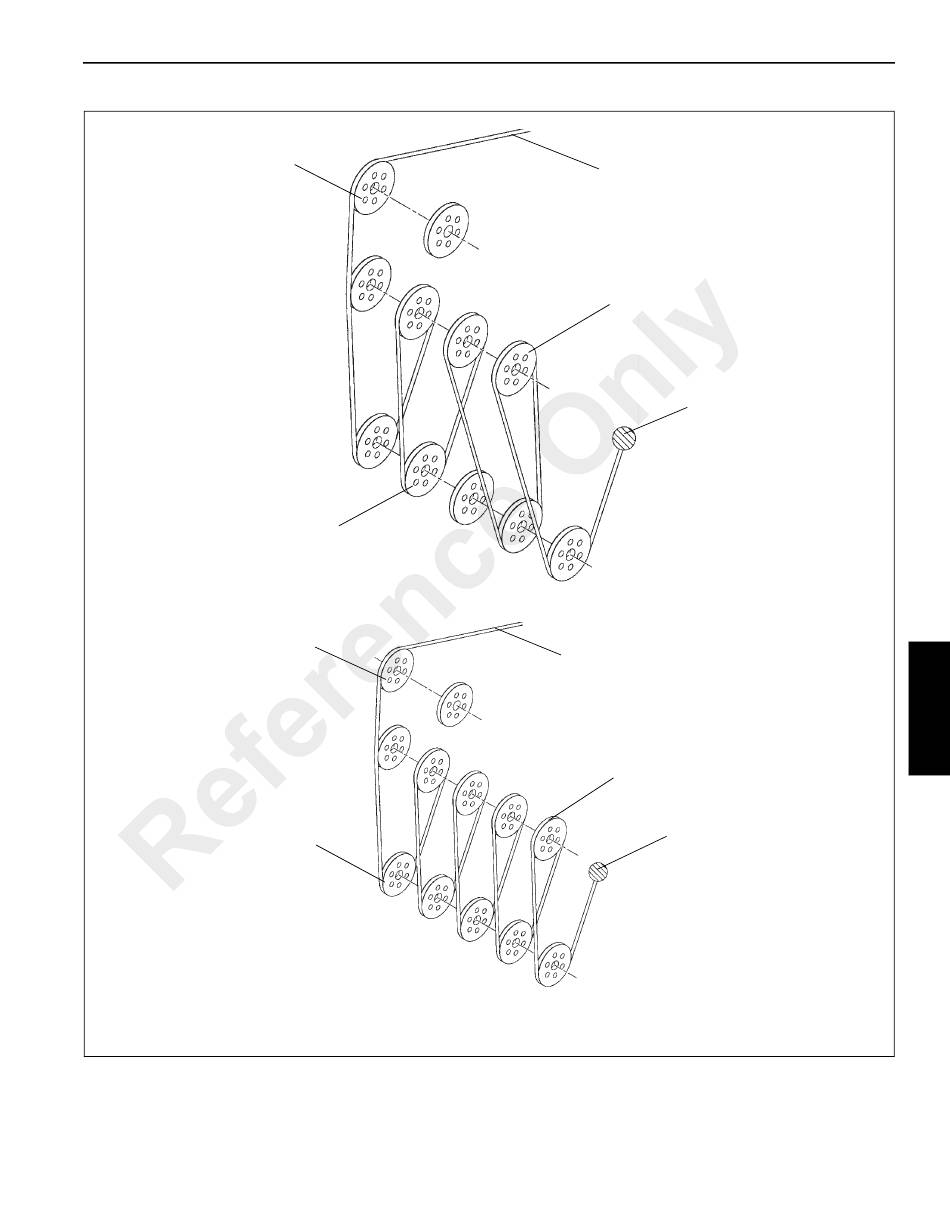

EIGHT PARTS LINE
Upper Boom
Nose Sheaves
To Main Hoist
4
Bottom Boom
Nose Sheaves
Hookblock
Hookblock
Dead End
Sheaves
TEN PARTS LINE
5 SHEAVE HOOKBLOCK
FIGURE 4-8 continued
Grove
4-9
