SET-UP AND INSTALLATION
Upper Boom
Nose Sheaves
Aux. Nose
Ball

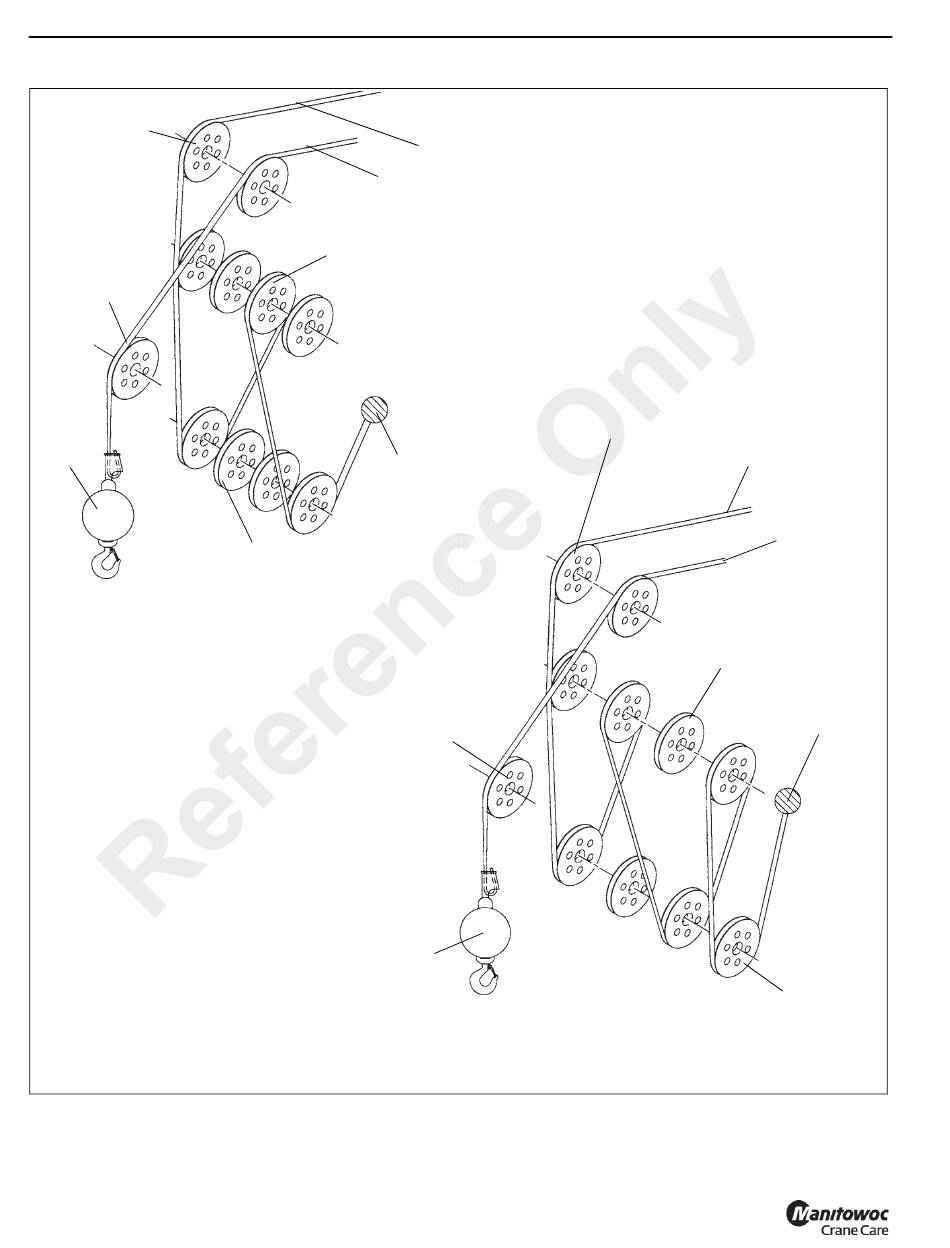

FOUR PARTS LINE
4-8
To Main Hoist
To Aux. Hoist
Bottom Boom
Nose Sheaves
Boom Nose
Dead End
Hookblock
Sheaves
Aux. Nose
Ball
4 SHEAVE HOOKBLOCK
Published 9-04-2014, Control # 364-10
RT765E-2 OPERATOR MANUAL
Upper Boom
Nose Sheaves
To Main Hoist
Bottom Boom
Nose Sheaves
SIX PARTS LINE
FIGURE 4-8 continued
To Aux. Hoist
Boom Nose
Dead End
Hookblock
Sheaves
