Figure 33
Changing Your Workstation's Hardware Configuration
Installing Storage Devices

Installing a Hard Disk Drive in Position 2 (Front Position)

Perform the following procedure to install a hard disk drive:
1 Disconnect the cable from the floppy disk drive, as shown in
Figure 33.
a Lift the locking ring on the connector to the up, or unlocked position.
b While holding the locking ring in the unlocked position, pull the cable out of
the connector.

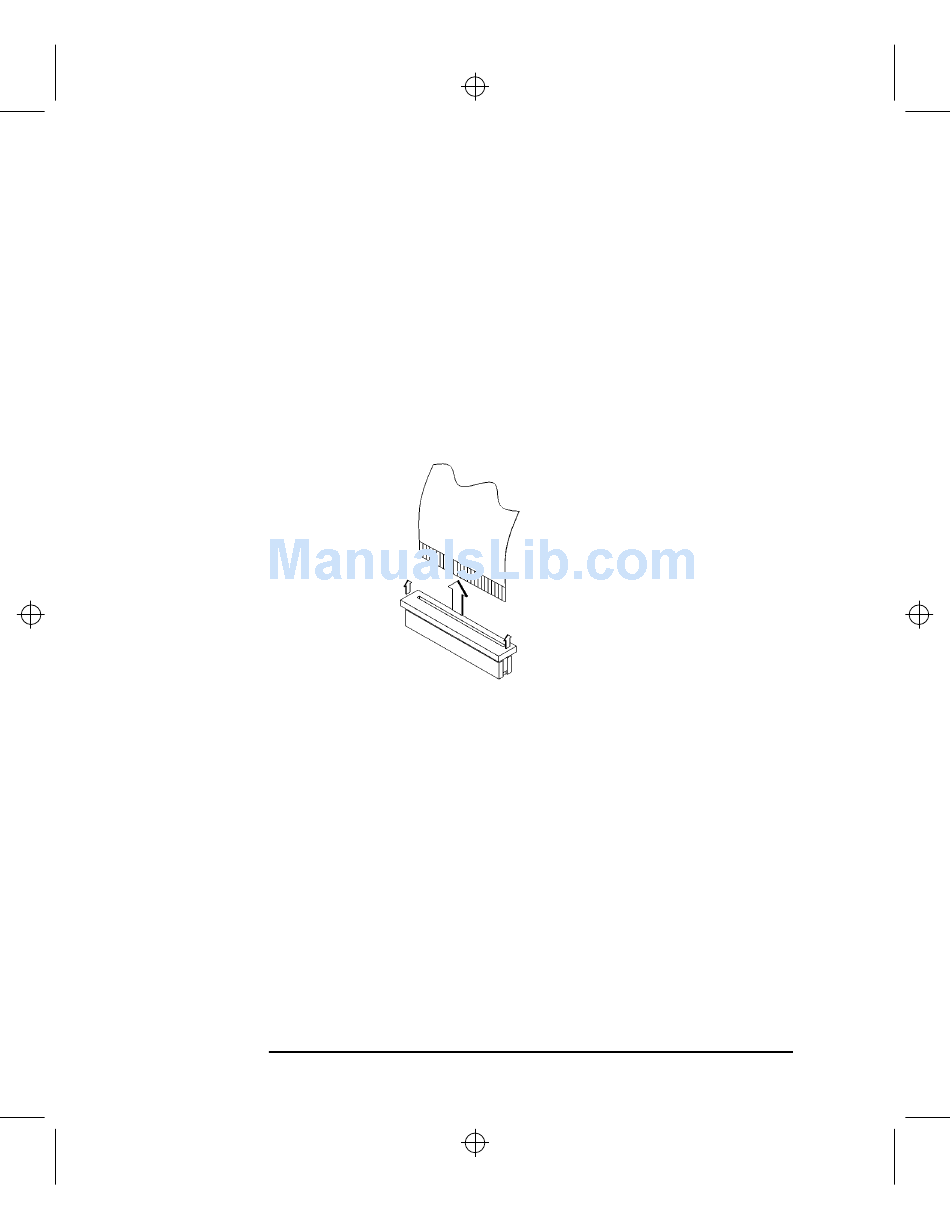

Disconnecting the Floppy Drive Cable
