Goodrive30 Series VFD
Function
Name
code
Overvoltage
stall
P11.04
protection
voltage
Current limit
P11.05
action
Automatic
P11.06 current limit
level
Frequency
drop rate
P11.07
during
current limit

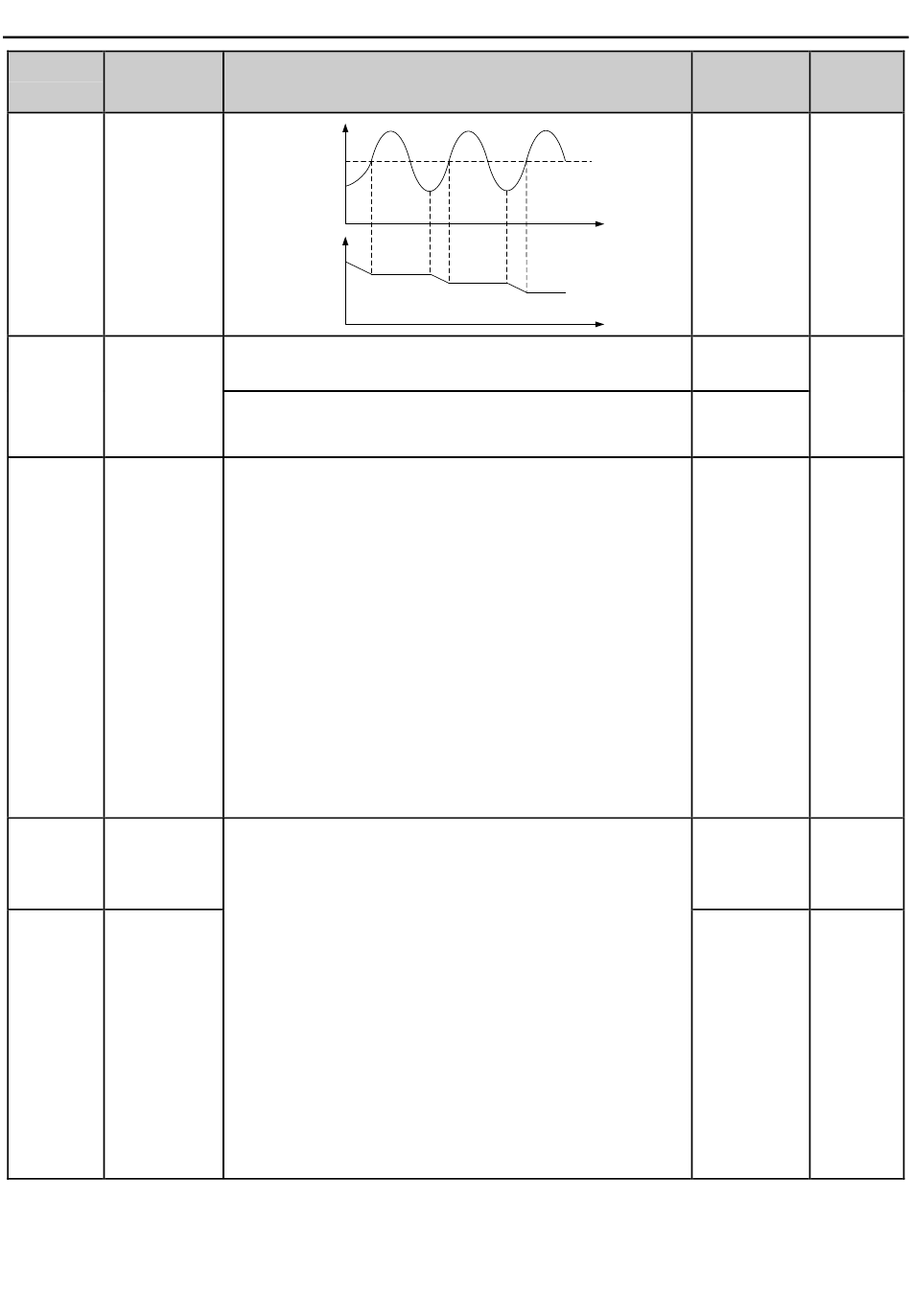

DC bus voltage V
Overvoltage
stall threshold
Output
frequency
110–150% (standard bus voltage) (380V)
110–150% (standard bus voltage) (220V)
During accelerated running, as the load is too
large, the actual acceleration rate of motor is
lower than that of output frequency, if no
measures are taken, the VFD may trip due to
overcurrent during acceleration.
Ones place: Current limit action selection
0: Invalid
1: Always valid
Tens place: Hardware current limit overload
alarm selection
0: Valid
1: Invalid
Current limit protection function detects output
current during running, and compares it with the
current-limit level defined by P11.06, if it exceeds
the current-limit level, the VFD will run at stable
frequency during accelerated running, or run in
decreased frequency during constant-speed
running; if it exceeds the current-limit level
continuously, the VFD output frequency will drop
continuously until reaching lower limit frequency.
When the output current is detected to be lower
than the current-limit level again, it will continue
accelerated running.
Description
Time t
Time t
-100-
Function parameter list
Default Modify
130%
○
120%
◎
01
◎
160.0%
◎
10.00Hz/s
