Disabling Onboard Power
Voltage regulators U10, U12, U13, U22, U23, and U41 are disabled by installing a jumper at
J289 (TI PWR INHIBIT). Voltage regulator U31 is disabled by installing a jumper across
pins 2 – 3 of header J24 (AUX POR - RESET).
Default Jumper Positions
A list of shunts and shorting plugs and their required positions for normal board operation
is provided in
Monitoring Voltage and Current
Voltage and current monitoring and control are available for selected power rails through
Texas Instruments' Fusion Digital Power graphical user interface (GUI). The three onboard
TI power controllers (U8 at PMBUS address 52, U19 at PMBUS address 53, and U32 at
PMBUS address 54) are wired to the same PMBus. The PMBus connector, J14, is provided
for use with the TI USB Interface Adapter PMBus pod and associated TI GUI.
References
More information about the power system components used by the ML628 board are
available from the Texas Instruments digital power website at:
http://www.ti.com/ww/en/analog/digital-power/index.html

GTH Transceiver Power Module

The GTH transceiver power module supplies MGTHAVCC, MGTHAVCCRX,
MGTHAVTT and MGTHAVCCPLL voltages to the FPGA GTH transceivers. Two GTH
power modules are provided with the ML628 board for evaluation. Either of the modules
can be plugged into the connectors J6 and J197 in the outlined and labeled power module
location shown in
Note:
modules from being connected to the GTX headers and vice versa.
X-Ref Target - Figure 1-4
ML628 Board User Guide
UG771 (v1.0.1) June 28, 2011
Appendix A, Default Jumper
Figure 1-4.
The GTH and GTX power modules have different connectors and form factors to prevent GTH
J6
GTH POWER MODULE

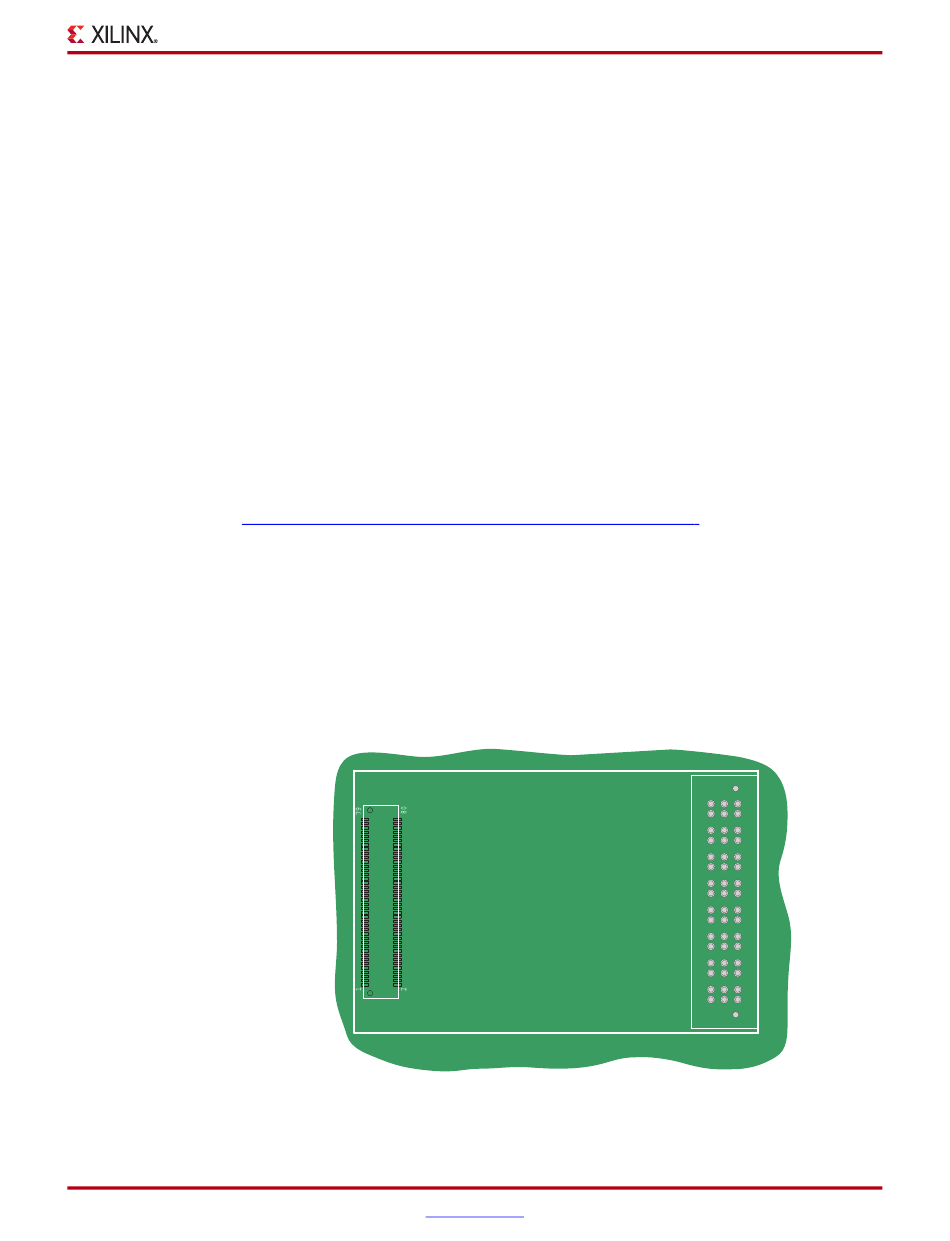

Figure 1-4: Mounting Location, GTH Transceiver Power Module
