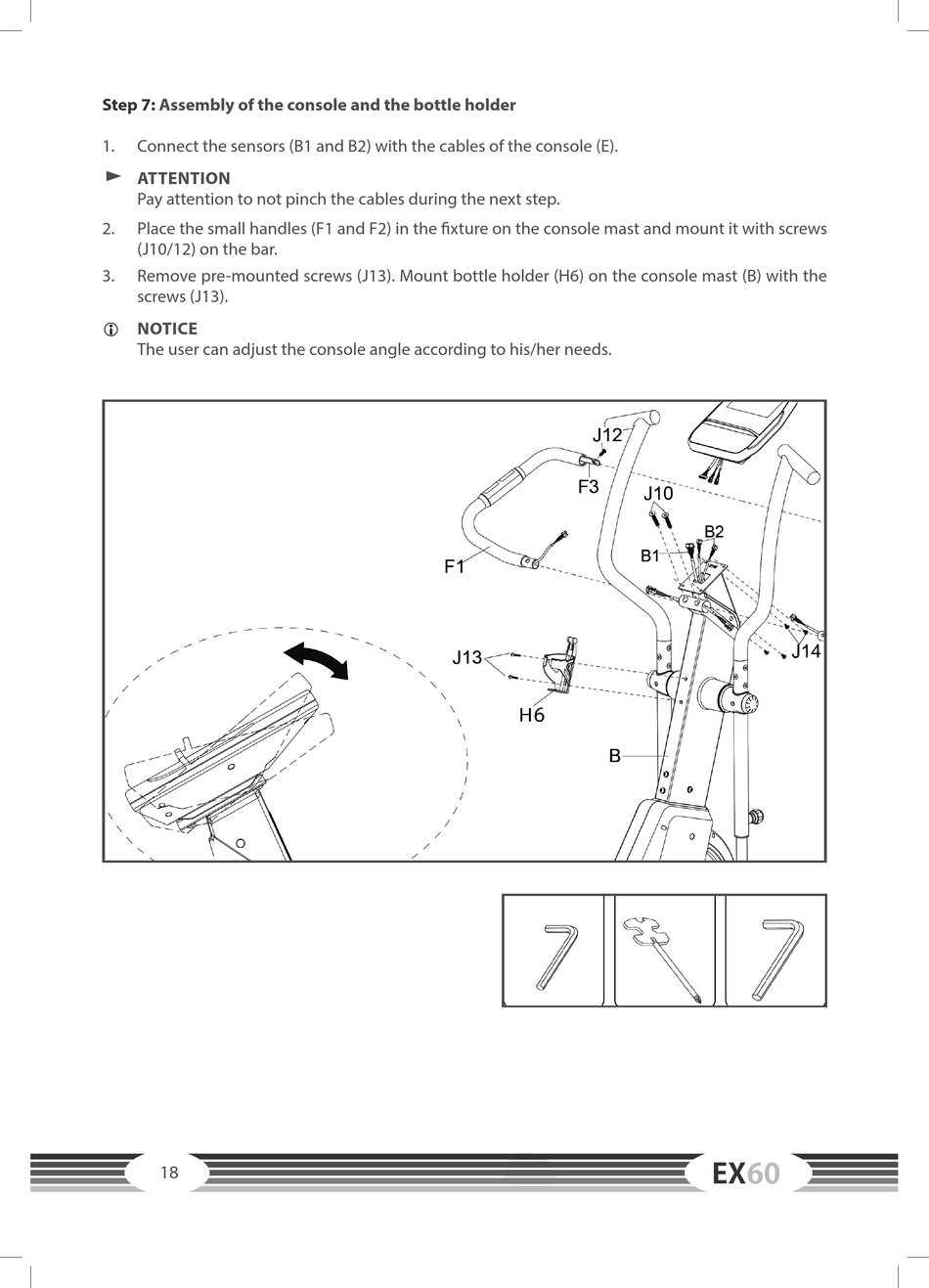

Step 7: Assembly of the console and the bottle holder
1. Connect the sensors (B1 and B2) with the cables of the console (E).
࣑ ATTENTION
Pay attention to not pinch the cables during the next step.
2. Place the small handles (F1 and F2) in the fixture on the console mast and mount it with screws
(J10/12) on the bar.
3. Remove pre-mounted screws (J13). Mount bottle holder (H6) on the console mast (B) with the
screws (J13).
NOTICE
L
The user can adjust the console angle according to his/her needs.
