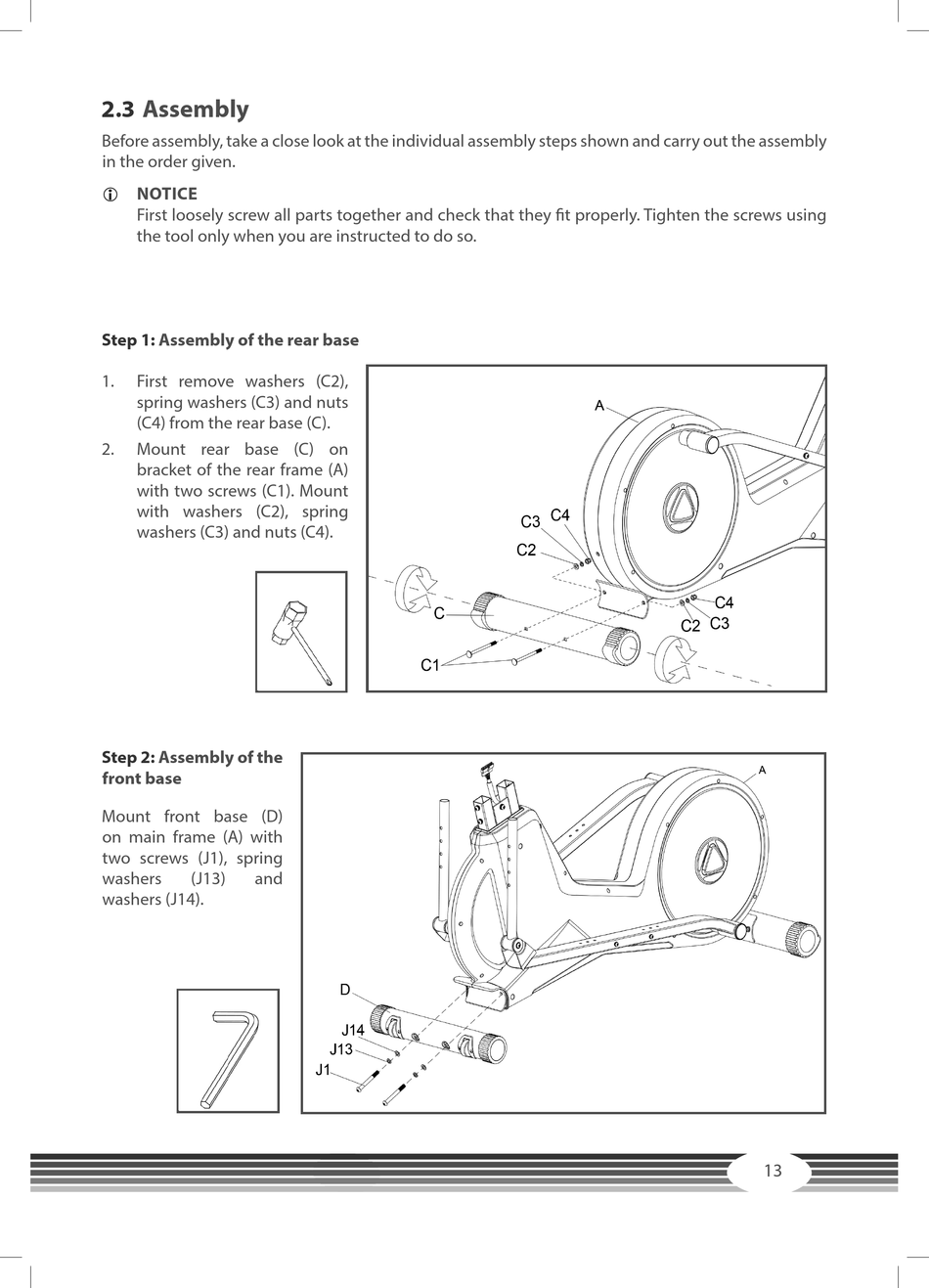

Assembly

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
NOTICE
L
First loosely screw all parts together and check that they fit properly. Tighten the screws using
the tool only when you are instructed to do so.
Step 1:
Assembly of the rear base
1.
First remove washers (C2),
spring washers (C3) and nuts
(C4) from the rear base (C).
2.
Mount rear base (C) on
bracket of the rear frame (A)
with two screws (C1). Mount
with washers (C2), spring
washers (C3) and nuts (C4).
Step 2:
Assembly of the
front base
Mount front base (D)
on main frame (A) with
two screws (J1), spring
washers
(J13)
and
washers (J14).
