Digital Input:

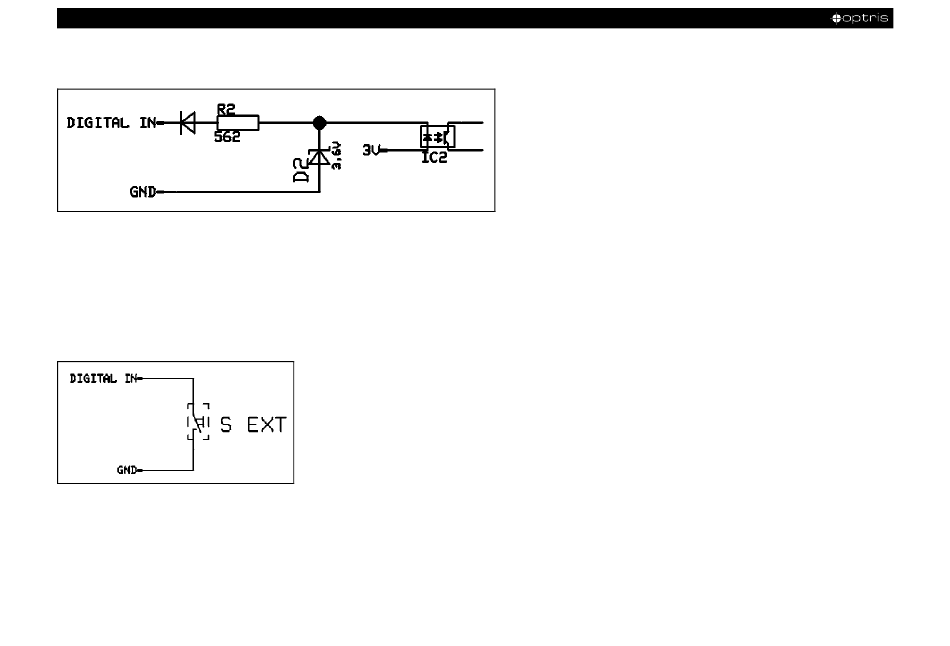

Figure 52: Digital input
The digital input can be activated with a button to the PI GND-Pin or with a low level CMOS/TTL signal: Low
level 0...0.6 V; High level 2...24 V
Example Button:
Figure 53: Button
