Industrial Process Interface (Optional) - optris PI 200 Operator's Manual

-
56
4.1.2

Industrial Process Interface (optional)

For use in industrial environment the industrial process interface with 500 V AC
PI and process is available (connection box with IP65, 5 m, 10 m or 20 m standard or high temperature cable
for camera connection, terminal for process integration).
Pin assignment PIF cable (industrial process interface)

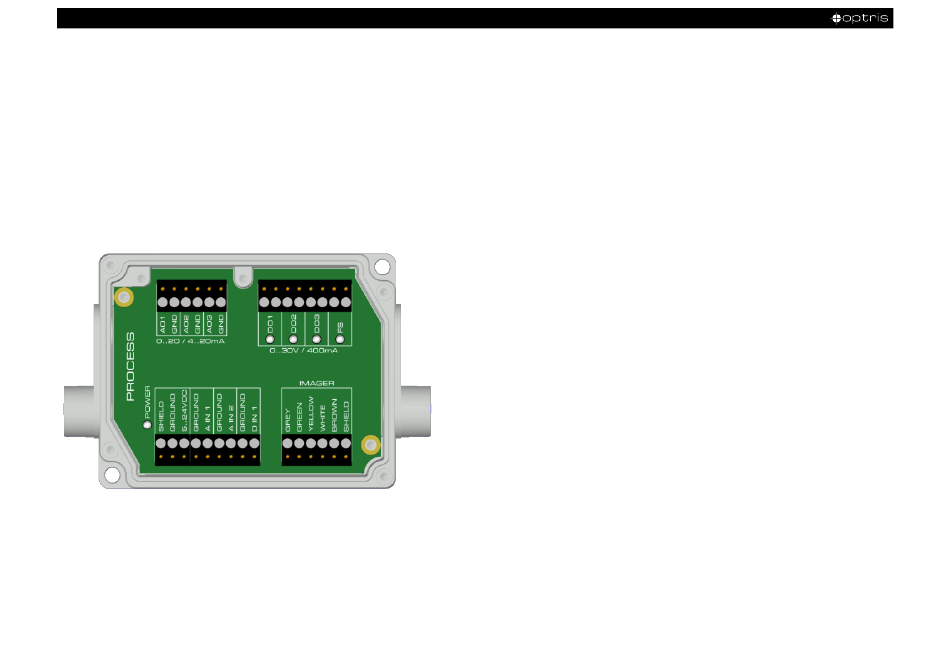

Figure 34: Connections of the industrial Process Interface
Appendix F – Wiring diagrams PIF]
[►
GREY Interrupt
GREEN SCL (I²C)
YELLOW SDA (I²C)
WHITE 3.3 V
BROWN GND
SHIELD GND
isolation voltage between
RMS
-
