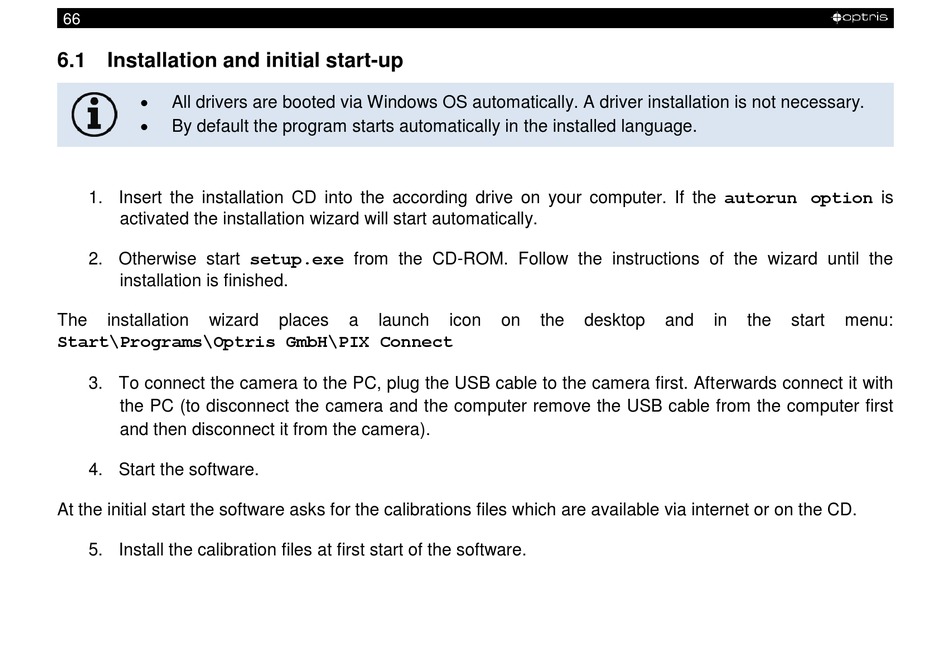

6.1 Installation and initial start-up


All drivers are booted via Windows OS automatically. A driver installation is not necessary.

By default the program starts automatically in the installed language.
1. Insert the installation CD into the according drive on your computer. If the autorun option is
activated the installation wizard will start automatically.
2. Otherwise start setup.exe from the CD-ROM. Follow the instructions of the wizard until the
installation is finished.
The installation wizard
Start\Programs\Optris GmbH\PIX Connect
3. To connect the camera to the PC, plug the USB cable to the camera first. Afterwards connect it with
the PC (to disconnect the camera and the computer remove the USB cable from the computer first
and then disconnect it from the camera).
4. Start the software.
At the initial start the software asks for the calibrations files which are available via internet or on the CD.
5. Install the calibration files at first start of the software.
places a launch icon on the desktop and
-
in the start menu:
