Electrical Installation
4 Electrical Installation
At the back side of the PI there are the two connector plugs. The left plug is for the USB cable. The right
connector plug is only used for the process interface.

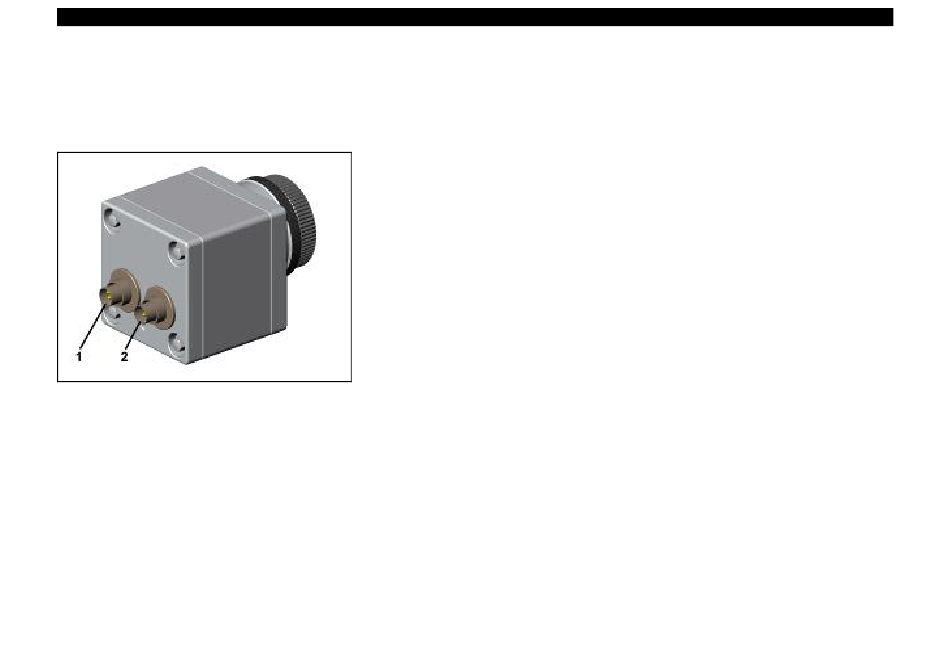

Figure 30: Backside of the camera with connectors
1
Plug for USB cable
2
Plug for PIF cable
