Electrical Installation
If the process interface of the camera is directly connected to external hardware
PIF cable) an activation of the field „Support proprietary PIF cable" in the menu Tools/
Configuration/ Device (PIF) in the PIX Connect software is necessary.

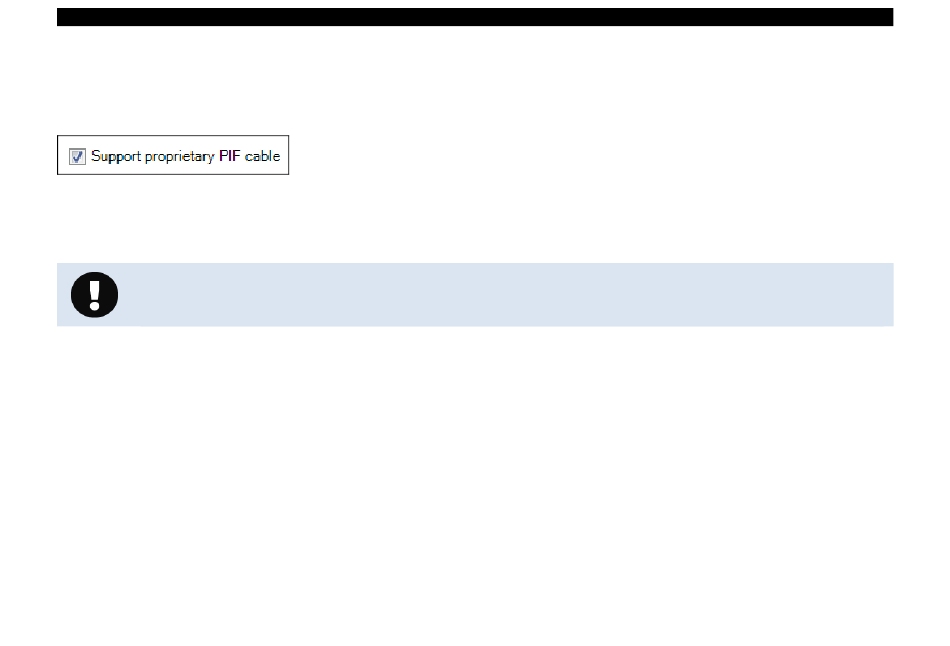

Figure 33: Support proprietary PIF cable
Consider that the input of the PIF is not protected if there is a direct PIF connection!
A voltage > 3 V on the INT pin will destroy the device!
1)
We recommend using only a switching contact between INT and DGND as external hardware (button, relay).
1)
(without using the supplied
55-
