4.1.1

PIN allocation

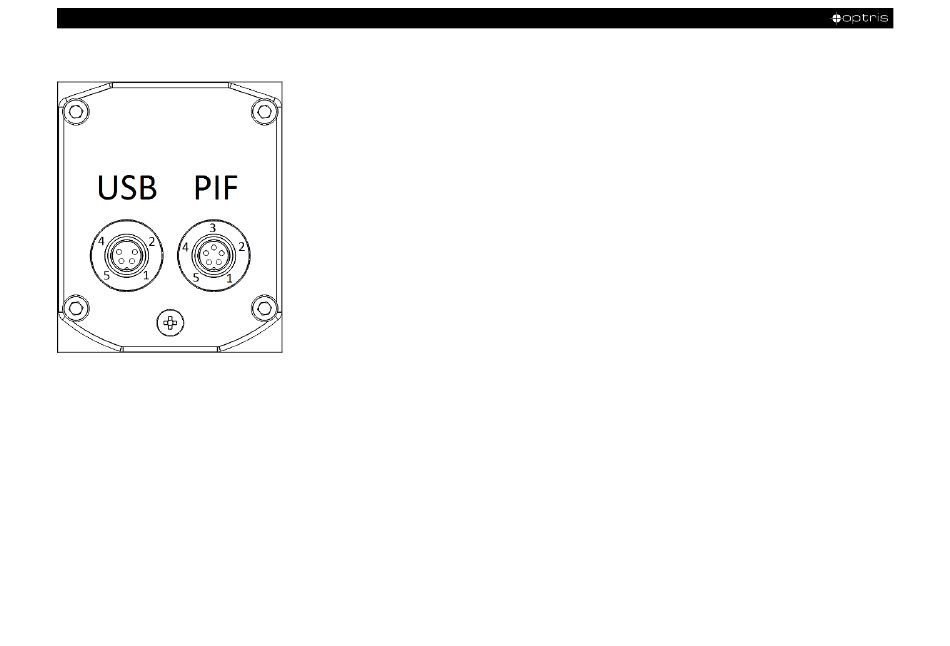

Figure 32: Rear side of the camera

USB

PIF

1 VCC

1 INT

2 GND

2 SDA (I²C)

3 SCL (I²C)

4 D -

4 DGND

5 D +

5 3.3 V (Out)

-
