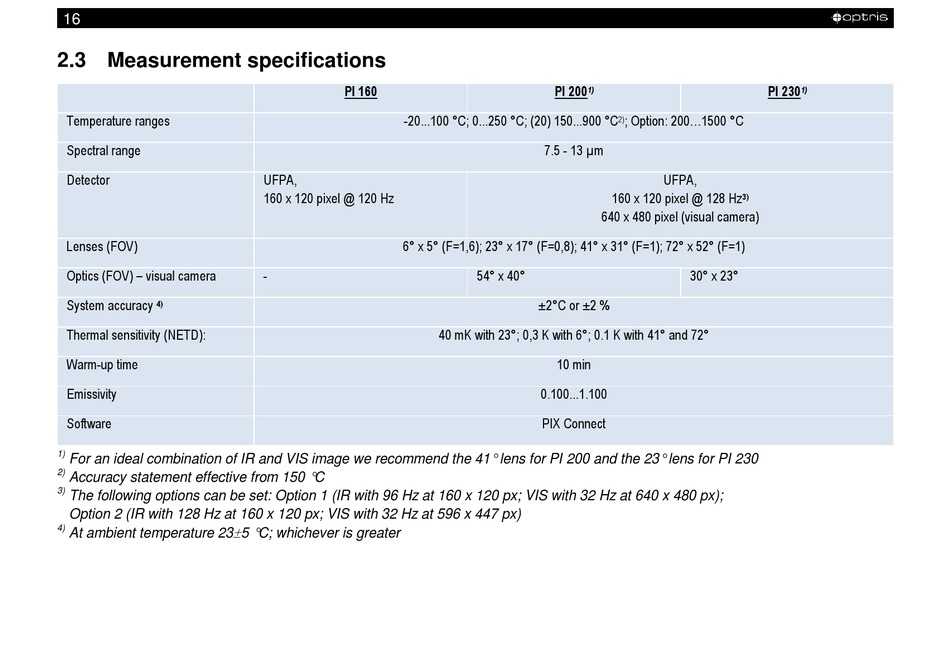

2.3 Measurement specifications

Temperature ranges
Spectral range
Detector
Lenses (FOV)
Optics (FOV) – visual camera
System accuracy
4)
Thermal sensitivity (NETD):
Warm-up time
Emissivity
Software
1)
For an ideal combination of IR and VIS image we recommend the 41° lens for PI 200 and the 23° lens for PI 230
2)
Accuracy statement effective from 150 °C
3)
The following options can be set: Option 1 (IR with 96 Hz at 160 x 120 px; VIS with 32 Hz at 640 x 480 px);
Option 2 (IR with 128 Hz at 160 x 120 px; VIS with 32 Hz at 596 x 447 px)

4)
At ambient temperature 23
PI 160
-20...100 °C; 0...250 °C; (20) 150...900 °C
UFPA,
160 x 120 pixel @ 120 Hz
6° x 5° (F=1,6); 23° x 17° (F=0,8); 41° x 31° (F=1); 72° x 52° (F=1)
-
5 °C; whichever is greater
PI 200
1)
7.5 - 13 µm
160 x 120 pixel @ 128 Hz
640 x 480 pixel (visual camera)
54° x 40°
±2°C or ±2 %
40 mK with 23°; 0,3 K with 6°; 0.1 K with 41° and 72°
10 min
0.100...1.100
PIX Connect
PI 230
; Option: 200...1500 °C
2)
UFPA,
3)
30° x 23°
-
1)
