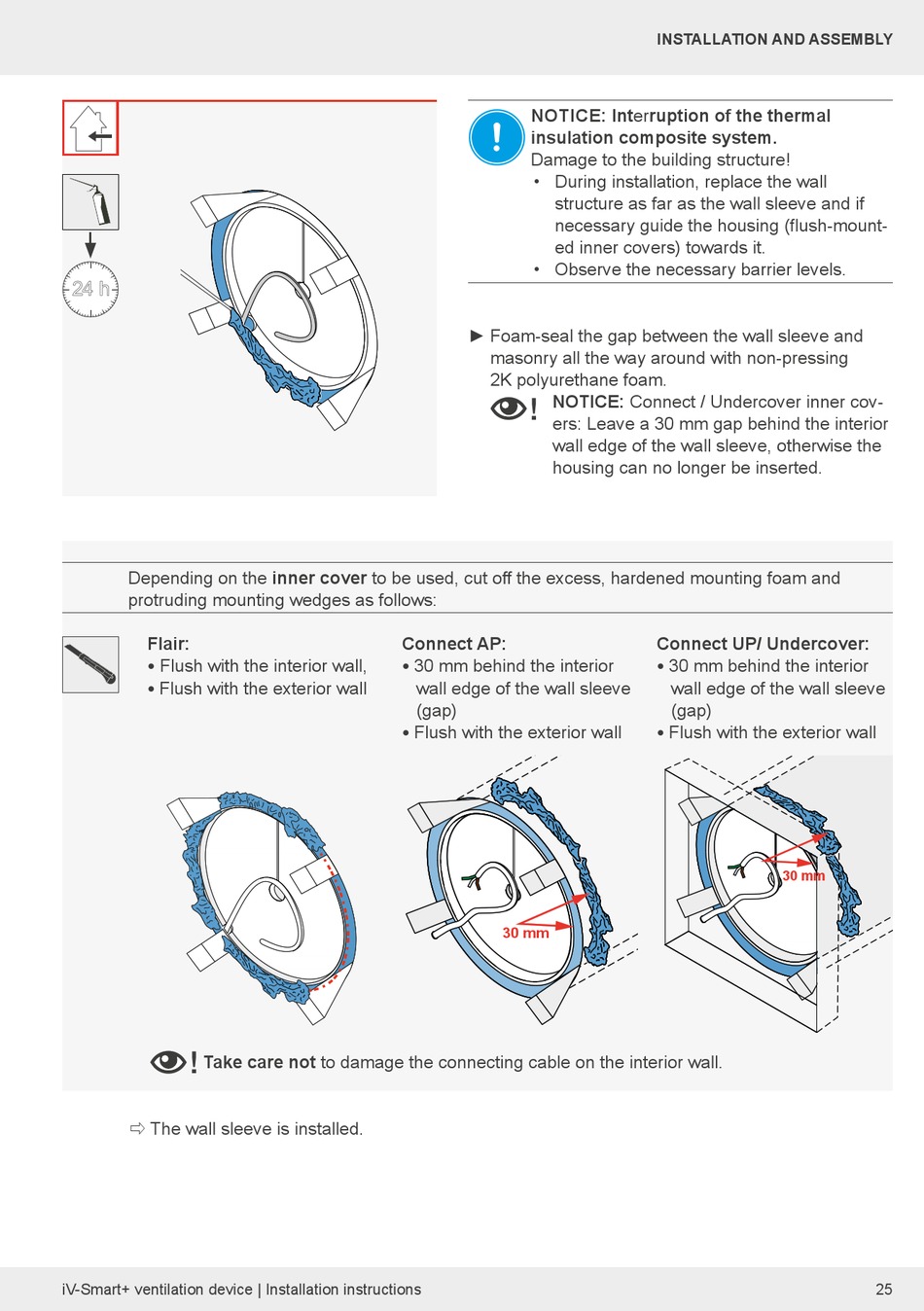

inVENTer iV-Smart Plus Installation Instructions Manual page 25

24 h
Depending on the inner cover to be used, cut off the excess, hardened mounting foam and
protruding mounting wedges as follows:
Flair:
Flush with the interior wall,
•
Flush with the exterior wall
•
!
Take care not to damage the connecting cable on the interior wall.
The wall sleeve is installed.

iV-Smart+ ventilation device | Installation instructions
NOTICE: Interruption of the thermal
insulation composite system.
Damage to the building structure!
• During installation, replace the wall
structure as far as the wall sleeve and if
necessary guide the housing (flush-mount-
ed inner covers) towards it.
• Observe the necessary barrier levels.
► Foam-seal the gap between the wall sleeve and
masonry all the way around with non-pressing
2K polyurethane foam.
NOTICE: Connect / Undercover inner cov-
!
ers: Leave a 30 mm gap behind the interior
wall edge of the wall sleeve, otherwise the
housing can no longer be inserted.
Connect AP:
30 mm behind the interior
•
wall edge of the wall sleeve
(gap)
Flush with the exterior wall
•
30 mm 30 mm
INSTALLATION AND ASSEMBLY
Connect UP/ Undercover:
30 mm behind the interior
•
wall edge of the wall sleeve
(gap)
Flush with the exterior wall
•
30 mm
