INSTALLATION AND ASSEMBLY
4 x
30
30

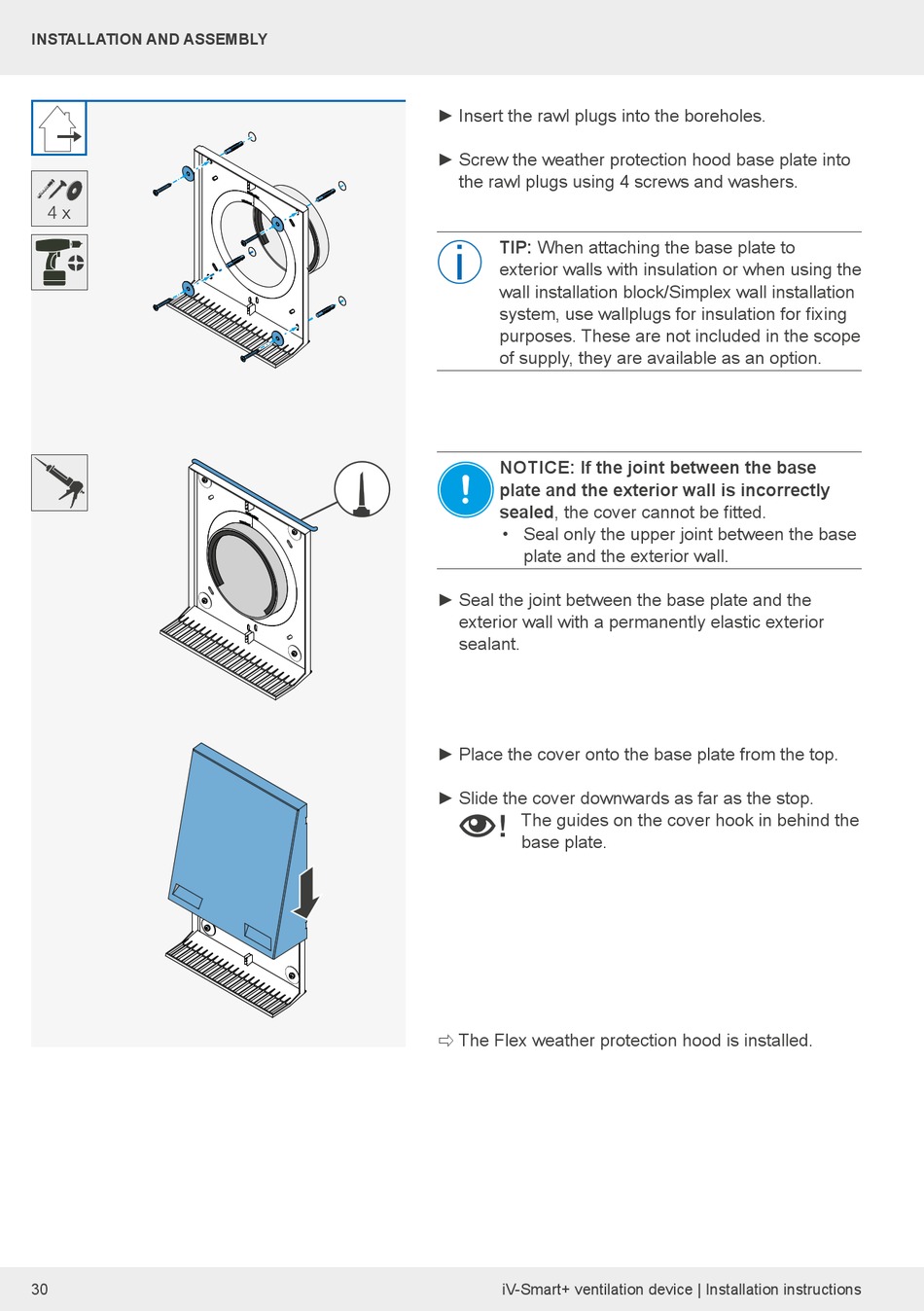

► Insert the rawl plugs into the boreholes.
► Screw the weather protection hood base plate into
the rawl plugs using 4 screws and washers.
i
TIP: When attaching the base plate to
exterior walls with insulation or when using the
wall installation block/Simplex wall installation
system, use wallplugs for insulation for fixing
purposes. These are not included in the scope
of supply, they are available as an option.
NOTICE: If the joint between the base
plate and the exterior wall is incorrectly
sealed, the cover cannot be fitted.
• Seal only the upper joint between the base
plate and the exterior wall.
► Seal the joint between the base plate and the
exterior wall with a permanently elastic exterior
sealant.
► Place the cover onto the base plate from the top.
► Slide the cover downwards as far as the stop.
!
The guides on the cover hook in behind the
base plate.
The Flex weather protection hood is installed.

