Lockly VISION ELITE Installation Manual page 8

Step 3

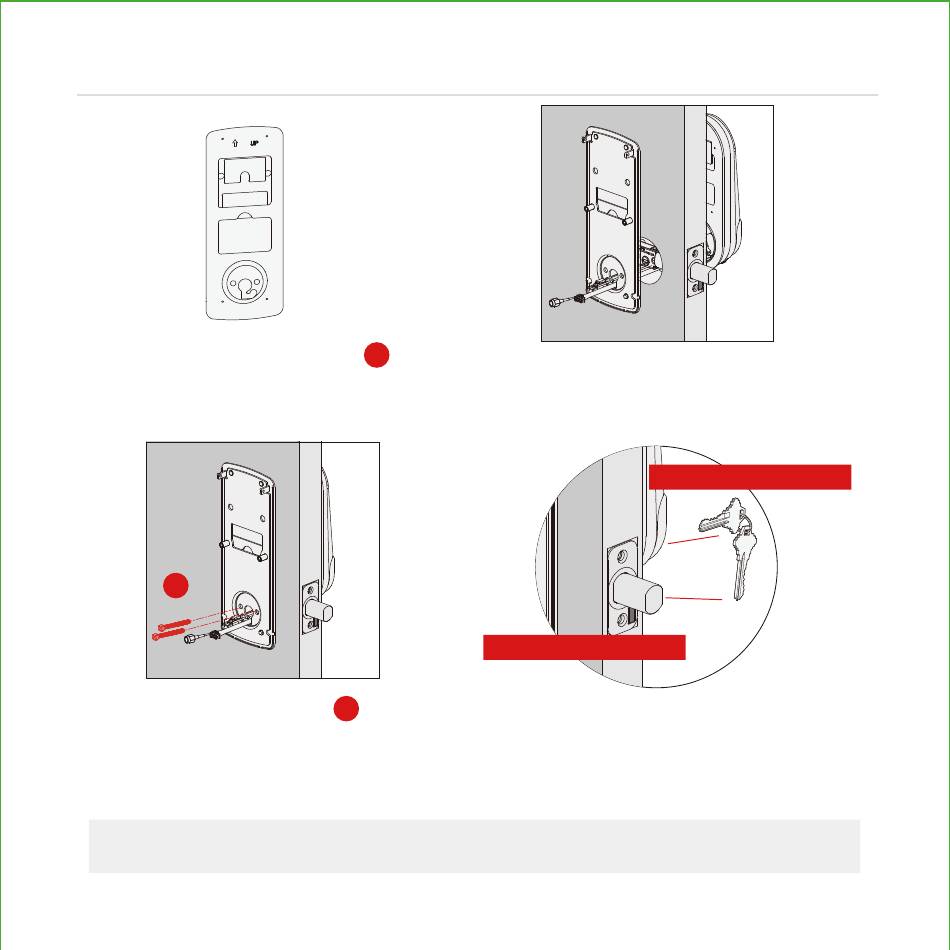

1: Check interior mounting plate
alignment to your door hole before
securing with adhesive strips.
F
2X
3: Insert and tighten by hand 2
located on the left and right of the
blade. Check alignment and tighten
with screwdriver until mounting plate is
securely placed on door.
TIP: when installing screws by hand, turn screws clockwise several turns then
counterclockwise one turn to ensure smooth threading and no cross threading.
D 2: Align and secure mounting plate with
adhesive strips. Guide connection cables
through the hole and secure to the lower
left notched hole.
Leave deadbolt extended
4: Use the key to ensure deadbolt locks and
F
screws
unlocks smoothly (no binding or rubbing).
IMPORTANT: when finished, leave the dead-
bolt extended and remove the key before
proceeding to the next step.
7
INSTALLING INTERIOR ASSEMBLY (G)
Remove key when finished
