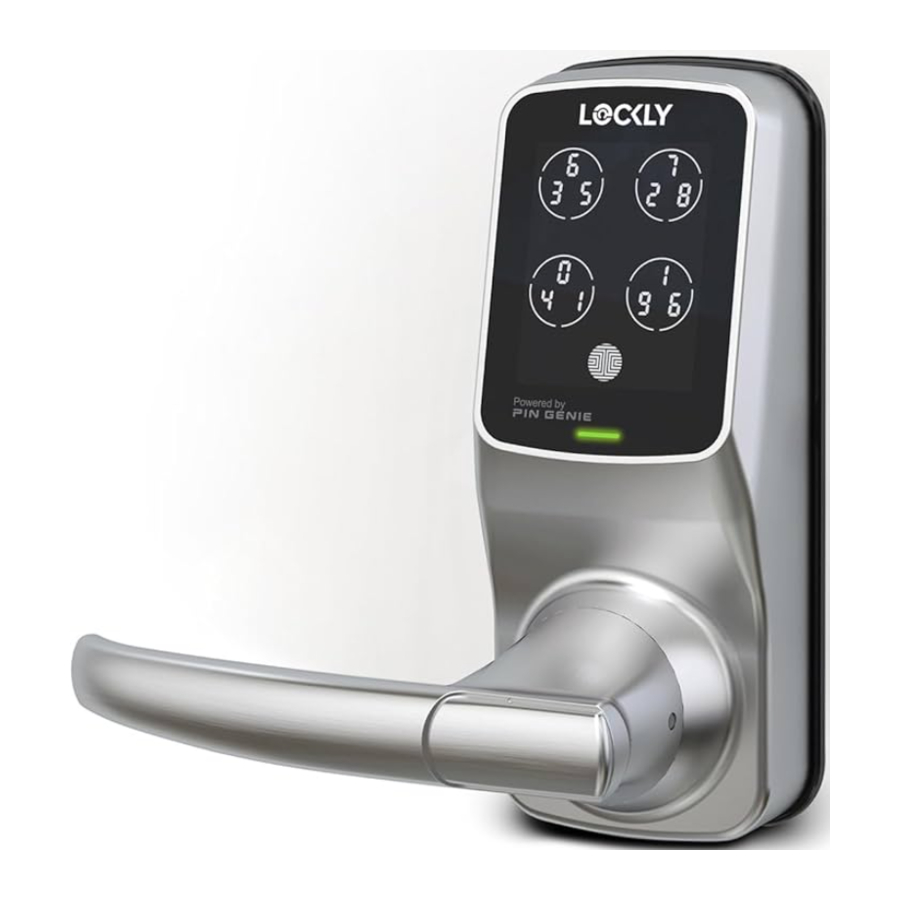

Lockly 6S - Door Lock Manual

Welcome!

This guide will walk you through step-by-step how to install and get your Lockly Model 6S up and running. Installation generally takes less than 30 minutes. If you have any questions please reference our online support at: Lockly.com/support or call (669) 500-8835 for help.
Reference installation parts overview foldout on back page

Preparation

To complete the installation you will need:

Drilling is not required to install the lock, and is optional. However if you are installing your lock on a brand new door, a drill is required if there are no holes prepared for lock installation.

Remove existing door hardware, latch or deadbolts before installing the new lock. Use provided template to bore new holes if needed.
Preparation

  1. Measure and confirm your door is between 1-3/8" - 2" (35mm - 50mm).
  2. Measure and confirm the hole in the door is 2-1/8"(54mm)
  3. Measure and confirm that the backset is between 2-3/8"(60mm) to 2-3/4"(70mm).
  4. Measure and confirm that hole in the door edge is 1" (25mm).


* Use goggles to protect your eyes if you need to drill door holes.

INSTALLING THE LOCKSET


INSTALLING THE LOCKSET - Step 1
Measure the distance between center of front door hole to the edge of your door. Push the shaft (a) to adjust the lockset to 2-3/8"(60mm) or 2-3/4"(70mm).
INSTALLING THE LOCKSET - Step 2

INSTALLING THE LOCKSET - Step 3
Facing the door exterior, install the lockset according to the in-swing or out-swing opening direction of your door.
Secure lockset with provided screws.

CHANGING HANDLE FOR RIGHT OR LEFT SWING DOORS

The lock ships with handle default for right in-swing or left out-swing door. Check the diagram below if you are unsure of you door orientation.

No need to change door handle orientation. Skip Step 2.
LEFT-IN SWING and RIGHT OUT-SWING DOORS require changing the door handle orientation.

Changing the Exterior Handle Orientation

  1. Insert key and rotate lock face so that the two white dots align as shown.
    Changing the Exterior Handle Orientation - Step 1
  2. Use the provided pin insert to push the metal pin located at the 3 o'clock of the the base handle, then the other pin at 9 o'clock position. Remove the handle once the pins are compressed.
    Changing the Exterior Handle Orientation - Step 2
  1. Rotate the handle 180° to the other side of the lock. Using your fingers, press the two pins located on the left and right side of the the lock to insert the handle back onto the lock.
    Changing the Exterior Handle Orientation - Step 3
  2. Confirm that your installation was complete by checking if the pins are flush against the handle, and has popped out. Adjust the handle accordingly to make sure the pins are fully decompressed and sits flush against the surface.
    Changing the Exterior Handle Orientation - Step 4
  3. Check that your handle works smoothly by giving it a turn up and down.
    Changing the Exterior Handle Orientation - Step 5
  4. Twist key back to horizontal position. The key can be taken out once it goes back to the horizontal position.
    Changing the Exterior Handle Orientation - Step 6

Changing the Interior Handle Orientation

  1. Remove handle retaining screw by turning counter-clockwise. Remove handle and rotate180° as shown.
    Changing the Interior Handle Orientation - Step 1
  2. Return handle retaining screw and secure by turning opposite direction (clockwise).
    Changing the Interior Handle Orientation - Step 2

PREPARING LOCK FOR INSTALLATION

If you drilled a hole in Preparation, use Slotted Barrel Extension and securely tighten with a flat head screwdriver by turning it clockwise onto the lock. If you did not drill a hole in Preparation, you can leave this pole removed.
PREPARING LOCK FOR INSTALLATION

  1. Install Spindle with the holes side into the base of the lock and align the holes locate in the 3 o'clock and 9 o'clock position.
  2. Insert locking pin in to the hole as shown above.
  3. Carefully bend the end of the locking pin with a needle nose pliers.
    Failure to bend the locking pin and turn the handle freely without obstruction will result to malfunction.
  4. Peel paper layer OFF the Adhesive tape and prepare for installation.

INSTALLING THE LOCK (EXTERIOR)

  1. Install the exterior lock as shown to the left by aligning the lock straight and passing the cable and attached rods through the lockset.
    INSTALLING THE LOCK (EXTERIOR) - Step 1
  2. Pass the Spindle through the center of the lockset, and the round rods through the sides in their respective holes. The cable should run underneath the lockset.
  3. Align the lock straight and press hard (if you use the Adhesive tape in step 3.4) to secure the top of the lock.
    INSTALLING THE LOCK (EXTERIOR) - Step 2

INSTALLING THE LOCK (INTERIOR)

  1. Insert Positioning Rods into the holes to the left and right of the Spindle . The holes are located at the 3 o'clock and 9 o'clock positions.
  2. Interior Mounting Plate will go against the interior side of your door. Remove the paper layer off of the Adhesive Tape and align the positioning rods on the bottom of the plate to the corresponding left and right holes. Install the side with the black plastic seal against the door.
    INSTALLING THE LOCK (INTERIOR) - Step 2
  1. Pull the cable from the lock exterior through the rectangular hole underneath the positioning rods and spindle. Secure the hole above the spindle with screws .
    INSTALLING THE LOCK (INTERIOR) - Step 3
  2. Remove the position rods and replace them with screws Tighten clockwise until the mounting plate is secure.
    INSTALLING THE LOCK (INTERIOR) - Step 4
  3. Plug cable that is coming through the door into the lock interior . Match red side of the plug with red on socket - insert tightly.
    INSTALLING THE LOCK (INTERIOR) - Step 5
  4. Align the square rod to the lock interior and attach the Interior lock to the Interior mounting plate. While you are doing so, gently push some of the excess cable through the rectangular hole into the door. Place the remaining cable against the interior side of the lock interior so the lock interior sits securely onto the mounting plate. Make sure the cable is away and not tangling with the square rod
    INSTALLING THE LOCK (INTERIOR) - Step 6
  5. Once the lock interior is flush against the mounting plate, secure the lock to the plate by screwing clockwise using provided screws .
  6. Insert 4 AA batteries into the lock by aligning the positive and negative orientation markings on the batteries to the battery chamber. Secure the battery cover by sliding the cover over the lock and turning the screw clockwise on top until tight.

INSTALLING THE DOOR STRIKE

Close your door to see if your lock closes securely with your existing door strike. If the lock closes securely, you may keep the existing door strike without removing the old hardware. However, it's recommended that you use our door strike.
INSTALLING THE DOOR STRIKE

DOWNLOAD THE LOCKLY APP

Congratulations! You have completed the Lockly Model 6S physical lock installation. To complete your setup, download the Lockly app from the App Store or on Google Play and follow below on-screen instructions.
Scan or visit Lockly.com/app

www.apple.com
play.google.com

Add more Smart to your Home

Secure Link Wi-Fi Hub
Add the optional Lockly Secure Link Wi-Fi Hub, together with the free Lockly app, it's easier than ever to securely control and manage your door from anywhere, anytime.

Real-time, monitoring, & status
Monitor open/closed door status with real-time alerts sent to your smart phone, no matter where you are.

Grant access, even when you're not home
Lock and unlock door from anywhere.

Hands-free voice control
Control and check your status using only your voice with Amazon Alexa or Google Assistant-enabled devices.

Available online at: Lockly.com/hub

INSTALLATION OVERVIEW & PARTS LIST

INSTALLATION OVERVIEW & PARTS LIST

This lock can be installed for both right swing and left swing doors. The lock ships ready for a right swing door installation. If you wish you to change the orientation for a left swing door, follow step by steps instructions as provided on Installation Manual.
