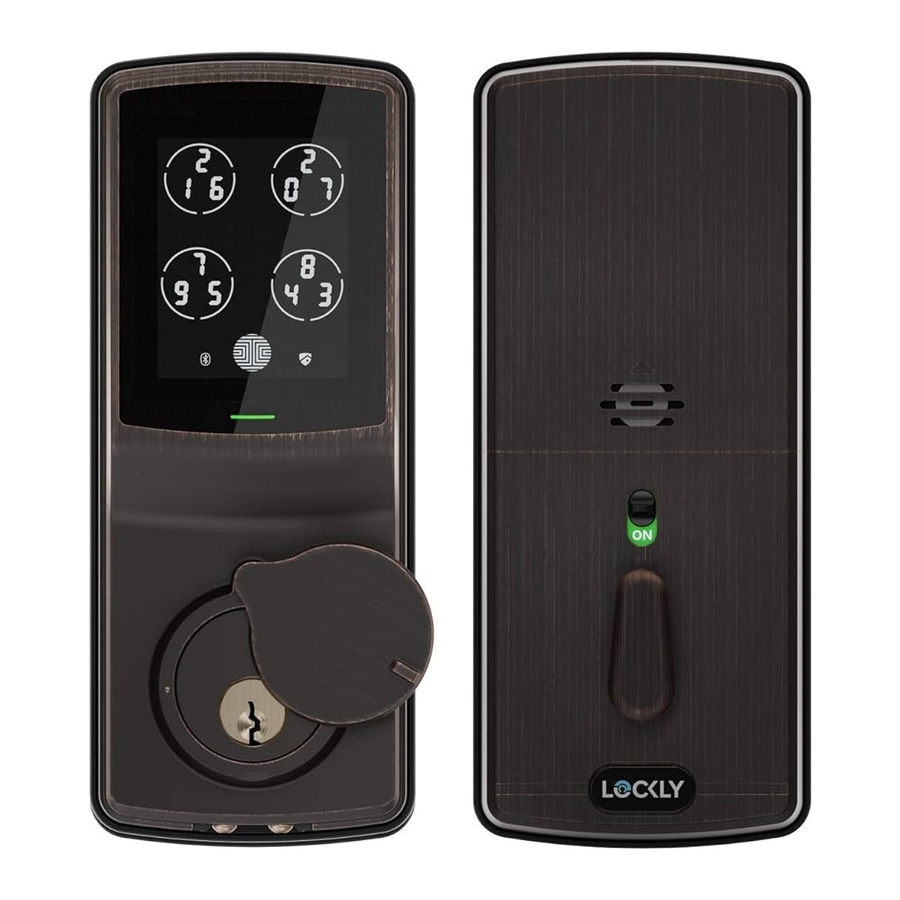

Lockly SECURE, PGD728, PGD728F, PGD728FC - Fingerprint Deadbolt Manual

Welcome!

This guide will walk you through step-by-step how to install and get your Lockly Secure up and running. Installation generally takes less than 30 minutes. If you have any questions please reference our online support at: Lockly.com/support or call (669) 500-8835 for help.
Reference installation parts overview foldout on back page

Preparation

To complete installation, you would need the following:

Prepare door and remove existing lock. If necessary, use provided Installation Template to prepare door.
Preparation
* Use goggles to protect eyes if you need to drill door holes.

ADJUST DEADBOLT AND INSTALL

  1. Deadbolt slot must align to the center of the door hole. Adjust as shown if needed.
    ADJUST DEADBOLT AND INSTALL - Step 1

The deadbolt comes set to 2-3/4" (70mm). Adjust length to 2-3/8" (60mm) if necessary. (wear gloves to protect from possible pinching).


Push the crank to extend the deadbolt


Hold the metal plate and twist the deadbolt body clockwise till it snaps to 2-3/8"


Deadbolt comes set at 2-3/4" (70mm). To return to default, while deadbolt is extend- ed, hold the metal plate and twist the deadbolt body counter-clockwise till it snaps to 2-3/4"

  1. Extend the deadbolt by inserting a flat-head screwdriver into the slot and turning clockwise.
    ADJUST DEADBOLT AND INSTALL - Step 2
  2. Insert the deadbolt into door edge hole, make sure that the right side is up and the slot is in the vertical position. Secure with 2 screws.
    ADJUST DEADBOLT AND INSTALL - Step 3

INSTALLING THE EXTERIOR ASSEMBLY

  1. To secure Exterior Assembly of lock, peel the cover off the adhesive strips
    *This hole (O) is for the optional Slotted Barrel Extension provided for stabilizing your lock. It will require drilling extra hole on your door (See template as provided). Alternatively, you may use the double-sided adhesive tape provided which serves the same purpose if you do not want to drill a hole. If you drilled a hole, securely tighten the post with a flathead screwdriver by turning it clockwise before mounting on your door.
    INSTALLING THE EXTERIOR ASSEMBLY - Step 1
  2. Peel film from adhesive strips and make sure torque blade is in the vertical position with the deadbolt extended. Place assembly and torque blade through the deadbolt slot and guide connection cables through the cross-bore hole under the deadbolt as shown. Complete mounting by aligning and securing until flush to exterior door surface.
    INSTALLING THE EXTERIOR ASSEMBLY - Step 2

INSTALLING THE INTERIOR ASSEMBLY (F)

  1. Check interior mounting plate alignment to your door hole before securing with adhesive strips.
  2. Align and secure mounting plate with adhesive strips. Guide connection cables through the hole and secure to the lower left notched hole.
  3. Insert and tighten by hand 2 screws located on the left and right of the blade. Check alignment and tighten with screwdriver until mounting plate is securely placed on door.
  4. Use the key to ensure deadbolt locks and unlocks smoothly (no binding or rubbing).

    when finished, leave the deadbolt extended and remove the key before proceeding to the next step.
    INSTALLING THE INTERIOR ASSEMBLY (F) - Step 1

TIP: when installing screws by hand, turn screws clockwise several turns then counterclockwise one turn to ensure smooth threading and no cross threading.

  1. Plug the cable coming through mounting plate into the interior assembly as shown. Tuck cable under eyelet hooks and route to the right on interior assembly .
    INSTALLING THE INTERIOR ASSEMBLY (F) - Step 2
  1. Before placing the interior assembly onto the mounting plate, ensure the thumb turn is vertical.
  2. Place the interior assembly against the mounting plate and make sure the torque blade is inserted to the thumb turn shaft.
  3. Secure the interior assem bly to mounting plate with 2 screws.

INSTALLING BATTERIES

  1. With door open and deadbolt fully extended, place ribbon inside compartment and insert 4 batteries (note correct -/+ polarity).
  2. After all batteries are installed, PRESS and HOLD the program button for 10S. The lock will automatically start self-check (release program button once check starts). The self-check process determines right or left swinging door and is very important to ensure correct installation.

    if lock is not properly installed it will open and close repeatedly.
    INSTALLING BATTERIES
  3. Once self-check completes ensure the lock operates smoothly by manually locking and unlocking the door using the thumb turn on the interior assembly. The deadbolt should operate smoothly without any interference or binding. If necessary, repeat step 2 and ensure that (a) the deadbolt was extended and (b) the torque blade was inserted vertically while the deadbolt was extended.
  4. Swipe your hand across touchscreen. The lock should close (lock). If the touchscreen is ON, touch , the lock should lock as well. If deadbolt bounces back or unlocks automatically it means something is not installed correctly. Go back and repeat step 2, same as above.
  5. Once self-check is complete, install battery cover (H), secure with screw on top (do not over tighten).

INSTALLATING DOOR STRIKE

Use the supplied door strike or use your existing as long as deadbolt operates smoothly without binding or catching.
INSTALLATING DOOR STRIKE

because doors and frames vary in design it may be necessary to make slight adjustments to your strike plate and/or dust box in order to ensure smooth deadbolt operation. This is very important. If the deadbolt is binding or catching in any way the lock will sound an alarm (rapid beeping) indicating it cannot close due to misalignment and/or excessive rubbing or binding.

DOWNLOAD LOCKLY APP

You have completed the Lockly Secure physical lock installation. To complete your setup, download the Lockly app from the App Store or on Google Play and follow on-screen instructions.
Scan or visit Lockly.com/app

www.apple.com
play.google.com

Add more Smart to your Home

Secure Link Wi-Fi Hub
Add the optional Lockly Secure Link Wi-Fi Hub, together with the free Lockly app, it's easier than ever to securely control and manage your door from anywhere, anytime.

Real-time, monitoring, & status
Monitor open/closed door status with real-time alerts sent to your smart phone, no matter where you are.

Grant access, even when you're not home
Lock and unlock door from anywhere.

Hands-free voice control
Control and check your status using only your voice with Amazon Alexa or Google Assistant-enabled devices.


Available online at: Lockly.com/hub

INSTALLATION OVERVIEW AND PARTS LIST

INSTALLATION OVERVIEW AND PARTS LIST
Lockly Secure can be fitted for both right swing doors and left swing doors.

Parts List
Labeled As Description
A Keys
B Exterior Assembly
C Exterior
D Mounting Plate
E PM5 Screw
F Interior Assembly
G PM5×60mm Screw
H Battery Cover
I PM4*12MM Screw
J Deadbolt
K KA4*20MM Screw
L Strike Plate
N Dust Box
U Activation Card
V RFID Card (for PGD728FC only)
