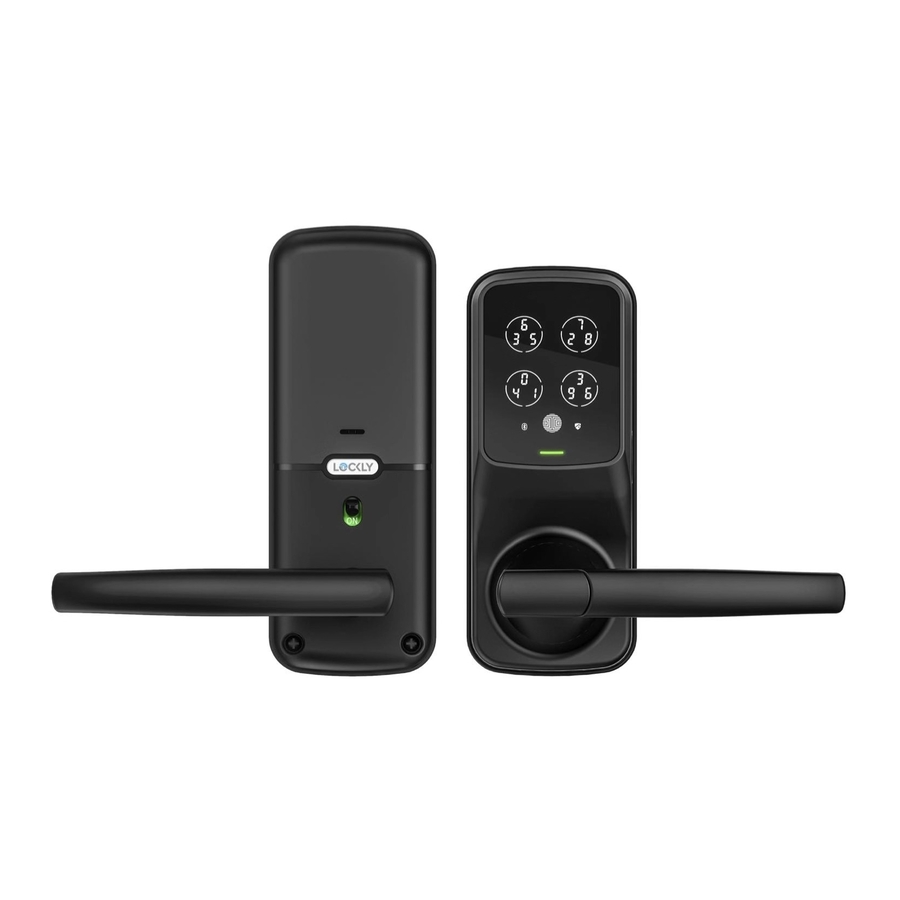

- Page 1 SECURE I SECURE PLUS I SECURE PRO LATCH EDITION INSTALLATION MANUAL...
- Page 2 INSTALLATION OVERVIEW & PARTS LIST PM5X25mm, Door thickness 1-19/50"~1-69/100"(35~43mm) PM5X35mm, Door thickness1-69/100"~1-97/100"(43~50mm) *NOTE: You can either use T or U to stabilize the exterior part. T requires drilling an extra hole. Use provided Template for drilling instructions if needed. Tool for changing handle orientation Exterior 2-3/8"...
- Page 3 GETTING STARTED - YOU WILL NEED All the parts you need to install the Lockly Secure Latch Edition is included in your package. However, we do need a few tools. Required Tools Optional Flathead Screwdriver Phillips Screwdriver Screwdriver with drill bits...
-
Page 4: Step 1: Preparing The Door
STEP 1: PREPARING THE DOOR If you are installing the Lockly Secure smart lock on an existing door, please remove existing door hardware and latch or bolts before installing the new lock. You can remove most existing door locks with a screwdriver. - Page 5 " - 2" (35mm - 50mm) Measure and confirm your door is between 1 " - 2" (35mm - 50mm). Measure and confirm the hole in the door is 2 " (54mm). 1" 25mm " Measure and confirm that the 54mm backset is between 2 "...
- Page 6 2.2 Install the lockset with the slanted side of the latch facing towards the closing direction. Example 2 Example 1 Slanted side Facing Door Frame when closing Slanted side Facing Door Frame when closing 2.3 Secure lockset with provided screws, labelled G (Step 2.1) as shown.
- Page 7 STEP 3: CHANGING HANDLE ORIENTATION FOR RIGHT OR LEFT SWING DOORS How to determine if your door is a Right Swing or Left Swing door? While facing the door, if the door hinges are on the right side of the door, you have a Right Swing Door.
- Page 8 Use the provided Clamping tool (R) to push in the two metal pins at the base of the lock handle, located at the 3 o’clock and 9 o’clock positions, and remove the handle once the pins are compressed. Rotate the handle 180 degrees to the other side of the lock.
- Page 9 Confirm that your installation was complete by checking if the pins are flush against the handle, and has popped out. Adjust the handle accordingly to make sure the pins are fully decompressed and sits flush against the surface. Check that yor handle works smoothly by giving it a turn up and down.
- Page 10 Changing the Interior Handle Orientation Remove the screw by turning counter clockwise and rotate the handle 180° in the direction of the arrow as shown. Securely screw clockwise as shown to complete your handle orientation change.
- Page 11 STEP 4: PREPARING LOCK FOR INSTALLATION If you drilled a hole in Step 1, use pole ( Part U ) and securely tighten with a flat head screw- driver by turning it clockwise onto the lock. If you did not drill a hole in step 1, you can leave this pole removed.
- Page 12 (if you use the 3M tape in and the round rods through the step 4.4) to secure the top of the sides in their respective holes. The lock. cable should run undeneath the...
- Page 13 STEP 6: INSTALLING THE LOCK (INTERIOR) Insert positioning rods (Part V) Interior into the the holes to the left and right of the square rod (Part C). The holes are located at the 3 o’clock and 9 o’clock positions. Part LK (Interior Mounting Plate) will go against the interior side of your door.
- Page 14 *Secure top with M1 or M2 mounting plate is secure. * If you have drilled a hole on the top in Step 1, please secure the hole with part M1 or M2 depending on your door thickness. Skip this if no hole was drilled in Step 1.
- Page 15 Plug the cable that is coming through the door into the Interior lock. Make sure you match the direction of the plug correctly and matching the red side of the plug with the red side on the lock. Align the square rod to the Interior lock and attach the Interior lock to the Interior mounting plate.
- Page 16 Once the Interior lock is flush against the mounting plate, secure the lock to the P (3X) plate by screwing clockwise by using supplied screws (Part P). Insert 4 AA batteries into the lock by matching the postive (+) and negative (-) orientation markings on the batteries to the battery chamber.
- Page 17 STEP 7: INSTALLING THE DOOR STRIKE Close your door to see if your lock closes securely with your existing door strike. If the lock closes securely, you may keep the existing door strike without removing the old hardware. However, it’s recommended that you use our door strike. DOOR STRIKE INSTALLATION Make sure the slanted side of Part F1/F2 is closing against the slanted part of Part H before fixing it on to door frame.
-
Page 18: Step 8: Finishing Installation
STEP 8: FINISHING INSTALLATION You’re all done! You have completed the Lockly Secure physical lock installation and now you’re ready to get the lock set up. Download the Lockly app from the iOS or Google Play Store to complete your lock set up. - Page 19 For an online version of this installation guide and videos, visit: http://lockly.com/help...
